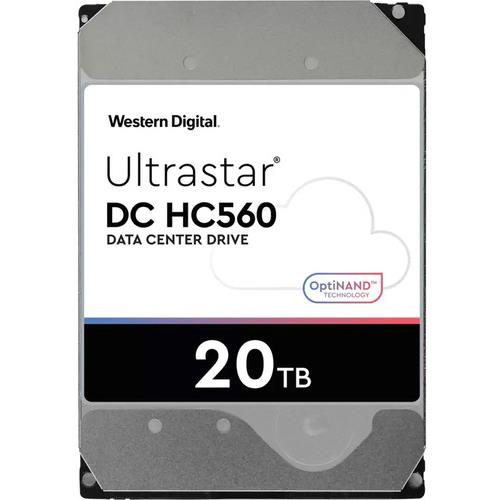

- Western Digital WUH722020ALE6L4 Hard Drive 20TB SATA3 6Gb/s 7200 RPM 3.5in - Ultrastar DC HC560 Series
Western Digital WUH722020ALE6L4 Hard Drive 20TB SATA3 6Gb/s 7200 RPM 3.5in - Ultrastar DC HC560 Series
Cloud and hyperscale storage Applications
Design delivers outstanding power efficiency
3.5-Inch Helium Platform Data Center Hard Drives
HDDs allow more cost-efficient storage in the same footprint
Hard Drive 20TB SATA 6Gb/s 7200 RPM 3.5in 512MB Cache 512e Ultrastar DC HC560 - OEM
Reimagining the HDD for Exponential Data Growth
Hyperscale cloud, CSPs, enterprises, smart video surveillance partners, NAS suppliers and more, need storage solutions to meet the exponential growth in data creation. When it comes to cost-effective storage of data at scale, hard disk drives (HDDs) continue to play a central role. IDC projects that in 2025, HDDs will represent 82% of storage capacity sold to the enterprise market*. HDDs deliver the capacity, performance, and reliability needed to store vast amounts of data today and well into the future. Investments in HDD technology remain critical to supporting worldwide data growth.
Product Highlights
Standard 3.5-inch form factor
ePMR & CMR technology works with all capacity enterprise applications & environments
OptiNAND for highest capacities
Reliable, field-proven, 7th generation HelioSeal design delivers outstanding power efficiency
Industry-leading HDD technologies, OptiNAND, EAMR, TSA, HelioSeal
Applications
Cloud and hyper-scale storage
Massive scale-out (MSO), high-density data centers
Distributed file systems
Bulk storage using object storage solutions like Ceph and OpenStack Swift
Primary and secondary storage for Apache Hadoop for big data analytics
Extra Specifications for Western Digital WUH722020ALE6L4 Hard Drive 20TB SATA3 6Gb/s 7200 RPM 3.5in - Ultrastar DC HC560 Series
| Main Specifications | ||
| Device Type | Data Center Hard Drive - 512e | |
| Capacity | 20TB | |
| Form Factor | 3.5-inch | |
| Interface | SATA 6Gb/s | |
| Dimensions (WxDxH) | Dimensions (width x depth, mm) 101.6 (+/-0.25) x 147 - Z-Height (mm) 26.1 | |
| Weight | 690 (g, max) | |
| Hard Drive | ||
| Buffer Size | 512MB | |
| Spindle Speed | 7200RPM | |
| Performance | ||
| Average Latency | 4.16 ms | |
| Interface Transfer Rate | 600 (MB/sec, max) | |
| Max Sustainable Transfer Rate | 269/257 | |
| Load / Unload Cycles | 600,000 | |
| Reliability | ||
| Availability (hrs/day x days/wk) | 24x7 | |
| Power | ||
| Power Consumption | 0.305 / 0.29 | |
| Miscellaneous | ||
| MTBF | 2.5M hours | |
| Warranty: | 5 years |
| Coverage: | Replacement or repair |
| Average Service Time: | 1-2 weeks |
