- Supermicro SYS-7048R-TR Tower Barebone Dual Intel Processor
Supermicro SYS-7048R-TR Tower Barebone Dual Intel Processor
• Cloud and Virtualization needs
• Compute Intensive Application
• Database Processing and Storage
• High Availability Storage
• Mission-critical Applications

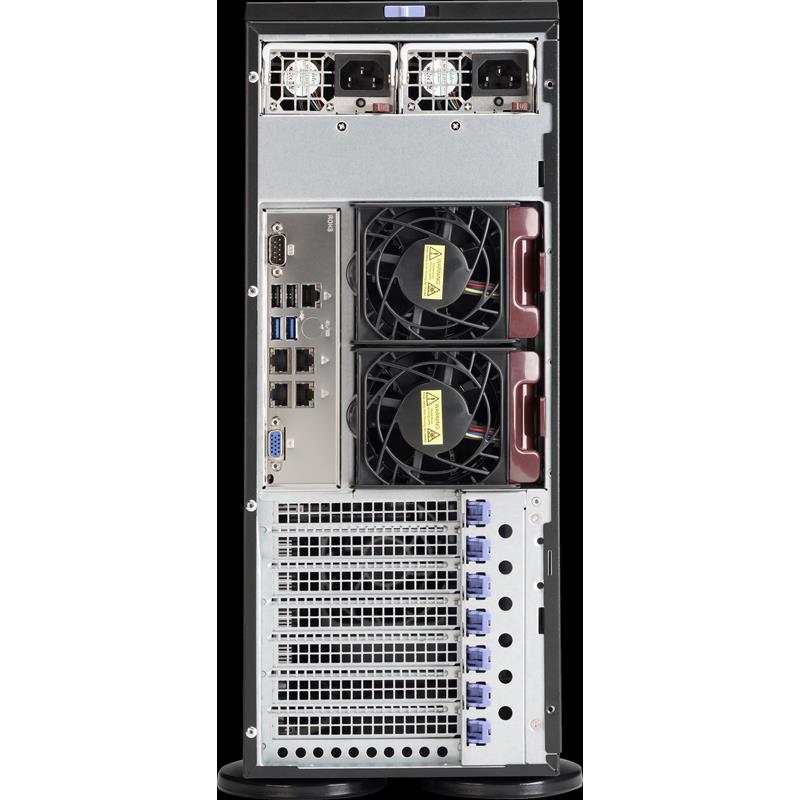

Server Barebone Tower / 4U for Dual Intel Xeon processor E5-2600 v4/v3 families - Supports up to 2TB DDR4 ECC 3DS LRDIMM up to 2400MHz in 16x 288-pin sockets - On-Board : SATA3 6Gbps Controller (RAID 0, 1, 5, 10), IPMI 2.0, Intel i350 2x Gigabit Ethernet, VGA - Includes : 8x 3.5in Hot-Swap SAS/SATA Drive Trays, 2x 5.25in Peripheral Drive Bays (for optional devices), 1x 5.25in Bay that fits 3.5in bay devices, 2x Heatsinks (SNK-P0048PS), 920W Redundant 80 Plus Platinum Certified Power Supply (2x PWS-920P-1R) w/ PMBus and I2C, MBD-X10DRi Motherboard, CSE-745TQ-R920B 4U Chassis - (Black)
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2. Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16x DIMM slots
3. 3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 slots
4. Intel® i350 Dual port GbE LAN
5. Intel C612 controller for 8 SATA3 ports; RAID 0, 1, 5, 10
6. 8x 3.5" Hot-swap SATA3 HDD Bays
7. 920W Redundant Power Supplies Platinum Level (94%)
Extra Specifications for Supermicro SYS-7048R-TR Tower Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super X10DRi | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 1TB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA 3.0 (6Gbps) with RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1x Realtek RTL8201N PHY (dedicated IPMI) | ||
| Intel® i350 Dual Port Gigabit Ethernet | ||
| Video | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA | 8x SATA3 (6Gbps) ports | |
| 2x SATA3 powered ports that support SATA DOM | ||
| LAN | 1x RJ45 Dedicated IPMI LAN port | |
| 2x RJ45 Gigabit Ethernet LAN ports | ||
| USB | Rear USB: 2x USB 3.0 + 2x USB 2.0 | |
| Front USB: 2x USB 2.0 | ||
| USB Header: 2x 3.0, 2x 2.0, 1x Type A | ||
| Video | 1x VGA port | |
| Serial Port / Header | 1x COM/Serial | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| Management | ||
| Software | Watch Dog | |
| Intel Node Manager | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| NMI, SPM, SUM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI / APM Power Management | ||
| Chassis | ||
| Form Factor | 4U Rackmountable / Tower | |
| Optional Rackmount Kit | ||
| Model | CSE-745TQ-R920B | |
| Dimensions and Weight | ||
| Height | 17.2" (437mm) | |
| Width | 7.0" (178mm) | |
| Depth | 25.5" (648mm) | |
| Package | 24" (H) x 14" (W) x 26.5" (D) | |
| Weight | Net Weight: 56 lbs (25.6 kg) | |
| Gross Weight: 73.5 lbs (33.6 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Power Fail LED | ||
| Hard drive activity LED | ||
| 2x Network activity LEDs | ||
| System Overheat LED | ||
| Ports | 2x USB Ports | |
| Expansion Slots | ||
| PCI-Express | 3x PCI-E 3.0 x16 (Full-height, Full-length) | |
| 3x PCI-E 3.0 x8 (Full-height, Full-length) | ||
| Drive Bays | ||
| Hot-swap | 8x 3.5" Hot-swap SAS/SATA Drive Trays | |
| Peripheral Bay(s) [90 o Rotatable] | 2x 5.25" Peripheral Drive Bays | |
| 1x 5.25" Bay that fits 3.5" bay devices | ||
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | SAS / SATA Hard Drive Backplane w/AMI MG9072 | |
| System Cooling | ||
| Fans | 3x 8cm hot-swap redundant PWM cooling fans | |
| 2x 8cm hot-swap exhaust Fans and air shroud | ||
| Power Supply with Power Distributor | ||
| Power Supply with Power Distributor | 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
| AC Input | 100-240 V, 50-60 Hz, 11-4.5 Amp | |
| DC Output | 4 Amp @ +5V standby | |
| 75 Amp @ +12V | ||
| Certification | Platinum Certified | |
| PC Health Monitoring | ||
| CPU | 6-Phase-switching voltage regulator | |
| Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Total of eight fan headers supporting up to 8 fans | ||
| 8x fans with tachometer status monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| Thermal Control for 8x fan connectors | ||
| LED | CPU / System Overheat LED | |
| Suspend static indicator LED | ||
| UID/Remote LED | ||
| Other Features | Chassis intrusion detection | |
| Chassis intrusion header | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 7048R-TR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRi | 1 | Super X10DRi Motherboard | |
| Motherboard / Chassis | CSE-745TQ-R920B | 1 | 4U Chassis | |
| Backplane | CSE-SAS-743TQ | 1 | 743 SAS BACKPLANE W/AMI MG9072 | |
| Cable 1 | CBL-0473L | 8 | SATA,INT,ROUND,ST-ST,21CM,30AWG | |
| Cable 2 | CBL-CDAT-0661 | 2 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Manual | MNL-1573-QRG | 1 | SYS-7048R-TR/SYS-7048R-TRT, QRG,HF,RoHS/REACH,PBF | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Heatsink / Retention | SNK-P0048PS | 2 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB | |
| Power Supply | PWS-920P-1R | 1 | 1U REDUNDANT 920W PMBus 94% EFFICIENCY |
