| Motherboard |
| Motherboard | Super X10DRH-C |
| Processor/Cache |
| CPU | Dual Socket R3 (LGA 2011) |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * |
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | † BIOS version 2.0 or above is required |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
| System Memory |
| Memory Capacity | 16x 288-pin DDR4 DIMM slots |
| Up to 2TB † ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | LRDIMM: 64GB, 32GB |
| 3DS LRDIMM: 128GB |
| RDIMM: 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices |
| Chipset | Intel® C612 chipset |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| SAS | Broadcom 3108 SAS3 (12Gbps) controller; HW RAID 0, 1, 5, 6, 10, 50, 60 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| ASPEED AST2400 BMC |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Intel® i350 Gigabit Ethernet |
| Graphics | ASPEED AST2400 BMC |
| Input / Output |
| SATA | 8 SATA3 (6Gbps) ports |
| SAS | 8 SAS3 (12Gbps) ports |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (2 rear) |
| 4 USB 2.0 ports (2 rear, 2 front) |
| 1 USB Type A |
| Video | 1 VGA Connector |
| Serial Port / Header | 2 COM Ports (1 rear, 1 front) |
| 2 Fast UART 16550 serial |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS |
| BIOS Features | USB Keyboard support |
| Plug and Play (PnP) |
| PCI 2.2 |
| DMI 2.3 |
| RTC (Real Time Clock) Wakeup |
| SMBIOS 2.3 |
| Hardware BIOS Virus protection |
| ACPI 1.0 / 2.0 |
| UEFI |
| APM 1.2 |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-213AC-R920LPB |
| Dimensions and Weight |
| Height | 3.5" (89mm) |
| Width | 17.2" (437mm) |
| Depth | 24.8" (630mm) |
| Package | 10.5" (H) x 26.5" (W) x 38" (D) |
| Weight | Net Weight: 38 lbs (17.4 kg) |
| Gross Weight: 63 lbs (28.8 kg) |
| Available Color | Black |
| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LEDs | Power LED |
| Hard drive activity LED |
| 2 Network activity LEDs |
| System Overheat LED / Fan fail LED / UID LED |
| Expansion Slots |
| PCI-Express | 1 PCI-E 3.0 x16 |
| 6 PCI-E 3.0 x8 (Low-profile AOC) |
| Drive Bays |
| Hot-swap | 8x 2.5" SAS3 and 8x 2.5" SATA3 Hot-swap drive bays |
| Peripheral | Optional DVD-ROM drive supports 1x slim or 1x 5.25" DVD drive |
| System Cooling |
| Fans | 3 heavy duty 8cm fans with optimal fan speed control |
| Power Supply with Power Distributor |
| Power Supply with Power Distributor | 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C |
| AC Input | 100-240 V, 50-60 Hz, 11-4.5 Amp |
| DC Output | 4 Amp @ +5V standby |
| 75 Amp @ +12V |
| Certification | Platinum Certified |
| PC Health Monitoring |
| CPU | CPU Core 6-Phase-switching voltage regulator |
| Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. |
| FAN | Status monitor for speed control |
| Status monitor for on/off control |
| Low noise fan speed control |
| Total of five 4-pin PWM fans |
| 5x fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Thermal Monitor 2 (TM2) support |
| PECI |
| Thermal Control for 10x Fan Connectors |
| PSU I 2 C temperature sensing logic |
| LED | Power Fail / Overheat LED |
| Suspend-state Indicator LED |
| UID LED |
| Other Features | SDDC Support |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Product SKUs |

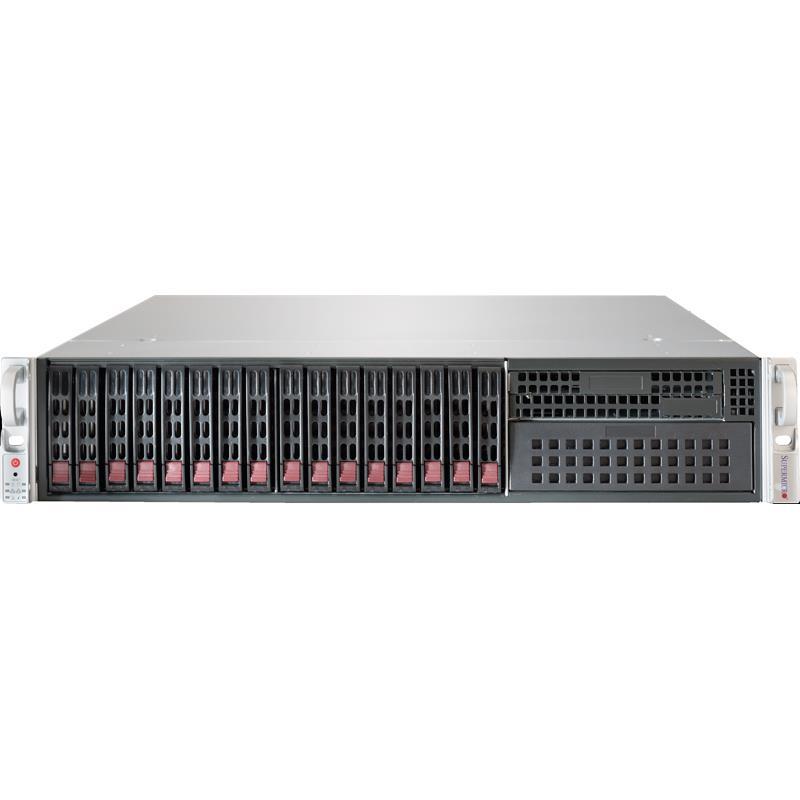

| Product SKUs | SuperServer 2028R-C1R (Black) |
