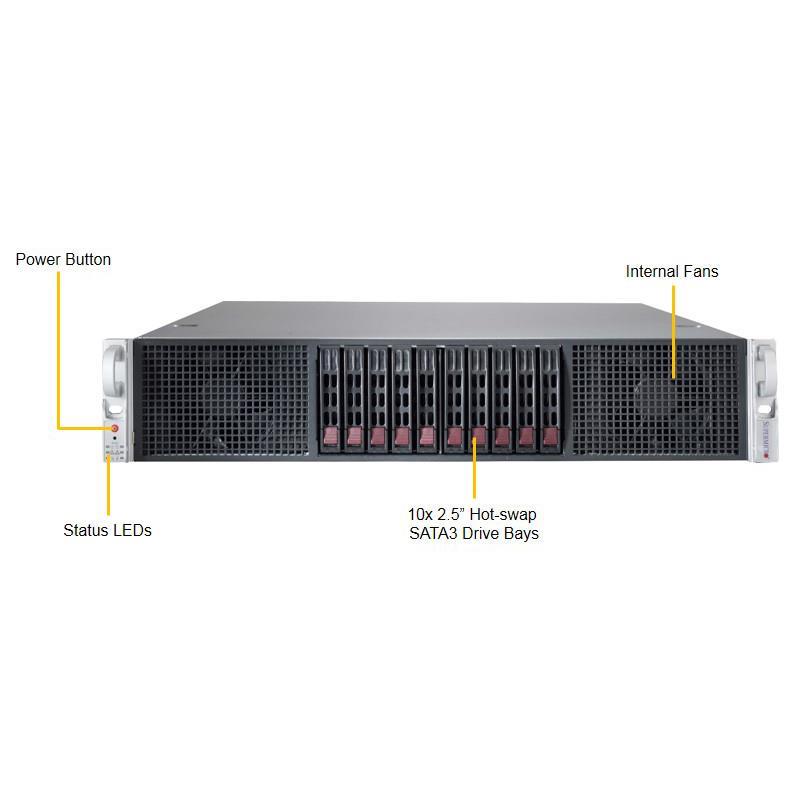

Supermicro SYS-2028GR-TRH 2U Barebone Dual Intel Processor
• Up to 6 NVIDIA GPU
Server Barebone 2U for Dual Intel Xeon processor E5-2600 v4/v3 family, GPU/Xeon Phi Support K1/K2/K10/K40/K80/M40/M60/Xeon Phi - Supports up to 2TB DDR4 ECC LRDIMM up to 2400MHz in 16x 288-pin sockets - On-Board: SATA3 6Gbps ( RAID 0, 1, 5, 10), IPMI 2.0, Intel i350 2x Gigabit Ethernet, VGA - Includes: 6x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards, option), 1x PCI-E 3.0 x8 (in x16) low-profile slot, 10x 2.5in Hot-swap drive bays, 4x Riser Cards (1x RSC-G2B-A66, 1x RSC-G2F-A66, 1x RSC-G2FR-A66, 1x RSC-R2UG-E16R-X9), 2x Heatsinks (1x SNK-P0047PS and 1x SNK-P0048PS), 2000W Redundant 80 Plus Platinum Power Supply (2x PWS-2K03P-1R), X10DRG-H Motherboard and SC218GH-R2K03B 2U Chasssis (Black)
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2. Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16 DIMM slots
3. 6 PCI-E 3.0 x16 slots (GPU/MIC, opt.), 1 PCI-E 3.0 x8 (in x16) low-profile slot
4. Intel® i350 Dual-Port GbE LAN
5. 10 Hot-swap 2.5" SATA Drive Bays
6. 2000W Redundant Power Supplies Platinum Level (94%+)
7. 5 heavy duty cooling fans
8. Smart server management tools
Extra Specifications for Supermicro SYS-2028GR-TRH 2U Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super X10DRG-H | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 1TB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| Intel C612 Controller | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Intel® i350 Dual Port Gigabit Ethernet | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 4 USB 3.0 ports (2 rear, 2 via header) | |
| 2 USB 2.0 ports (2 via headers) | ||
| Video | 1 VGA Connector | |
| Serial Port | 1 Serial header | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| DMI 2.3 | ||
| RTC (Real Time Clock) Wakeup | ||
| SMBIOS 2.3 | ||
| Hardware BIOS Virus protection | ||
| ACPI 1.0 / 2.0 | ||
| UEFI | ||
| APM 1.2 | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-218GH-R2K03B | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.2" (437mm) | |
| Depth | 31" (787mm) | |
| Package | 26.5" (H) x 11" (W) x 44.5" (D) | |
| Weight | Net Weight: 39.5 lbs (17.9 kg) | |
| Gross Weight: 54 lbs (24.5 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| 2 Network activity LEDs | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x8 (in x16) low-profile slot | |
| 6 PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards, option) | ||
| Drive Bays | ||
| Hot-swap | 10 Hot-swap 2.5" drive bays | |
| System Cooling | ||
| Fans | 5 heavy duty 8cm fans with optimal fan speed control | |
| Power Supply | ||
| Power Supply | 2000W 1U Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W/1800W/1980W/2000W | |
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| Input | 200-220Vac / 10-9.5A / 50-60Hz | |
| 220-230Vac / 10-9.8A / 50-60Hz | ||
| 230-240Vac / 10-9.8A / 50-60Hz | ||
| 100-120Vac / 12.5-10.5A / 50-60Hz | ||
| 200-240Vac / 10-9.8A (UL/cUL only) | ||
| 200-240Vdc / 10-9.1A (CCC only) | ||
| +12V | Max: 83.3A / Min: 0.1A (100-120Vac) | |
| Max: 150A / Min: 0.1A (200-220Vac) | ||
| Max: 165A / Min: 0.1A (220-230Vac) | ||
| Max: 166.7A / Min: 0.1A (230-240Vac) | ||
| Max: 166.7A / Min: 0.1A (200-240Vac) (UL/cUL only) | ||
| 12V SB | Max: 3.5A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Platinum Level [ Test Report ] | |
| [ Test Report ] | ||
| PC Health Monitoring | ||
| CPU | 5 Phase-switching voltage regulator | |
| Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. | ||
| FAN | Status monitor for speed control | |
| Status monitor for on/off control | ||
| Low noise fan speed control | ||
| Total of five 4-pin PWM fans | ||
| 5 fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| Thermal Control for 10x Fan Connectors | ||
| PSU I 2 C temperature sensing logic | ||
| LED | Power Fail / Overheat LED | |
| Suspend-state Indicator LED | ||
| UID LED | ||
| Other Features | SDDC Support | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 2028GR-TRH (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRG-H | 1 | Super X10DRG-H Motherboard | |
| Motherboard / Chassis | CSE-218GH-R2K03B | 1 | 2U Black SC218G Chassis | |
| Backplane | BPN-SAS-218A | 1 | 10-port 2U (GPU chassis) SAS 6Gbps direct-attached backplane, support up to 10x 2.5-inch SAS/SATA HDD/SSD | |
| Cable 1 | CBL-0294L-02 | 2 | (EOL)30AWG 58CM IPASS TO 4 SATA W/SB CROSS OVER | |
| Cable 2 | CBL-0484L | 2 | SATA,INT,ROUND,ST-ST,55CM,30AWG | |
| Cable 3 | CBL-PWEX-0582 | 6 | 8 pin to two 6+2 pin 12V GPU power cable, 30 cm 16/20 AWG, 10A/pin(16AWG), 6A/pin(20AWG), -25~85C, RoHS/REACH | |
| Cable 4 | CBL-0460L | 1 | 8 Pin to Two 4 Pin Backplane Power Ext. 28/22cm. 18AWG | |
| Cable 5 | CBL-0157L | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,40CM,28AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Manual | MNL-1626-QRG | 1 | SYS-2028GR-TR(T)/TRH(T), QRG,HF,RoHS/REACH | |
| Riser Card | RSC-G2FR-A66 | 1 | RSC-G2FR-A66-O-P | |
| Riser Card | RSC-G2F-A66 | 1 | RSC-G2F-A66-O-P | |
| Riser Card | RSC-G2B-A66 | 1 | RSC-G2B-A66 | |
| Riser Card | RSC-R2UG-E16R-X9 | 1 | RSC-R2UG-E16R-X9 | |
| Heatsink / Retention | SNK-P0048PS | 1 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB | |
| Heatsink / Retention | SNK-P0047PS | 1 | 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB | |
| Power Supply | PWS-2K03P-1R | 2 | 1U 2000W Redundant Power Supply Platinum 73.5mm width.,RoHS/REACH |
