Supermicro SYS-6018R-MTR 1U Barebone Dual Intel Processor

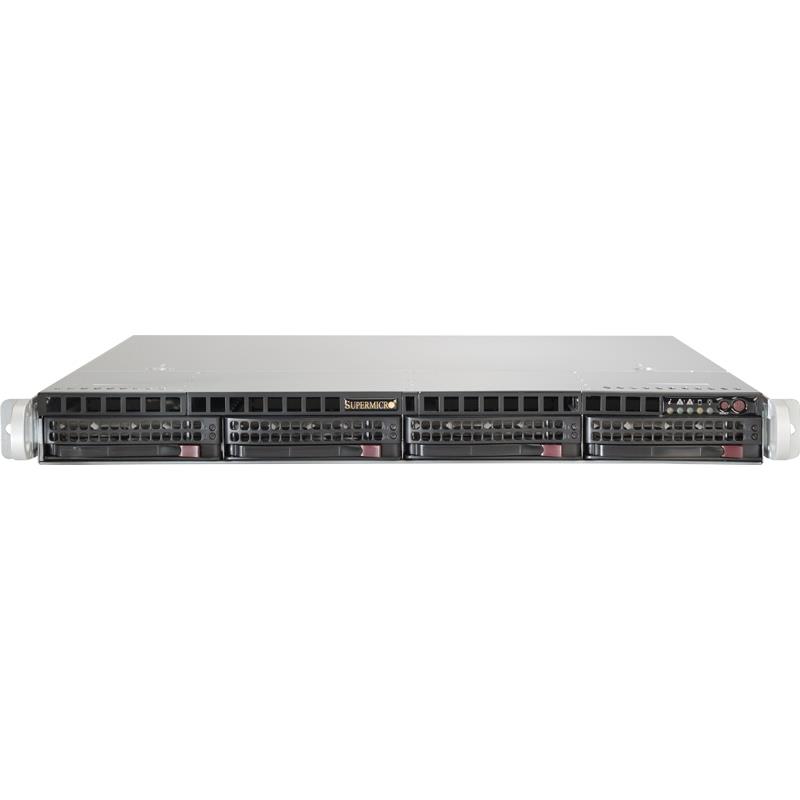

Server Barebone 1U - Dual Xeon E5-2600v3

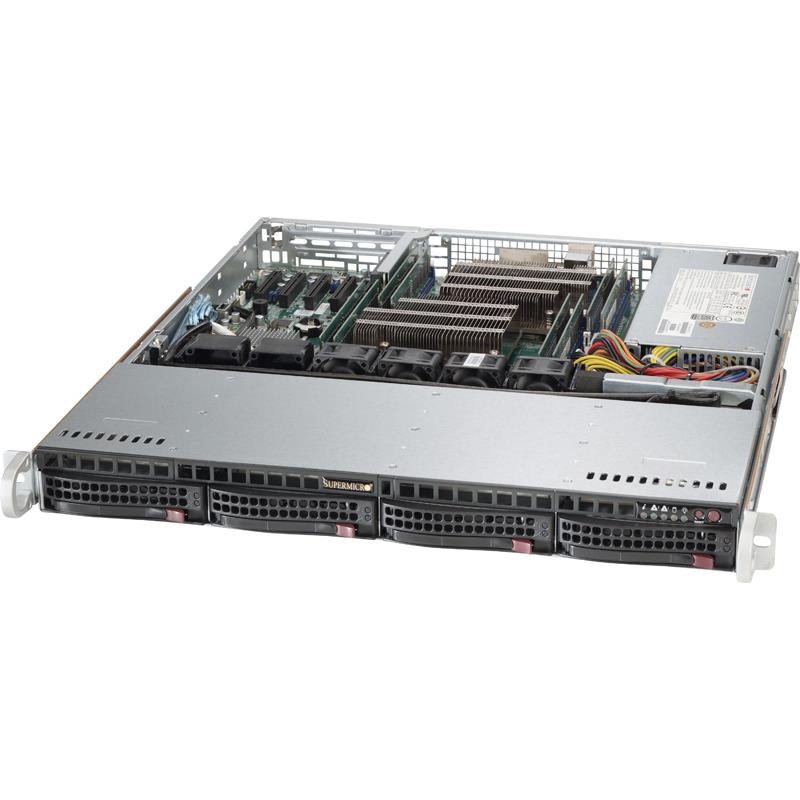

Supermicro SYS-6018R-MTR 1U Barebone Dual Intel Processor

• Data Center Optimized
• Short Depth

Server Barebone 1U for Dual Intel Xeon processor E5-2600 v3 family - Supports up to 512GB DDR4 ECC LRDIMM (or) up to 256GB DDR4 ECC RDIMM up to 2133MHz (8x 288-pin DDR4 DIMM sockets) - On-Board : SATA3 (6Gbps) with RAID 0 / 1 / 5 / 10, I-SATA 4 and I-SATA 5 support SATA DOM, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, Intel i210 2x Gigabit Ethernet, ASPEED AST2400 BMC Graphics Controller - Includes : 4x 3.5in Hot-swap SATA HDD trays, 1x Riser Card (RSC-RR1U-E8 Rev. 4.00), 2x Heatsink / Retention (2x SNK-P0047PD) - System also includes : 440W Redundant SuperCompact Gold Level Power Supply (2x PWS-406P-1R), X10DRL-i Motherboard, CSE-813MFTQ-R400CB Short Depth 1U Chassis (Black)

This product is no longer available.

1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 1TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 8x DIMM slots
3. 1x PCI-E 3.0 x8 (FHHL) slot
4. 4x 3.5" Hot-swap SATA3 Drive Bays
5. Intel® i210 Dual-Port 1GbE LAN

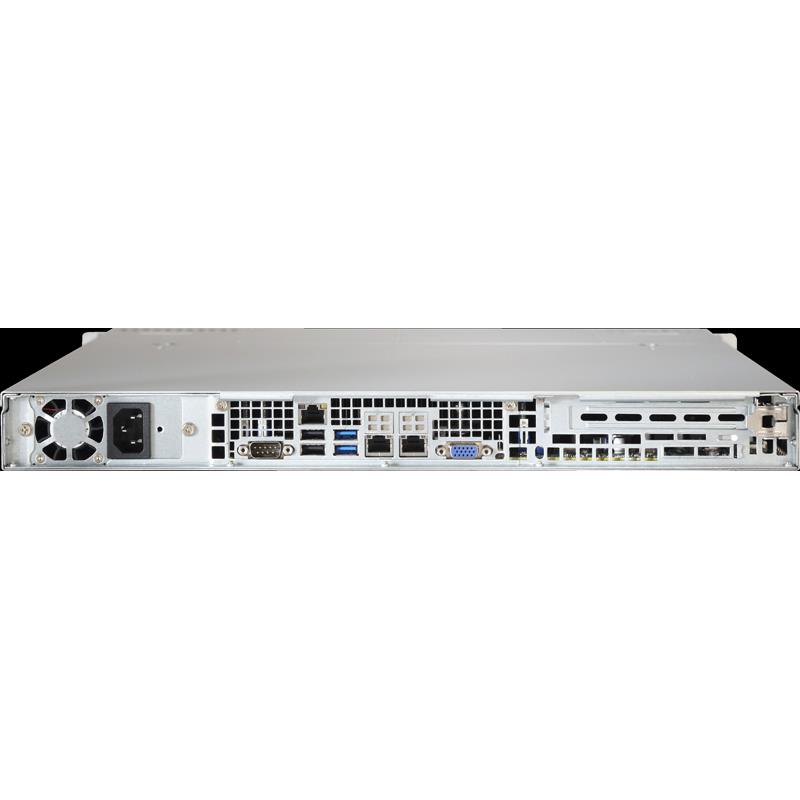

6. I/O ports: 1x VGA, 1x COM, 2x USB 3.0, 2x USB 2.0
7. 400W Redundant Power Supplies Gold Level Certified
8. 2x SuperDOM (Disk on Module) ports
9. IPMI 2.0 + KVM with Dedicated LAN
*Note: SYS-6018R-MTR-BULK Available as Cost Optimized, Bulk Packing - 10 systems in one carton

Extra Specifications for Supermicro SYS-6018R-MTR 1U Barebone Dual Intel Processor

Motherboard
Motherboard	Super X10DRL-i
Processor/Cache
CPU	Dual Socket R3 (LGA 2011)
	Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 135W TDP) *
Cores / Cache	Up to 22 Cores † / Up to 55MB † Cache
System Bus	QPI up to 9.6 GT/s
Note	† BIOS version 2.0 or above is required
	* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity	8x 288-pin DDR4 DIMM slots
	Up to 1TB † ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	LRDIMM: 64GB, 32GB
	3DS LRDIMM: 128GB
	RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C612 chipset
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0
	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
	ASPEED AST2400 BMC
Network Controllers	Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
	1x Realtek RTL8211E PHY (dedicated IPMI)
	Intel® i210 Gigabit Ethernet controller
Video	ASPEED AST2400 BMC
Input / Output
SATA	4x SATA3 (6Gbps) ports
	I-SATA 4 & I-SATA 5 support SATA DOM
LAN	1x RJ45 Dedicated IPMI LAN port
	2x RJ45 Gigabit Ethernet LAN ports
USB	4x USB 3.0 ports (2 rear, 2 headers)
	5x USB 2.0 ports (2 rear, 2 headers, 1 Type A)
Video	1x VGA port
Serial Port / Header	1x COM port (header)
DOM	2x Super DOM (Disk on Module) ports
Management
Software	Watch Dog
	SuperDoctor® 5
	Intel® Node Manager
	IPMI 2.0
	SUM
	SSM
	SPM
Power Configurations	Power-on mode for AC power recovery
	ACPI Power Management
Chassis
Form Factor	1U Rackmount
Model	CSE-813MFTQ-R400CB
Dimensions and Weight
Width	17.2" (437mm)
Height	1.7" (43mm)
Depth	19.8" (503mm)
Package	23.4" (W) x 8.5" (H) x 29.7" (L)
Gross Weight	38 lbs (17.24 kg)
Available Colors	Black
Front Panel
Buttons	Power On/Off button
	System Reset button
LEDs	Power status LED
	HDD activity LED
	Universal Information (UID) LED
	2x Network activity LEDs
Expansion Slots
PCI-Express	1x PCI-E 3.0 x8 (FHHL) slot
Drive Bays
Hot-swap	4x 3.5" Hot-swap SATA3 Drive Bays
Backplane
Backplane	SAS2/SATA3 Backplane
System Cooling
Fans	4x 4cm fans with optimal fan speed control
Power Supply
Power Supply	400W Redundant Power Supplies w/Power Distributor, PMBus 1.2, I 2 C, and PFC
AC Input	100-240V, 50-60Hz, 6-3A
DC Output	+5V standby: 3A
	+12V: 33A
DC Output With Power Distributor	+5V: 25A
	+3.3V: 25A
	-12V: 0.6A
Certification	Gold Certified
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	SMBIOS 2.7.1
	USB Keyboard support
	ACPI 3.0 / 4.0
	Plug and Play (PnP)
	UEFI 2.3.1
	PCI 2.3
	APM 1.2
Operating Environment / Compliance
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F)
	Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
Product SKUs
Product SKUs	SuperServer 6018R-MTR (Black)

Name	Part Number	Qty.	Description
Motherboard / Chassis	MBD-X10DRL-i	1	Super X10DRL-i Motherboard
Motherboard / Chassis	CSE-813MFTQ-R400CB	1	1U Chassis
	Backplane	BPN-SAS-815TQ	1	4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD
	Cable 1	CBL-0186L	1	SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG
Cable 2	CBL-CDAT-0661	1	CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG
	Air Shroud	MCP-310-19015-0N	1	SC813M,SC113M, DP X9DRL-EF/ X9DRL-7F/ X10DRL-i, X9/X10 mylar air shroud, 12
Manual	MNL-1591-QRG	1	SYS-6018R-MT/MTR, QRG,HF,RoHS/REACH
	Riser Card	RSC-RR1U-E8	1	RSC-RR1U-E8
	Heatsink / Retention	SNK-P0047PD	2	1U Passive Custom CPU Heat Sink for X9DRL, X10DRL Related Systems
	Power Supply	PWS-406P-1R	2	1U 400W Redundant Short Depth Power Supply
	FAN 1	FAN-0147L4	4	40x40x28 mm, 17.5K RPM, SC813MTS Middle Cooling Fan,RoHS/REACH,PBF
