- Supermicro SYS-6018R-WTRT 1U Barebone Dual Intel Processor

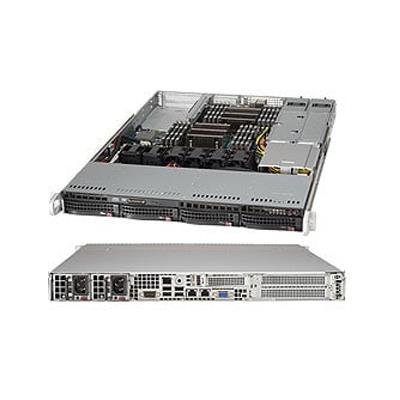

Supermicro SYS-6018R-WTRT 1U Barebone Dual Intel Processor
1U Barebone Supports Intel Xeon E5-2600 v4 processor
Onboard: SATA3 via Intel C612 RAID, 2x SuperDOM, 1x VGA port
Lan: 2x RJ45 10GBase-T ports, 1x RJ45 Dedicated IPMI LAN port
Up to 2TB DDR4-2400MHz LRDIMM/RDIMM in 16x 288-pin DIMM slots
Server Barebone 1U for Dual Intel Xeon processor E5-2600 v3/V4 family - Supports up to 1TB DDR4 ECC LRDIMM (or) up to 512GB DDR4 ECC RDIMM up to 2133MHz (16x 288-pin DDR4 DIMM sockets) - On-Board : SATA3 via Intel C612 (RAID 0, 1, 5, 10), IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, Intel X540 2x 10GBase-T Ethernet, ASPEED AST2400 BMC Graphics Controller - Includes : 4x 3.5in Hot-Swap SAS / SATA HDD trays (ready for PCI-E storage controller card), Optional Slim DVD-ROM drive, 1x Riser Card (RSC-R1UW-2E16), 2x Heatsink / Retention (1x SNK-P0047PSC and 1x SNK-P0057PS), Rail Set (CSE-PT51L) - System also includes : 750W Redundant 80 Plus Platinum Level Power Supply (2x PWS-706P-1R), X10DRW-iT Motherboard, CSE-815TQ-R706WB 1U Chassis (Black)
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2. Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16x DIMM slots
3. 2x PCI-E 3.0 x16 (FHHL) - AOC support
4. Intel® X540 Dual port 10GBase-T
5. 4x 3.5" Hot-swap SAS/SATA HDD Bays for Customizable Storage
6. I/O ports: 2x SuperDOM, 1x VGA, 1x Serial, 6x USB 3.0 (4 rear)
7. 750W Redundant Power Supplies Platinum Level High-efficiency
Extra Specifications for Supermicro SYS-6018R-WTRT 1U Barebone Dual Intel Processor
| Product SKUs | ||
| Product SKUs | SuperServer 6018R-WTRT (Black) | |
| Motherboard | ||
| Motherboard | Super X10DRW-iT | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM/RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 via Intel® C612; RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1x Realtek RTL8211E PHY (dedicated IPMI) | ||
| Intel® X540 Dual Port 10GBase-T | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA/SAS | 10x SATA3 (6Gbps) ports | |
| LAN | 1x RJ45 Dedicated IPMI LAN port | |
| 2x RJ45 10GBase-T ports | ||
| USB | 6x USB 3.0 ports (4 rear + 2 via header) | |
| Video | 1x VGA port | |
| Serial Port / Header | 1x Header | |
| DOM | 2x Super DOM (Disk on Module) ports | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| Intel Node Manager | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI / APM Power Management | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-815TQ-R706WB | |
| Dimensions and Weight | ||
| Width | 17.2" (437mm) | |
| Height | 1.7" (43mm) | |
| Depth | 25.6" (650mm) | |
| Weight | Net Weight: 25.5 lbs (11.6 kg) | |
| Gross Weight: 39 lbs (17.7 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| UID button | ||
| LEDs | Power status LED | |
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| 2x Network activity LEDs | ||
| Expansion Slots | ||
| PCI-Express | UIO AOC Compatibility Matrix | |
| 1x PCI-E 3.0 x8 Mezzanine for HBA cards | ||
| 2x PCI-E 3.0 x16 (Full-height, Half-length) | ||
| Drive Bays | ||
| Hot-swap | 4x 3.5" Hot-swap SAS / SATA HDD trays (ready for PCI-E storage controller card) | |
| Peripheral Drives | ||
| DVD-ROM | Slim DVD-ROM drive (optional) | |
| Backplane | ||
| Backplane | SAS/SATA HDD Backplane (SAS support requires optional SAS controller) | |
| System Cooling | ||
| Fans | 5x 4cm Counter-rotating PWM fans | |
| AC/DC240V Input Redundant Power Supply | ||
| AC/DC240V Input Redundant Power Supply | 700W/750W Redundant Power Supplies with PMBus | |
| Total Output Power | 700W/750W | |
| Dimension (W x H x L) | 54.5 x 40.25 x 320 mm | |
| Input | 100 - 140Vac / 8 - 6A / 50-60Hz | |
| 200 - 240Vac / 4.5 - 3.8A / 50-60Hz | ||
| 200 - 240Vdc / 4.5 - 3.8A (CCC Only) | ||
| +12V | Max: 58A / Min: 0.5A (100 - 140Vac) | |
| Max: 62A / Min: 0.5A (200 - 240Vac) | ||
| Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only) | ||
| +5V sb | Max: 3A / Min: 0A | |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
| Certification | Platinum Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| SMBIOS 2.3 | ||
| UEFI | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| BIOS resuce hot keys | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRW-iT | 1 | Super X10DRW-iT Motherboard | |
| Motherboard / Chassis | CSE-815TQ-R706WB | 1 | 1U Chassis | |
| Backplane | BPN-SAS-815TQ | 1 | 4-port 1U TQ backplane (W/ enclosure management), support up to 4x 3.5-inch SAS/SATA HDD | |
| Cable 1 | CBL-0186L | 1 | SATA,INT,ROUND,SET OF 4,ST-RA 56/45.5/35/23CM,26AWG | |
| Cable 2 | CBL-CDAT-0661 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG | |
| FAN 1 | FAN-0086L4 | 1 | 40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M | |
| Manual | MNL-1635-QRG | 1 | 6018R-WTR(T) QRG,HF | |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots | |
| Heatsink / Retention | SNK-P0047PSC | 1 | 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB | |
| Heatsink / Retention | SNK-P0057PS | 1 | 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB | |
| Power Supply | PWS-706P-1R | 2 | 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3.5" to 2.5" Converter Tray | MCP-220-00043-0N | $ 26.00 | 0 | Black Hot-swap Gen-4 2.5" to 3.5" HDD tray | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT4 | 1 | TEAC SLIM DVD ROM SATA DRIVE, HF, RoHS/REACH | |||
| DVD-ROM / DVD-RW | DVM-TEAC-DVDRW-SBT4 | 1 | TEAC SLIM DVD-RW SATA DRIVE, RoHS | |||
| DVD-ROM / DVD-RW | DVM-PLDS-DVDRW-SBT5 | $ 51.50 | 1 | PHILIPS SLIM BLACK DVD-RW SATA DRIVE, HF, RoHS/REACH | ||
| DVD-ROM Accessory | MCP-220-81502-0N | $ 28.50 | 1 | Slim SATA DVD mounting kit | ||
| Internal 2.5" HDD Tray(FDD Slot) | MCP-220-83601-0B | $ 24.50 | 1 | Black FDD dummy tray support 1x 2.5" slim HDD | ||
| Internal 2.5" HDD Tray(DVD Slot) | MCP-290-00036-0B | $ 19.00 | 1 | Black DVD dummy tray support 1x 2.5" slim HDD | ||
| USB/COM Port Tray(DVD Slot) | MCP-220-00114-0N | $ 40.00 | 1 | Black 2x USB 3.0/COM port tray in slim DVD bay | ||
| Cable for internal HDD | CBL-0489L | $ 17.00 | 2 | SATA,INT,ROUND,ST-RA,70CM,30AWG | ||
| Cable for internal HDD | CBL-0082L | $ 17.00 | 1 | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG | ||
| CacheVault(s) | BTR-CV3108-1U1 | $ 324.50 | 1 | CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray | ||
| CacheVault(s) | BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 | 0 | CacheVault for Broadcom 3108; SuperCap mounting bracket for PCI-E location | |||
| CacheVault(s) | BTR-TFM8G-LSICVM02 & MCP-240-00127-0N | 0 | CacheVault for Broadcom 3108; SuperCap mounting bracket for 2.5" HDD location | |||
| SuperCap forAOC-S2208L-H8IR | BTR-0024LH-LSI00297 & BKT-BBU-BRACKET-05 | 0 | SuperCap TFM to be used w/ Supermicro AOC-S2208L-H8IR; SuperCap mounting bracket for PCI-E location | |||
| SuperCap forAOC-S2208L-H8IR | BTR-0024LH-LSI00297 & MCP-240-00127-0N | 0 | SuperCap TFM to be used w/ Supermicro AOC-S2208L-H8IR; SuperCap mounting bracket for 2.5" HDD location | |||
| Storage ControllerCard(s) & Cables(s) | AOM-S3108M-H8 &1x CBL-SAST-0556 | 0 | Supermicro Low Profile 12Gb/s Eight-Port SAS Internal Mezzanine RAID Adapter; RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage ControllerCard(s) & Cables(s) | AOC-S3108L-H8IR-16DD& 1x CBL-SAST-0556 | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD;RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage ControllerCard(s) & Cables(s) | AOC-S3008L-L8i &1x CBL-SAST-0556 | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3, 63HDD;RAID 0, 1, 10 | |||
| Storage ControllerCard(s) & Cables(s) | AOC-S3008L-L8e &1x CBL-SAST-0556 | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD;HBA | |||
| Storage ControllerCard(s) & Cables(s) | AOC-S2308L-L8e &1x CBL-SAST-0388L-02 | 0 | Standard LP, 8 internal ports (6Gb/s) Gen-3, 122HDD;HBA | |||
| Storage ControllerCard(s) & Cables(s) | AOC-S2308L-L8i &1x CBL-SAST-0388L-02 | 0 | Standard LP, 8 internal ports (6Gb/s) Gen-3, 63HDD;RAID 0, 1, 10 | |||
| Storage ControllerCard(s) & Cables(s) | AOC-S2208L-H8iR &1x CBL-SAST-0388L-02 | 0 | Standard LP, 8 internal ports (6Gb/s) Gen-3, 240HDD;RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Network Card(s) | AOC-SGP-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2 | |||
| Network Card(s) | AOC-SGP-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350 | |||
| Network Card(s) | AOC-SG-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB | |||
| Network Card(s) | AOC-SG-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x8, Intel® 82576EB | |||
| Network Card(s) | AOC-STG-b4S | 0 | Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S | |||
| Network Card(s) | AOC-STGN-i2S | 0 | Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES | |||
| Network Card(s) | AOC-STG-i2T | 0 | Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540 | |||
| Network Card(s) | AOC-STG-i2 | 0 | Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB | |||
| Front Bezel | CSE-PTFB-813-02 | $ 25.50 | 1 | Front Bezel w/ Round Venting Holes | ||
| Front Bezel | CSE-PTFB-813-02B | $ 25.50 | 1 | Black Front Bezel w/ Round Venting Holes | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
