- Supermicro SYS-1028R-TDW 1U Barebone Dual Intel Processor

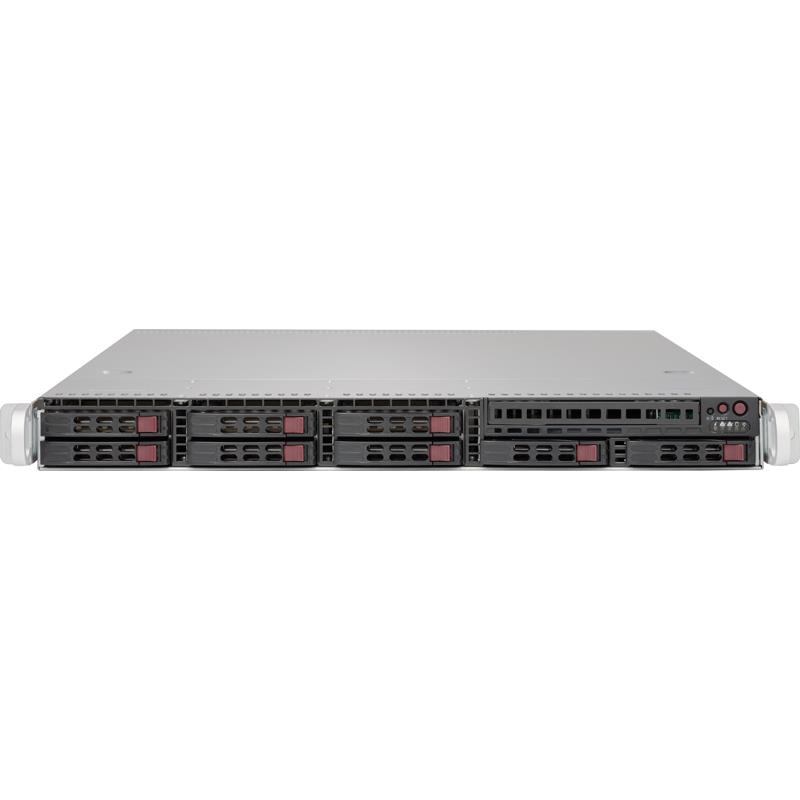

Supermicro SYS-1028R-TDW 1U Barebone Dual Intel Processor
• Data Center Optimized
• 3 AOCs and 1 AOM SAS3 Mezzanine Card
Server Barebone 1U with Dual Intel Xeon E5-2600 v4/v3 Sockets, supporting up to 2TB DDR4 ECC LRDIMM, up to 2400MHz in 16x 288-pin slots - On-Board : SATA3 (6Gbps) RAID 0 / 1 / 5 / 10, IPMI 2.0, Intel i350 2x Gigabit Ethernet, VGA - Includes : 8x 2.5in Hot-swap SATA HDD trays, 2x Riser Cards (1x RSC-R1UW-2E16 and 1x RSC-R1UW-E8R), Heatsink / Retention (2x SNK-P0047PS), Single 600W 80 Plus Platinum Level Power Supply (PWS-605P-1H), X10DDW-i Motherboard, SC113TQ-605DB 1U Chassis (Black)
This product is no longer available.
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16x DIMM slots
3. 2x PCI-E 3.0 x16 (FHHL) slots 1x PCI-E 3.0 x8 (LP) slot
4. 8x 2.5" Hot-swap SATA3 Drive Bays
5. Intel® i350 Dual-Port 1GbE LAN
6. I/O ports: 1x VGA, 2x USB 3.0, 2x USB 2.0
7. 600W High-Efficiency Power Supply Platinum Level Certified
8. 2x SuperDOM (Disk on Module) ports
9. IPMI 2.0 + KVM with Dedicated LAN
Extra Specifications for Supermicro SYS-1028R-TDW 1U Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super X10DDW-i | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 1TB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1x Realtek RTL8211E PHY (dedicated IPMI) | ||
| Intel® i350 Dual Port Gigabit Ethernet | ||
| Video | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA | 8x SATA3 (6Gbps) ports | |
| I-SATA 4 & I-SATA 5 support SATA DOM | ||
| LAN | 1x RJ45 Dedicated IPMI LAN port | |
| 2x RJ45 Gigabit Ethernet LAN ports | ||
| USB | 3x USB 3.0 ports (2 rear, 1 Type A) | |
| 4x USB 2.0 ports (2 rear, 2 headers) | ||
| Video | 1x VGA port | |
| Serial Port / Header | 1x COM port (header) | |
| DOM | 2x Super DOM (Disk on Module) ports | |
| Management | ||
| Software | Watch Dog | |
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI / APM Power Management | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-113TQ-600WB | |
| Dimensions and Weight | ||
| Width | 17.2" (437mm) | |
| Height | 1.7" (43mm) | |
| Depth | 23.5" (597mm) | |
| Package | 25" (W) x 6" (H) x 33" (L) | |
| Gross Weight | 46 lbs (20.9kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| UID button | ||
| LEDs | Power status LED | |
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| 2x Network activity LEDs | ||
| Expansion Slots | ||
| PCI-Express | 2x PCI-E 3.0 x16 (FHHL) slots | |
| 1x PCI-E 3.0 x8 (LP) slot | ||
| Drive Bays | ||
| Hot-swap | 8x 2.5" Hot-swap SATA3 Drive Bays | |
| Peripheral Drives | ||
| DVD-ROM | 1x Slim DVD-ROM drive (optional) | |
| Backplane | ||
| Backplane | SAS2/SATA3 Backplane | |
| System Cooling | ||
| Fans | 5x 4cm fans with optimal fan speed control | |
| Power Supply | ||
| Power Supply | 600W High-Efficiency Power Supply w/PMBus 1.2, I 2 C, PFC, and Digital Switching | |
| AC Input | 100-240V, 50-60Hz | |
| DC Output | +3.3V: 15A | |
| +5V: 18A | ||
| +5V standby: 3A | ||
| +12V: 49A | ||
| -12V: 0.5A | ||
| Certification | Platinum Certified [ Test Report ] | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 5°C to 40°C (41°F to 104°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 1028R-TDW (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DDW-i | 1 | Super X10DDW-i Motherboard | |
| Motherboard / Chassis | CSE-113TQ-600WB | 1 | 1U Chassis | |
| Backplane | BPN-SAS-113TQ | 1 | 8-port 1U TQ (W/ AMI 9072) backplane, support up to 8x 2.5-inch SAS/SATA HDD/SSD | |
| Cable 1 | CBL-SAST-0659 | 2 | MINI SAS(RA)-4 SATA(ST),INT,75/75/70/70CM,75CM SB,30AWG | |
| Cable 2 | CBL-0296L | 1 | 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG | |
| Manual | MNL-1684-QRG | 1 | SYS-1028R-TDW, QRG,HF,RoHS/REACH | |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots | |
| Riser Card | RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot | |
| Heatsink / Retention | SNK-P0047PS | 2 | 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB | |
| Fan | FAN-0086L4 | 5 | 40x56, 4 Pin PWM | |
| Power Supply | PWS-605P-1H | 1 | 1U 600W Multi Output Power Supply PMbus |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Network Card(s) | AOC-SGP-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2 | |||
| Network Card(s) | AOC-SGP-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350 | |||
| Network Card(s) | AOC-SG-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB | |||
| Network Card(s) | AOC-SG-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel® 82576EB | |||
| Network Card(s) | AOC-STG-b4S | 0 | Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S | |||
| Network Card(s) | AOC-STGN-i2S | 0 | Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES | |||
| Network Card(s) | AOC-STGN-i1S | 0 | Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel® 82599ES | |||
| Network Card(s) | AOC-STG-i2T | 0 | Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540 | |||
| Network Card(s) | AOC-STG-i2 | 0 | Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB | |||
| DVD-ROM / DVD-RW | DVM-PNSC-DVD-SBT3 | 0 | BLACK PANASONIC SLIM DVD ROM SATA DRIVE | |||
| DVD-ROM / DVD-RW | DVM-TEAC-DVDRW-SBT5 | $ 101.00 | 0 | BLACK TEAC SLIM DVD ROM SATA DRIVE | ||
| DVD-ROM / DVD-RW | DVM-PLDS-DVDRW-SBT4 | 0 | PHILIPS SLIM BLACK DVD-RW SATA DRIVE | |||
| DVD-ROM / DVD-RW | DVM-TEAC-DVDRW-SBT5 | $ 101.00 | 0 | BLACK TEAC SLIM DVD-RW SATA DRIVE | ||
| DVD-ROM Accessory | MCP-220-81502-0N | $ 28.50 | 0 | Slim SATA DVD kit for SC213,219,813,815,818,819,825,828,829,836,842 | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
