- Supermicro SYS-1028GR-TR GPU 1U Barebone Dual Intel Xeon E5-2600 v4/v3 Processors
Supermicro SYS-1028GR-TR GPU 1U Barebone Dual Intel Xeon E5-2600 v4/v3 Processors
• World Record Benchmark
• STAC-A2™
Barebone 1U Rackmount SuperServer, Support Dual Socket R3 (LGA 2011), Supporting Intel Xeon E5-2600 v4/v3 Processors (Up to 22-Core/Up to 55MB Cache). Up to 2TB DDR4 ECC L/RDIMM, up to 2400MHz in 16x 288-pin slots - On-Board: SATA3 (6Gbps) With RAID, IPMI 2.0, Intel i350-AM2 2x Gigabit Ethernet, VGA - Includes: 4x 2.5in Hot-swap Drive Bays, 4x Riser Cards (1x RSC-R1UG-E16R+II, 1x RSC-R1UG-A2E16-X9, 1x RSC-R1UG-E16AR+II, 1x RSC-R1UG-E16-X9), 2x Heatsink / Retention (1x SNK-P0047PS, 1x SNK-P0047PSC), Mounting Rails Kit (MCP-290-00054-0N), 10x Fans (FAN-0141L4), 1600W Redundant 80 Plus Platinum Level Power Supplies (2x PWS-1K66P-1R), (CSE-118GH-R1K66B + X10DRG-H) - SYS-1028GR-TR (Black)
This product is no longer available.

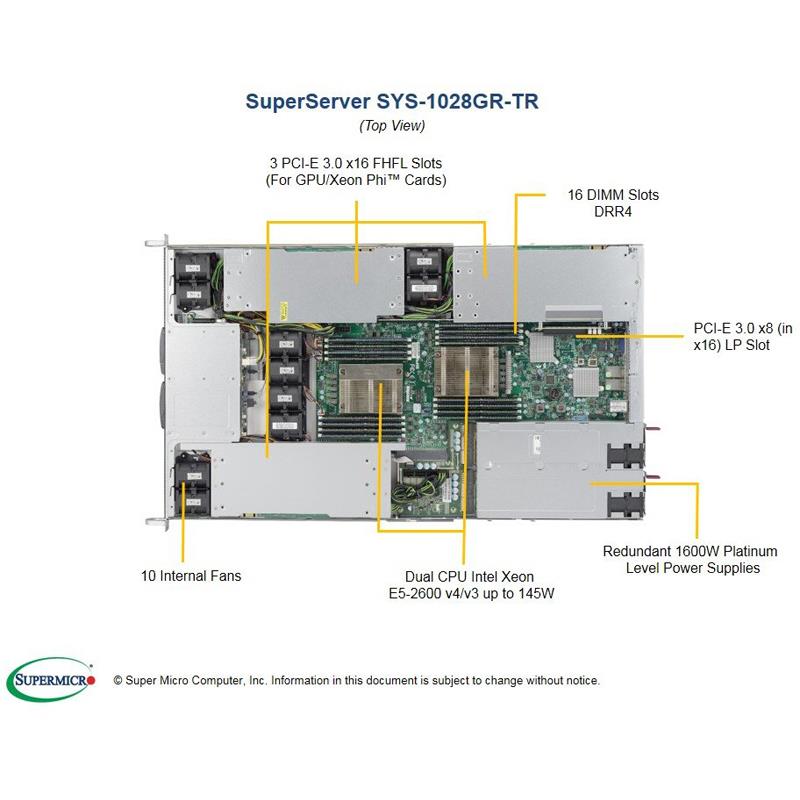

1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2. Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16 DIMM slots
3. 4 PCI-E 3.0 x16 slots (3 GPU/MIC cards optional), 1 PCI-E 3.0 x8 LP slot
4. Intel i350-AM2 Dual port GbE LAN
5. 4 Hot-swap 2.5" SATA3 Drive Bays
6. 1600W Redundant Power Supplies Platinum Level (94%+)
7. 10 Counter rotating fans w/ optimal fan speed control
8. Smart server management tools
Extra Specifications for Supermicro SYS-1028GR-TR GPU 1U Barebone Dual Intel Xeon E5-2600 v4/v3 Processors
| Motherboard | ||
| Motherboard | Super X10DRG-H | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 1TB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Intel® i350-AM2 Dual Port Gigabit Ethernet | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA | 10x SATA3 (6Gbps) ports | |
| LAN | 1x RJ45 Dedicated IPMI LAN port | |
| 2x RJ45 Gigabit Ethernet ports | ||
| USB | 4x USB 3.0 ports (2 rear, 2 via header) | |
| 2x USB 2.0 ports (2 via headers) | ||
| Video | 1x VGA Connector | |
| Serial Port | 1x Serial header | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| DMI 2.3 | ||
| PCI 2.3 | ||
| UEFI | ||
| APM 1.2 | ||
| ACPI 1.0 / 2.0 / 3.0 | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-118GH-R1K66B | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 30.6" (777mm) | |
| Package | 24" (H) x 8" (W) x 40" (D) | |
| Weight | Net Weight: 35 lbs (15.9 kg) | |
| Gross Weight: 48 lbs (21.8 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| System Overheat LED / Fan fail LED / UID LED | ||
| 2x Network activity LEDs | ||
| Expansion Slots | ||
| PCI-Express | 4x PCI-E 3.0 x16 slots (3x GPU/Xeon Phi cards optional) | |
| 1x PCI-E 3.0 x8 (in x16) low-profile slot | ||
| Drive Bays | ||
| Hot-swap | 4x 2.5" Hot-swap drive bays | |
| System Cooling | ||
| Fans | 10x counter-rotating fans with optimal fan speed control | |
| Power Supply | ||
| Power Supply | 1600W 1U Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W: 100 – 127Vac | |
| 1600W: 200 – 240Vac | ||
| Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
| Input | 100-127Vac / 12.9A Max / 50-60Hz | |
| 200-240Vac / 9.5A Max / 50-60Hz | ||
| +12V | Max: 82A / Min: 0.1A (100-127Vac) | |
| Max: 132A / Min: 0.1A (200-240Vac) | ||
| 12V SB | Max: 2A / Min: 0.2A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Platinum Level | |
| PC Health Monitoring | ||
| CPU | 5 Phase-switching voltage regulator | |
| Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. | ||
| FAN | Status monitor for speed control | |
| Status monitor for on/off control | ||
| Low noise fan speed control | ||
| Total of ten 4-pin PWM fans | ||
| 10x fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| Thermal Control for 10x Fan Connectors | ||
| PSU I 2 C temperature sensing logic | ||
| LED | Power Fail / Overheat LED | |
| Suspend-state Indicator LED | ||
| UID LED | ||
| Other Features | SDDC Support | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 1028GR-TR (Black) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Cable | CBL-PWEX-0665 | $ 25.00 | 0 | PCIe 8 pin female(black) to CPU 8 pin female(white), M60/M40 GPU power cable, 30cm, 18AWG | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
