- NVIDIA MBF2M922A-AEEAB 25GbE Network Adapter 16GB DDR Memory OCP 3.0 SFF

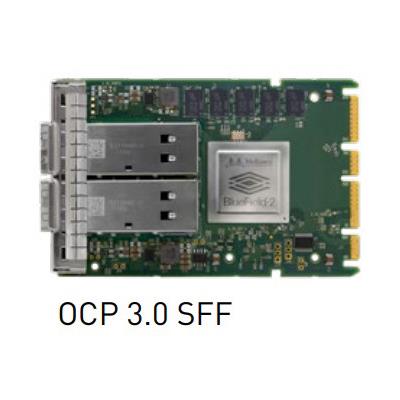

NVIDIA MBF2M922A-AEEAB 25GbE Network Adapter 16GB DDR Memory OCP 3.0 SFF
IPsec/TLS data-in-motion, AES-XTS data-at-rest
Regular expression (RegEx) and DPI accelerations
SHA 256-bit hardware acceleration, Hardware Root of Trust
1 GbE out-of-band management port, NVMe SNAP storage emulation
BlueField-2 25GbE Network Adapter Card, Gen 3.0/4.0 x8, Dual SFP56 Connector, 2.0GHz Core Speed, On-board: 16GB Crypto enabled, OCP 3.0 SFF Form Factor
NVIDIA Mellanox BlueField-2 SmartNIC delivers advanced functionality, unmatched performance, and agility for today’s most demanding workloads. By combining the industry-leading ConnectX-6 Dx network adapter with an array of Arm cores, Bluefield-2 delivers a perfect blend of hardware and software accelerations. Bluefield-2 brings agile and high-performance solutions for security, machine learning, cloud, edge computing, and storage applications while reducing total cost of ownership.
Key Applications
Virtualized and bare metal cloud services
NVMe storage virtualization
Network Function Virtualization (NFV)
Security applications such as DDoS and Deep Packet Inspection (DPI)
Microservers built for edge computing
Extra Specifications for NVIDIA MBF2M922A-AEEAB 25GbE Network Adapter 16GB DDR Memory OCP 3.0 SFF
| Main Specifications | ||
| Device Type | Network adapter - 2 ports | |
| Form Factor | OCP 3.0 SFF | |
| Interface | 8 or 16 lanes of PCIe Gen 3.0/4.0 | |
| Connectivity | ||
| Connectors | 2x SFP56 | |
| Storage Controller | ||
| Onboard Memory/Cache | 16GB on-board | |
| Security Features | ||
| Security Features | IPsec/TLS data-in-motion encryption, AES-GCM 128/256 bit key, AES-XTS 256/512 bit data-at-rest encryption, SHA 256 bit hardware acceleration, Regular expression (RegEx) acceleration, Arm A64, A32 & T32 cryptography instructions for: AES, SHA-1, SHA-224, and SHA-256, Finite field arithmetic, Hardware Public Key Accelerator, RSA, Diffie-Hellman, DSA, ECC, EC-DSA, EC-DH, True Random Number Generator (TRNG), Hardware Root of Trust, Cerberus compliant | |
| Networking | ||
| Hardware-based I/O Virtualization | SR-IOV > Up to 1K Virtual Functions, Up to 56 Physical Functions per host, VirtIO, Multi-function per port, VMware NetQueue support, Virtualization hierarchies, Virtualizing physical functions on a physical port, 1K ingress and egress QoS levels, Guaranteed QoS for VMs | |
| Networking Features | Hardware offload of encapsulation and decapsulation of NVGRE, VXLAN and Geneve, Header rewrite (NAT) | |
| Remote Boot | Secure boot (RSA authenticated), Remote boot over Ethernet, Remote boot over iSCSI, PXE and UEFI | |
| Management Features | NC-SI, MCTP over SMBus and MCTP over PCIe, PLDM for Monitor and Control DSP0248, PLDM for Firmware Update DSP026, 1GbE out-of-band management port, SDN management interface for managing the eSwitch, I2 C interface for device control and configuration, General purpose I/O pins, SPI interface to flash, eMMC memory controller, UART, USB | |
| Software / System Requirements | ||
| OS Supports | CentOS, Ubuntu Commercial Linux Distribution | |
