- Supermicro SYS-2028TP-DTR Twin Barebone Dual CPU, 2-Node

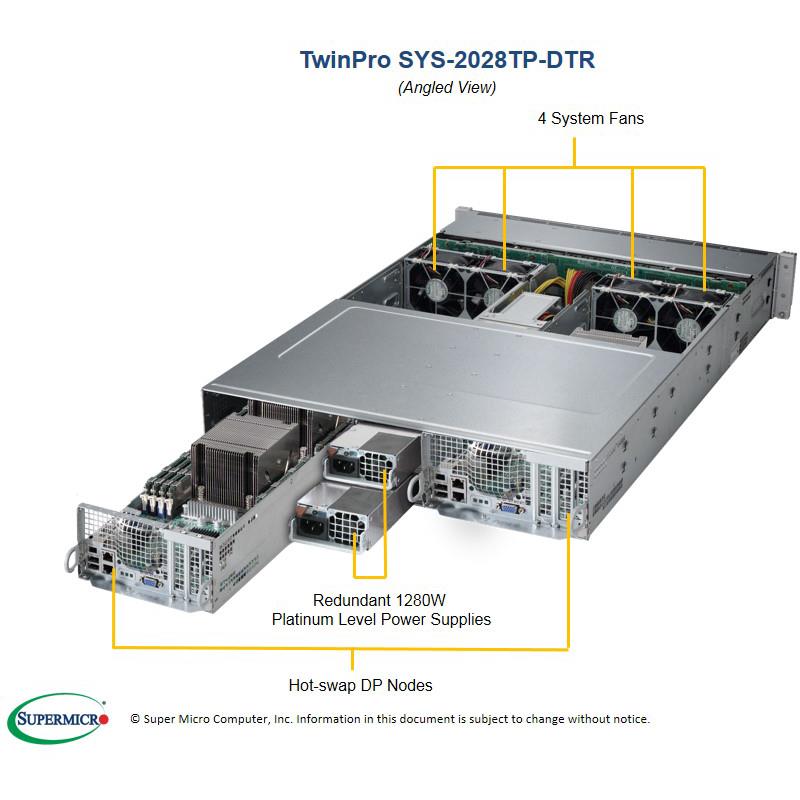

Supermicro SYS-2028TP-DTR Twin Barebone Dual CPU, 2-Node
Server Rackmount 2U TwinPro with Two Systems (Nodes) - Per Node : Socket 2011 R3 for Dual Intel Xeon E5-2600 v3 family processors, Supports up to 1TB DDR4 ECC LRDIMM (or) up to 512GB DDR4 ECC RDIMM (16x 288-pin DDR4 DIMM sockets) - On-Board (per Node) : SATA3 (6Gbps); RAID 0 / 1 / 5 / 10, IPMI 2.0, KVM/media over LAN with dedicated LAN port, Intel i350-AM2 2x Gigabit Ethernet, ASPEED AST2400 BMC Graphics - Includes (per Node) : 8x 2.5in Hot-swap SATA HDD trays, 2x Heatsink / Retention (2x SNK-P0048PS) - System also includes : 1280W Redundant 80 Plus Platinum Power Supply (2x PWS-1K28P-SQ), 2x X10DRT-P Motherboards, and 1x CSE-217HD+-R1K28B 2U Chasssis (Black)
This product is no longer available.
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16x DIMM slots
3. 1x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 slot, and 1x PCI-E 3.0 x16 for GPU/Xeon Phi support (w/ GPU kit)
4. Intel® i350 Dual port GbE LAN
5. Integrated IPMI 2.0 with KVM and Dedicated LAN
6. 8x 2.5" Hot-swap SATA HDD Bays
7. mSATA (full size) support
8. 1280W Redundant Power Supplies Platinum Level Digital (94%)
Extra Specifications for Supermicro SYS-2028TP-DTR Twin Barebone Dual CPU, 2-Node
| Motherboard (Two per System) | ||
| Motherboard (Two per System) | Super X10DRT-P | |
| Processor/Cache (per Node) | ||
| CPU | Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | |
| Dual Socket R3 (LGA 2011) | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory (per Node) | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 512GB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices (per Node) | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1x Realtek RTL8201N PHY (dedicated IPMI) | ||
| Intel® i350-AM2 Dual Port Gigabit Ethernet | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output (per Node) | ||
| SATA | 8x SATA3 (6Gbps) ports | |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports | |
| 1x RJ45 Dedicated IPMI LAN port | ||
| USB | 2x USB 3.0 ports total (2x rear) | |
| VGA | 1x VGA port | |
| Serial Port / Header | 1x Fast UART 16550 port / 1 Header (internal) | |
| Others | 1x SATADOM support on the motherboard | |
| 1x mSATA (full size) and one SATADOM support on the daughter card | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-217HD+-R1K28B | |
| Dimensions and Weight | ||
| Width | 17.25" (438mm) | |
| Height | 3.47" (88mm) | |
| Depth | 28.5" (724mm) | |
| Weight | Gross Weight: 85 lbs (38.6kg) | |
| Net Weight: 66 lbs (29.9 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Power status LED | |
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| 2x Network activity LEDs | ||
| Expansion Slots (per Node) | ||
| PCI-Express | 1x PCI-E 3.0 x16 Low-profile slot | |
| 1x PCI-E 3.0 x8 slot | ||
| 1x PCI-E 3.0 x16 for GPU/Xeon Phi support (w/ GPU kit) | ||
| Drive Bays (per Node) | ||
| Hot-swap | 8x 2.5" Hot-swap SATA HDD trays | |
| System Cooling | ||
| Fans | 4x 8cm heavy duty PWM fans with optimal fan speed control | |
| Power Supply | ||
| Power Supply | 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2 | |
| AC Input | 1000W Output @ 100-140V, 8-12A, 50-60Hz | |
| 1280W Output @ 180-240V, 6-8A, 50-60Hz | ||
| DC Output | 1000W: +12V/83A; +5Vsb/4A | |
| 1280W: +12V/106.7A, +5Vsb/4A | ||
| Certification | Platinum Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| UEFI | ||
| APM 1.2 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 2028TP-DTR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRT-P | 2 | Super X10DRT-P Motherboards | |
| Motherboard / Chassis | CSE-217HD+-R1K28B | 1 | 2U Chassis | |
| Air Shroud | MCP-310-82718-0B | 2 | 2U Twin air shroud for X9DRT-HF+ | |
| Backplane | BPN-ADP-8SATA3P | 2 | 8 SATA 3 ports daughter card for TwinPro,RoHS/REACH,PBF | |
| Backplane | BPN-SAS3-217HD | 1 | 24-port 2U TwinPro SAS3 CSE-217HD (12 drives per node) backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-PWCD-0578 | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Manual | MNL-1657-QRG | 1 | 2028TP-DTR/DTTR/DTFR, QRG,HF,RoHS/REACH | |
| Heatsink / Retention | SNK-P0048PS | 4 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB | |
| Power Supply | PWS-1K28P-SQ | 2 | 1U 1280W, redundant single output power supplies |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| GPU Kit | MCP-420-21715-ASM | $ 180.50 | 0 | Support passive GPU and Xeon Phi (passive) | ||
| GPU Kit | MCP-420-21715-ASM-OEM | $ 180.50 | 0 | Support Geforce GTX GPU (active) | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 2 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 2 | DataCenter Management Package (per node license) |
