Supermicro SYS-2028TP-DTTR Twin Barebone Dual CPU, 2-Node

• Two hot-pluggable nodes
• IPMI 2.0 with KVM Integrated
• 8x 2.5 Hot-swap SATA HDD Bays
• Intel X540 Dual port 10GBase-T LAN

Server Rackmount 2U TwinPro with Two Systems (Nodes) - Per Node : Socket 2011 R3 for Dual Intel Xeon E5-2600 v3 family processors, Supports up to 1TB DDR4 ECC LRDIMM (or) up to 512GB DDR4 ECC RDIMM (16x 288-pin DDR4 DIMM sockets) - On-Board (per Node) : SATA3 (6Gbps); RAID 0 / 1 / 5 / 10, IPMI 2.0, KVM/media over LAN with dedicated LAN port, Intel X540 2x 10GBase-T Ethernet, ASPEED AST2400 BMC Graphics - Includes (per Node) : 8x 2.5in Hot-swap SATA HDD trays, 2x Heatsink / Retention (2x SNK-P0048PS) - System also includes : 1280W Redundant 80 Plus Platinum Power Supply (2x PWS-1K28P-SQ), 2x X10DRT-PT Motherboards, and 1x CSE-217HD+-R1K28B 2U Chasssis (Black)

    2,444.00 2,444.00 2444.0 USD


    Option not available


    This combination does not exist.

    Add to Cart

    • mSATA (full size) support
    • 8x 2.5 Hot-swap SATA HDD Bays
    • Intel X540 Dual port 10GBase-T LAN
    • Integrated IPMI 2.0 with KVM and Dedicated LAN

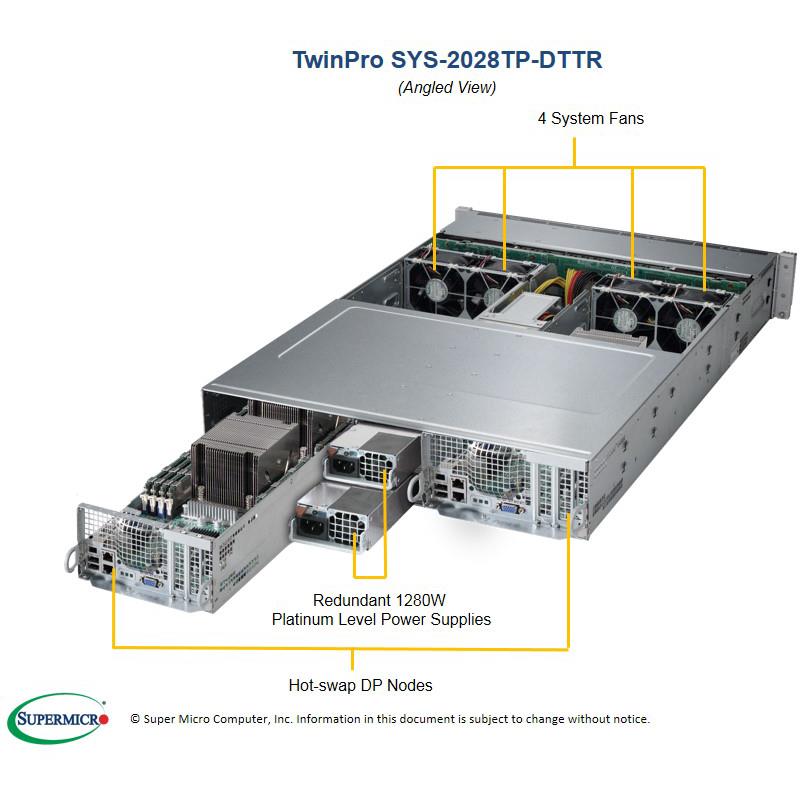

    • Two hot-pluggable systems (nodes) in a 2U form factor
    • 1280W Redundant Power Supplies Platinum Level Digital (95%)
    • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2400MHz; 16x DIMM slots
    • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
    • 1x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 slot, and 1x PCI-E 3.0 x16 for GPU/Xeon Phi support (w/ GPU kit)

    Extra Specifications for Supermicro SYS-2028TP-DTTR Twin Barebone Dual CPU, 2-Node

    Main Specifications
    Built-in Devices Super X10DRT-PT
    Device Type SuperServer
    Dimensions (WxDxH) W 17.25" (438mm) x H 3.47" (88mm) x D 28.5" (724mm)
    Enclosure Color Black
    Form Factor 2U Rackmount - CSE-217HD+-R1K28B
    Weight 85 lbs (38.6kg)
    Processor (per Node)
    Compatible Processors Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP)
    Compatible Socket Dual Socket R3 (LGA 2011)
    Cores / Cache Up to 22 Cores / Up to 55MB Cache
    QPI QPI up to 9.6 GT/s
    System Memory (per Node)
    DIMM Sizes LRDIMM: 64GB, 32GB
      3DS LRDIMM: 128GB
      RDIMM: 32GB, 16GB, 8GB, 4GB
    Error Detection Corrects single-bit errors
    Memory Capacity 16x 288-pin DDR4 DIMM slots
      Up to 2TB† ECC 3DS LRDIMM, 512 ECC RDIMM
    Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
    Memory Voltage 1.2 V
    On-Board Devices
    Chipset Intel® C612 Express chipset
    Graphics ASPEED AST2400 BMC
    IPMI Support for Intelligent Platform Management Interface v.2.0
      IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
      ASPEED AST2400 BMC
    Network Controllers Intel® X540 Dual port 10GBase-T
      Virtual Machine Device Queues reduce I/O overhead
      Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
      1x Realtek RTL8201N PHY (dedicated IPMI)
    SATA SATA3 (6Gbps), RAID 0, 1, 5, 10

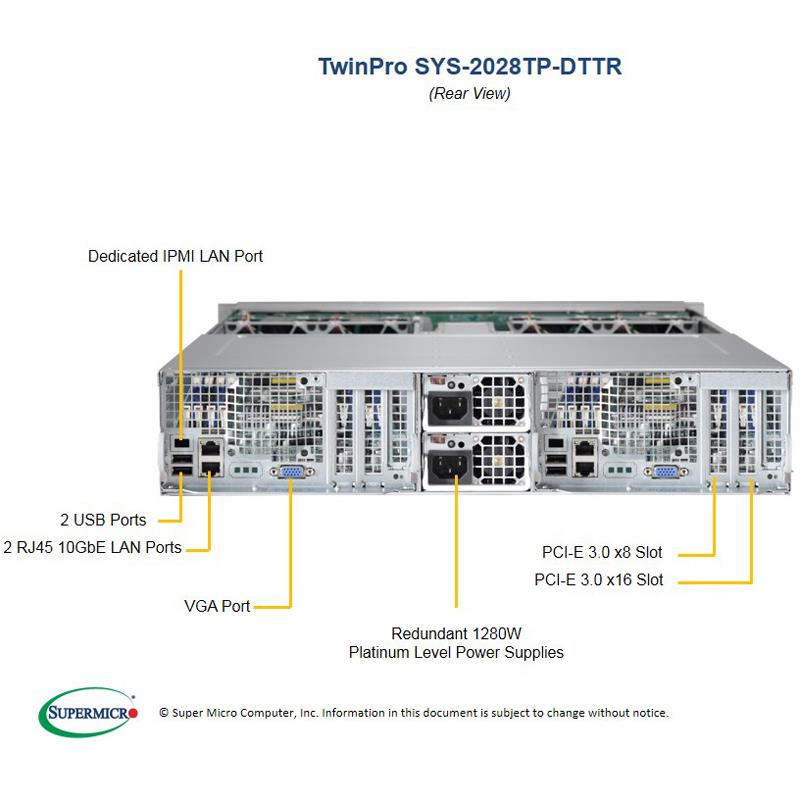

    Input / Output (per Node)
    LAN 2x RJ45 10GBase-T ports, 1x RJ45 Dedicated IPMI LAN port
    Serial ATA 8x SATA3 (6Gbps) ports
    Serial Port / Header 1x Fast UART 16550 port / 1 Header
    USB 2x USB 3.0 ports total (2x rear)
    Video 1x VGA port
    Front Panel
    Buttons Power On/Off button, System Reset button, UID button
    LEDs Power status LED, HDD activity LED, 2x Network activity LEDs, Universal Information (UID) LED
    Expansion Slots (per Node)
    PCI-Express 1x PCI-E 3.0 x16 Low-profile slot
      1x PCI-E 3.0 x8 slot
      1x PCI-E 3.0 x16 for GPU/Xeon Phi support (w/ GPU kit)
      (Both CPUs need to be installed for full access to PCI-E slots)
    Drive Bays (per Node)
    Hot-swap 8x 2.5" Hot-swap SATA HDD trays
    System Cooling
    Fans 4x 8cm heavy duty PWM fans with optimal fan speed control
    Power Supply
    Certification 80PLUS Platinum Certified
    Power Supply 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
    System BIOS
    BIOS Features Plug and Play (PnP), APM 1.2, PCI 2.2, ACPI 1.0 / 2.0, USB Keyboard support, SMBIOS 2.3, UEFI
    BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
    Operating Environment / Compliance
    Operating Temperature Operating Temperature: 10°C to 35°C (50°F to 95°F)
      Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
      Operating Relative Humidity: 8% to 90% (non-condensing)
      Non-operating Relative Humidity: 5% to 95% (non-condensing)
    RoHS RoHS Compliant
    Parts List - (Items Included)
    Add-On Card 2x BPN-ADP-8SATA3P
    Air Shroud 2x MCP-310-82718-0B
    Backplane 1x BPN-SAS3-217HD
    Heatsink / Retention 4x SNK-P0048PS
    Label 1x LBL-0108
    Manual 1x MNL-1657-QRG
    Motherboard / Chassis 2x MBD-X10DRT-PT / 1x CSE-217HD+-R1K28B
    Power Supply 2x PWS-1K28P-SQ
