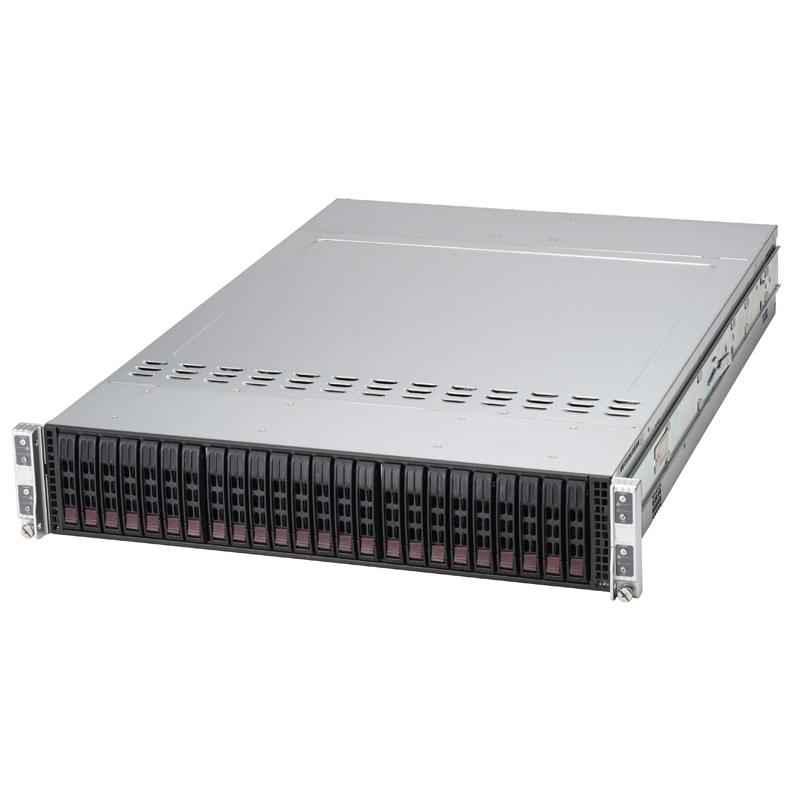

Supermicro SYS-2028TP-HC0TR Twin Barebone Dual CPU, 4-Node

• 4x hot-pluggable nodes
• Hot-swap SAS/SATA HDD Bays
• Intel X540 Dual port 10GBase-T
• LSI 3008 SAS3 controller (8 ports)

Server Rackmount 2U TwinPro2 with Four Systems (Nodes) - Per Node : Socket 2011 R3 for Dual Intel Xeon E5-2600 v3 family processors, Supports up to 1TB DDR4 ECC LRDIMM (or) up to 512GB DDR4 ECC RDIMM (16x 288-pin DDR4 DIMM sockets) - On-Board (per Node) : LSI 3008 SAS3 (12Gbps) controller (RAID 0, 1, 10 support), IPMI 2.0, KVM/media over LAN with dedicated LAN port, Intel X540 2x 10GBase-T Ethernet, ASPEED AST2400 BMC Graphics - Includes (per Node) : 6x 2.5in Hot-swap SAS/SATA HDD Trays, 1x Riser Card (RSC-R1UTP-E16R), 2x Heatsink / Retention (1x SNK-P0057PS and 1x SNK-P0047PSM) - System also includes : 2000W Redundant 80 Plus Platinum Power Supply (2x PWS-2K02P-1R), 4x X10DRT-PT Motherboards, and 1x CSE-217HQ+-R2K02B 2U Chasssis (Black)


    4,171.00 4,171.00 4171.0 USD

    4,171.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • Mini-mSATA (half size) support
    • Intel X540 Dual port 10GBase-T LAN
    • 6x 2.5 Hot-swap SAS/SATA HDD Bays
    • 1x PCI-E 3.0 x16 Low-profile slot, 1x 0 slot (x16)
    • LSI 3008 SAS3 controller (8 ports); RAID 0, 1, 10
    • Integrated IPMI 2.0 with KVM and Dedicated LAN
    • 2000W Redundant Power Supplies Platinum Level (94%)
    • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports
    • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2400MHz; 16x DIMM slots
    • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s

    Extra Specifications for Supermicro SYS-2028TP-HC0TR Twin Barebone Dual CPU, 4-Node

    Main Specifications
    Built-in Devices Super X10DRT-PT
    Device Type SuperServer
    Dimensions (WxDxH) W 17.25" (438mm) x H 3.47" (88mm) x D 28.5" (724mm)
    Enclosure Color Black
    Form Factor 2U Rackmount - CSE-217HQ+-R2K02B
    Weight 85 lbs (38.6kg)
    Processor/Cache (per Node)
    Compatible processor Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP)
    Compatible Socket Dual Socket R3 (LGA 2011)
    Cores / Cache Up to 22 Cores / Up to 55MB Cache
    QPI QPI up to 9.6 GT/s
    System Memory (per Node)
    DIMM Sizes RDIMM: 32GB, 16GB, 8GB, 4GB
      LRDIMM: 64GB, 32GB
      3DS LRDIMM: 128GB
    Error Detection Corrects single-bit errors, Detects double-bit errors (using ECC memory)
    Memory Capacity 16x 288-pin DDR4 DIMM slots
      Up to 2TB ECC 3DS LRDIMM, 512 ECC RDIMM
    Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
    Memory Voltage 1.2 V
    On-Board Devices
    Chipset Intel® C612 Express chipset
    Graphics ASPEED AST2400 BMC
    IPMI Support for Intelligent Platform Management Interface v.2.0
      IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
      ASPEED AST2400 BMC
    Network Controllers Intel® X540 Dual port 10GBase-T
      Virtual Machine Device Queues reduce I/O overhead
      Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
      1x Realtek RTL8201N PHY (dedicated IPMI)
    SAS LSI 3008 SAS3 (12Gbps) controller, RAID 0, 1, 10 support
    Input / Output (per node)
    LAN 2x RJ45 10GBase-T ports, 1x RJ45 Dedicated IPMI LAN port
    SAS 6x SAS3 (12Gbps) ports
    Serial Port / Header 1x Fast UART 16550 port / 1 Header
    USB 2x USB 3.0 ports total (2x rear)
    VGA 1x VGA port
    Front Panel
    Buttons Power On/Off button, System Reset button, UID button
    LEDs Power status LED, HDD activity LED, 2x Network activity LEDs, Universal Information (UID) LED
    Expansion Slots (per node)
    PCI-Express 1x PCI-E 3.0 x16 Low-profile slot
      1x "0 slot" (x16) - (Both CPUs need to be installed for full access to PCI-E slots and 0 slot.)
    Drive Bays (per Node)
    Hot-swap 6x 2.5" Hot-swap SAS/SATA HDD trays
    System Cooling
    Fans 4x 8cm heavy duty PWM fans with optimal fan speed control
    Power Supply
    Certification 80PLUS Platinum Certified
    Power Supply 2000W Redundant Power Supplies with I2C & PMBus
    System BIOS
    BIOS Features Plug and Play (PnP), APM 1.2, PCI 2.2, ACPI 1.0 / 2.0, USB Keyboard support, SMBIOS 2.3, UEFI
    BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
    Operating Environment / Compliance
    Operating Temperature Operating Temperature: 10°C to 35°C (50°F to 95°F)
      Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
      Operating Relative Humidity: 8% to 90% (non-condensing)
      Non-operating Relative Humidity: 5% to 95% (non-condensing)
    RoHS RoHS Compliant
    Parts List - (Items Included)
    Air Shroud MCP-310-21703-0B or MCP-310-21702-0B
    Backplane 1x BPN-SAS3-217HQ, 4x BPN-ADP-S3008L-L6IP
    Heatsink / Retention 4x SNK-P0057PS, 4x SNK-P0047PSM
    Motherboard / Chassis 4x MBD-X10DRT-PT / 1x CSE-217HQ+-R2K02B
    Power Supply PWS-2K04A-1R or PWS-2K02P-1R
    Riser Card 4x RSC-R1UTP-E16R
