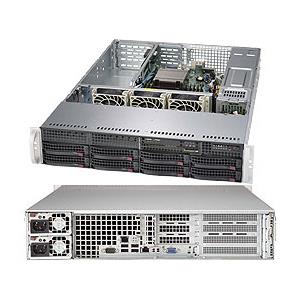

Supermicro SYS-5028R-WR 2U Barebone Single Intel Processor
• 5x PCI-E x8, 8x 3.5" Drives
• Cost-effective, Single Socket
Server Barebone 2U for Single Intel Xeon processor E5-2600/1600 v3 family processors - Up to 512GB DDR4 ECC LRDIMM (or) up to 256GB DDR4 ECC RDIMM up to 2133MHz (8x 288-pin DDR4 DIMM sockets) - On-Board : SATA3 (6Gbps) via C612 controller (RAID), 2 Gigabit Ethernet, IPMI, VGA - Includes : 8x 3.5in Hot-swap SATA3 drive bays, 2x Riser Cards, 1x Heatsink/Retention, 500W 80 Plus Platinum Certified Power Supply, X10SRW-F Motherboard, CSE-825TQ-R500WB 2U Chassis - (Black)
1. Single socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2. Intel® C612 chipset
3. 8x 3.5" Hot-swap SATA3 drive bays; optional fixed drive bays
4. Up to 1TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 8 DIMM slots
5. 5 PCI-E 3.0 x8 slots via riser card
6. Intel® i350-AM2 Dual port GbE LAN
7. 1 Slim DVD ROM drive bay (option)
8. 2 USB 2.0 + 2 USB 3.0 ports (rear), 2 USB 2.0 ports (front)
9. 500W Redundant Power Supplies Platinum Level (94%+)
10. 3 middle cooling fans
Extra Specifications for Supermicro SYS-5028R-WR 2U Barebone Single Intel Processor
Product SKUs | ||
Product SKUs | SuperServer 5028R-WR (Black) | |
Motherboard | ||
Motherboard | Super X10SRW-F | |
Processor | ||
CPU | Intel® Xeon® processor E5-2600 v4 † / v3, E5-1600 v4 † / v3 family (up to 145W TDP **) | |
Single Socket R3 (LGA 2011) | ||
Core / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
Note | † BIOS version 2.0 or above is required | |
** Motherboard supports this maximum TDP. Please verify your system can thermally support | ||
System Memory | ||
Memory Capacity | 8x 288-pin DDR4 DIMM slots | |
Up to 1TB ECC 3DS LRDIMM | ||
Up to 512GB ECC LRDIMM | ||
Up to 256GB ECC RDIMM | ||
Memory Type | 2400 † / 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (RDIMM / LRDIMM) / 284-pin gold-plated DIMMs | |
DIMM Sizes | LRDIMM: 64GB, 32GB | |
3DS LRDIMM: 128GB | ||
RDIMM: 32GB, 16GB, 8GB, 4GB | ||
Memory Voltage | 1.2 V | |
Error Detection | Corrects single-bit errors | |
Detects double-bit errors (using ECC memory) | ||
On-Board Devices | ||
Chipset | Intel® C612 chipset | |
SATA | SATA3 (6Gbps) via C612 controller | |
RAID 0, 1, 10 support | ||
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
ASPEED AST2400 BMC | ||
Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
1 Realtek RTL8201N PHY (dedicated IPMI) | ||
Intel® i350-AM2 Dual Port Gigabit Ethernet | ||
Video | ASPEED AST2400 BMC | |
Input / Output | ||
SATA | 8 SATA3 (6Gbps) ports | |
LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
1 RJ45 Dedicated IPMI LAN port | ||
USB | 2 USB 2.0 ports (front) | |
2 USB 2.0 + 2 USB 3.0 ports (rear) | ||
Video | 1 VGA port | |
Serial Port / Header | 1 Fast UART 16550 serial port | |
1 internal header | ||
Chassis | ||
Form Factor | 2U Rackmount | |
Model | CSE-825TQ-R500WB | |
Dimensions | ||
Height | 3.5" (88.9mm) | |
Width | 17.2" (437mm) | |
Depth | 25.5" (648mm) | |
Package | 11" (H) x 26.5" (W) x 34.5" (D) | |
Weight | Net Weight: 34 lbs (15.4 kg) | |
Gross Weight: 59 lbs (26.7 kg) | ||
Available Colors | Black | |
Front Panel | ||
Buttons | Power On/Off button | |
System Reset button | ||
LEDs | Power LED | |
System Information LED | ||
Network activity LEDs | ||
Hard drive activity LED | ||
Expansion Slots | ||
PCI-Express | 4 PCI-E 3.0 x8 Full-height Full-length slots | |
1 PCI-E 3.0 x8 Low-profile Half-length slot | ||
Drive Bays | ||
Hot-swap | 8 Hot-swap 3.5" SATA3 drive bays | |
Backplane | ||
Backplane | SAS/SATA HDD Backplane (SAS support requires optional SAS controller) | |
System Cooling | ||
Fans | 3x 80x80x38mm 7K RPM Cooling fans | |
Power Supply with Power Distributor | ||
Power Supply with Power Distributor | 500W high-efficiency redundant power supplies with PMBus | |
AC Input | 100-240 V, 50-60 Hz, 6.1-2.6 Amp | |
DC Output | 4 Amp @ +5V standby | |
41.7 Amp @ +12V | ||
With Power Distributor | -12V: 0.6 Amp | |
+5V: 30 Amp | ||
+3.3V: 24 Amp | ||
Certification | Platinum Certified [ Test Report ] | |
System BIOS | ||
BIOS Type | 8MB SPI Flash EEPROM with AMI BIOS | |
BIOS Features | USB Keyboard support | |
DMI 2.3 | ||
SMBIOS 2.3 | ||
PCI 2.3 | ||
ACPI 1.0 / 2.0 | ||
Operating Environment / Compliance | ||
RoHS | RoHS Compliant | |
Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-X10SRW-F | 1 | Super X10SRW-F Motherboard | |
Motherboard / Chassis | CSE-825TQ-R500WB | 1 | 2U Chassis | |
Backplane | BPN-SAS-825TQ | 1 | 8-port 2U TQ (W/ AMI 9072) backplane, support up to 8x 3.5-inch SAS/SATA HDD | |
Cable 1 | CBL-0157L-01 | 2 | CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,60CM,28AWG | |
Cable 2 | CBL-0201L | 1 | SATA,INT,ROUND,SET OF 4,ST-RA 51/47/41/37CM,26AWG | |
Cable 3 | CBL-0230L | 1 | SATA,INT,ROUND,ST-RA,65CM,26AWG | |
Cable 4 | CBL-0231L | 2 | SATA,INT,ROUND,ST-RA,70CM,26AWG | |
Cable 5 | CBL-0228L | 1 | SATA,INT,ROUND,ST-RA,55CM,26AWG | |
Drive Tray(s) | MCP-220-82504-0B | 1 | Black USB tray for SC825,836 | |
Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
Manual | MNL-1606-QRG | 1 | SYS-5028R-WR, QRG,HF,RoHS/REACH | |
Riser Card | RSC-R2UW-E8R-UP | 1 | 2U RHS WIO Riser Card with a PCI-E x8 for UP MBs | |
Riser Card | RSC-R2UW-4E8 | 1 | 2U LHS WIO Riser card with four PCI-E x4 slots | |
Heatsink / Retention | SNK-P0048PS | 1 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB | |
Power Supply | PWS-501P-1R | 2 | 1U 500W Platinum redundant power supply |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
3.5" to 2.5" Converter Tray | MCP-220-00043-0N | $ 20.00 | 0 | Black Hot-swap Gen-4 2.5" to 3.5" HDD tray | ||
DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT5 | $ 70.50 | 1 | TEAC slim DVD-ROM SATA drive | ||
DVD-ROM / DVD-RW | DVM-PLDS-DVDRW-SBT5 | $ 47.50 | 1 | PHILPS slim DVD-RW SATA drive | ||
DVD-ROM Accessory | MCP-220-81502-0N | $ 23.00 | 1 | Slim SATA DVD mounting kit | ||
Cable for internal HDD | CBL-0484L | $ 11.50 | 2 | 55cm 30AWG SATA straight to straigh cable | ||
Cable for internal HDD | CBl-0289L | 1 | Y split, big 4 pin to two RA SATA power estenstion 30cm | |||
Storage Controller card & cable | AOC-S3108L-H8iR& 2x CBL-SAST-0556 | 0 | Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 | |||
Storage Controller card & cable | AOC-S3108L-H8iR-16DD& 2x CBL-SAST-0556 | 0 | Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8,16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60 | |||
Storage Controller card & cable | AOC-S3008L-L8i& 2x CBL-SAST-0556 | 0 | Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,63HDD, RAID 0, 1, 10 | |||
Storage Controller card & cable | AOC-S3008L-L8e& 2x CBL-SAST-0556 | 0 | Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8,122HDD HBA | |||
CacheVault | BTR-TFM8G-LSICVM02 &BKT-BBU-BRACKET-05 | 0 | CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCI-E location | |||
CacheVault | BTR-TFM8G-LSICVM02 &MCP-240-00127-0N | 0 | CacheVault for Broadcom 3108 with SuperCap mounting bracket for internal fixed bay | |||
Network Card(s) | AOC-SGP-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2 | |||
Network Card(s) | AOC-SGP-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350 | |||
Network Card(s) | AOC-STGN-i2S | $ 312.50 | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES | ||
Network Card(s) | AOC-STGF-i2S | 0 | Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2 | |||
Network Card(s) | AOC-STG-B4S | 0 | Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S | |||
Network Card(s) | AOC-STGS-i2T | $ 344.50 | 0 | Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2 | ||
Network Card(s) | AOC-S25G-b2S | 0 | Standard LP, 2x 25GbE SFP28, PCI-E x8, Broadcom BCM57414 | |||
Network Card(s) | AOC-S25G-m2S | 0 | Standard LP, 2x 25GbE SFP28, PCI-E x8, Mellanox CX-4 LX | |||
Front Bezels | MCP-210-82503-0B | $ 28.50 | 1 | Black front bezels | ||
TPM security module | AOM-TPM-9665V | $ 39.00 | 1 | TPM 2.0, vertical form factor | ||
TPM security module | AOM-TPM-9655V | $ 39.00 | 1 | TPM 1.2, vertical form factor | ||
Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
