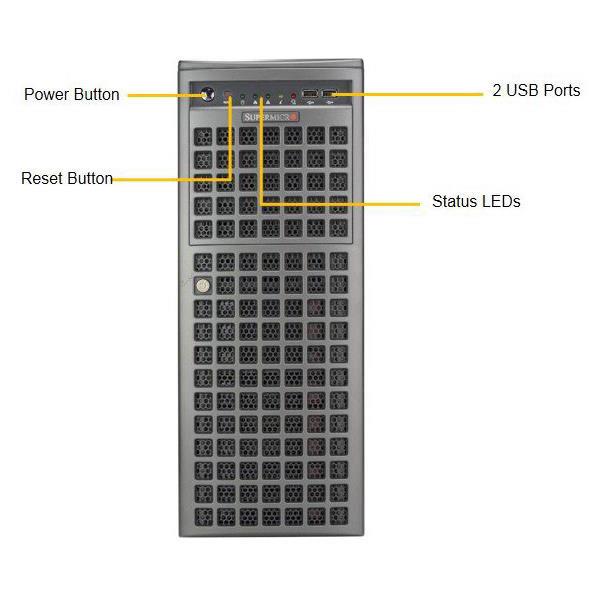

Supermicro SYS-7048GR-TR Tower Barebone Dual Processor
Onboard: SATA3 (6Gbps) RAID 0, 1, 5, 10
Supports Intel Xeon processor E5-2600 v4/v3
Up to 2TB DDR4-2400MHz LRDIMM in 16x 288-pin DIMM slots
Lan: 2 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port
Server Barebone Tower / 4U for Dual Intel Xeon processor E5-2600 v4/v3 families - Supports up to 2TB DDR4 ECC 3DS LRDIMM up to 2400MHz in 16x 288-pin sockets - On-Board : SATA3 6Gbps (RAID 0, 1, 5, 10), IPMI 2.0, Intel i350 2x Gigabit Ethernet, VGA - Includes 8x 3.5in Hot-Swap SAS/SATA Drive Trays, 3x 5.25in drive bays in storage module, 1x 3.5in fixed drive bay, 2x Heatsinks (SNK-P0050AP4), 2000W Redundant 80 Plus Titanium Certified Power Supply (2x PWS-2K04A-1R), MBD-X10DRG-Q Motherboard, CSE-747BTQ-R2K04B 4U Chassis - (Black)
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2. Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16 DIMM slots
3. 4 PCI-E 3.0 x16 slots 2 PCI-E 3.0 x8 (1 in x16) slots support Thunderbolt 2.0 AOC, 1 PCI-E 2.0 x4 (in x8) slot; Up to 4 NVIDIA® GPU
4. I/O ports: 1 VGA, 2 COM, 2 GbE, 10 USB 2.0, & 1 IPMI Dedicated LAN
5. 8 Hot-swap 3.5", 3 Fixed 5.25" and 1 Fixed 3.5" Drive Bays
6. 4 Heavy Duty Fans, 2 Exhaust Fans, and 2 Active Heatsink with Optimal Fan Speed Control
7. 2000W High efficiency (96%) Redundant PSU; Titanium Level
8. Tower or Rackmount
9. GPU Kit for passive GPU/Xeon Phi support (MCP-320-74701-0N-KIT)
Extra Specifications for Supermicro SYS-7048GR-TR Tower Barebone Dual Processor
| Motherboard | ||
| Motherboard | Super X10DRG-Q | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 160W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 1TB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1 Realtek RTL8211E PHY (dedicated IPMI) | ||
| Intel® i350 Dual Port Gigabit Ethernet | ||
| Video | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A) | |
| 4 USB 2.0 ports (2 rear, 2 via headers) | ||
| Audio | HD Audio | |
| Video | 1 VGA port | |
| Serial Port / Header | 2 COM ports (1 rear, 1 Header) | |
| Thunderbolt | Thunderbolt AOC Header | |
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 2.0 x4 (in x8) | |
| 4 PCI-E 3.0 x16 (double-width) | ||
| 2 PCI-E 3.0 x8 (1 in x16 slot) support Thunderbolt 2.0 AOC | ||
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| UEFI | ||
| APM 1.2 | ||
| DMI 2.2 | ||
| Chassis | ||
| Form Factor | 4U Rackmountable / Tower | |
| Optional Rackmount Kit | ||
| Model | CSE-747BTQ-R2K04B | |
| Dimensions and Weight | ||
| Height | 18.2" (462mm) | |
| Width | 7.0" (178mm) | |
| Depth | 26.5" (673mm) | |
| Package | 27" (H) x 13" (W) x 38" (D) | |
| Weight | Net Weight: 46 lbs (20.9 kg) | |
| Gross Weight: 62 lbs (28.1 kg) | ||
| Available Colors | Dark Gray | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Hard drive activity LED | |
| 2 Network activity LEDs | ||
| Power status LED | ||
| System Overheat & Power Fail LED | ||
| Ports | 2 Front USB 3.0 Ports | |
| Drive Bays | ||
| Hot-swap | 8 Hot-swap 3.5" SAS/SATA Drive Trays | |
| Peripheral Bay(s) | 3x 5.25" drive bays in storage module - rotates 90° for Rackmount | |
| 1x 3.5" fixed drive bay | ||
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | SAS / SATA Hard Drive Backplane with SES2 | |
| System Cooling | ||
| Fans | 4x 92x38mm 4-pin PWM Middle Cooling Fans | |
| 2 Rear exhaust fans | ||
| 2 Optional Rear fans (required for Passive GPUs) | ||
| Heatsink | 2 Active Heatsink with Optimal Fan Speed Control | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W: 100 – 127Vac | |
| 1800W: 200 – 220Vac | ||
| 1980W: 220 – 230Vac | ||
| 2000W: 230 – 240Vac | ||
| 2000W: 200 – 240Vdc (UL/cUL only) | ||
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| Input | 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz | |
| 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz | ||
| 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz | ||
| 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only) | ||
| 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz | ||
| +12V | Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only) | |
| Max: 83.3A / Min: 0A (100-127 Vac) | ||
| Max: 150A / Min: 0A (200-220 Vac) | ||
| Max: 165A / Min: 0A (220-230 Vac) | ||
| Max: 166.7A / Min: 0A (230-240 Vac) | ||
| +5Vsb | Max: 1A / Min: 0A | |
| Output Type | 27 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| CPU | 6-Phase-switching voltage regulator | |
| Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Total of eight fan headers supporting up to 8 fans | ||
| 8x fans with tachometer status monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| Thermal Control for 8x fan connectors | ||
| LED | CPU / System Overheat LED | |
| Suspend static indicator LED | ||
| UID/Remote LED | ||
| Other Features | Chassis intrusion detection | |
| Chassis intrusion header | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 7048GR-TR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRG-Q | 1 | Super X10DRG-Q Motherboard | |
| Motherboard / Chassis | CSE-747BTQ-R2K04B | 1 | 4U Chassis | |
| Backplane | BPN-SAS-747TQ | 1 | 8-port Tower/4U TQ (W/ AMI 9072) backplance, support up to 8x 3.5-inch SAS/SATA HDD/SSD | |
| Cable 1 | CBL-0484L | 8 | SATA,INT,ROUND,ST-ST,55CM,30AWG | |
| Cable 2 | CBL-CDAT-0661 | 2 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Manual | MNL-1709-QRG | 1 | SYS-7048GR-TR Quick Reference Guide,HF,RoHS/REACH | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Heatsink / Retention | SNK-P0050AP4 | 2 | 4U Active CPU Heat Sink for X9, X10 Workstations | |
| Power Supply | PWS-2K04A-1R | 2 | AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH | |
| Power Distributor | PDB-PT747-4648 | 1 | Power Distributor for SC747 with graphic output feature |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Mounting Rails | MCP-290-00059-0B | $ 106.50 | 1 | Rail set+handles, quick/quick, optional for 4U 17.2"W tower | ||
| GPU Kit | MCP-320-74701-0N-KIT | $ 103.00 | 1 | GPU Kit for passive GPU/Xeon Phi support, 1 kit supports up to 4 GPU | ||
| Cable | CBL-PWEX-0663 | $ 20.00 | 1 | PCIe 8 pin male (black) to CPU 8 pin female (white) power adapter, 5cm, 18AWG, 1 cable per passive GPU | ||
| Front Bezel | MCP-210-74703-0B | $ 26.00 | 1 | Front bezel cover (for 5.25" bay) for rackmount | ||
| Add-on Card Dummy | MCP-240-00096-0N | $ 33.50 | 1 | GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack | ||
| AOC Dummy Assembly | MCP-240-00096-0N | $ 33.50 | 0 | SC747B GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack | ||
| HDD Converter | MCP-220-93801-0B | $ 31.00 | 0 | Black Hotswap Gen 6 3.5 to 2.5 HDD Tray (SC747, 936, 938 and Blade) | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| Add-on Card | AOC-TBT-DSL5320 | 1 | Thunderbolt 2,W/Display and GPIO cable,HF,RoHS/REACH | |||
| DVD-RW with Cable | DVM-LITE-DVDRW24-HBT1 | $ 44.00 | 0 | BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF | ||
| DVD-RW with Cable | CBL-0082L | $ 17.00 | 0 | Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG | ||
| DVD-RW with Cable | CBL-0044L | $ 17.00 | 0 | SATA CABLE 57.5CM FLAT S-S PBF.26AWG flat |
