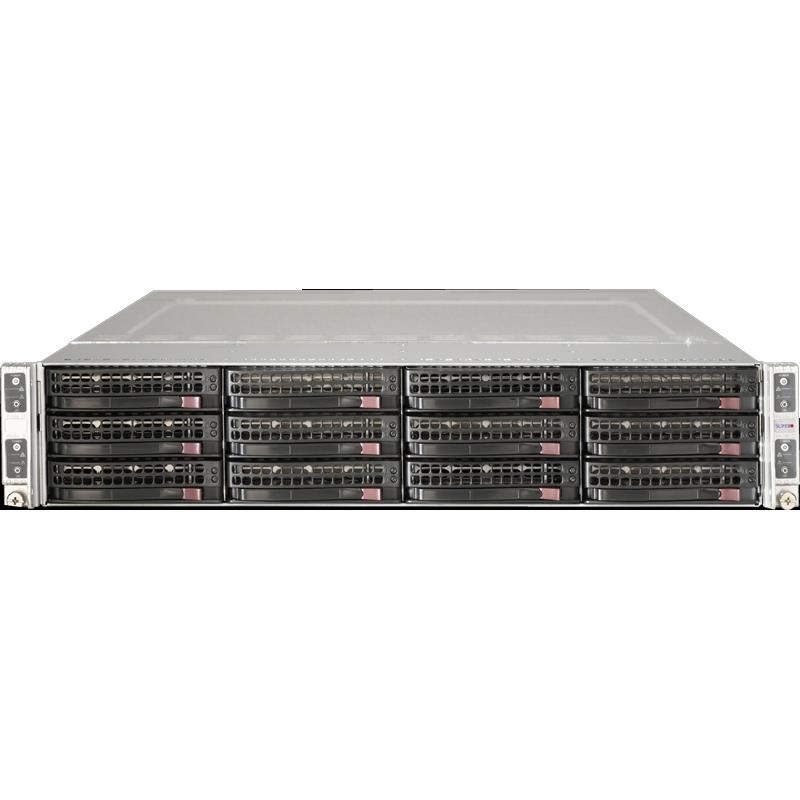

Supermicro SYS-6028TP-HC0TR Twin Barebone Dual CPU, 4-Node

• Compute Intensive Application
• Mini-mSATA (half size) support
• 3x Hot-swap HDD Bays (per Node)
• Four hot-pluggable systems (nodes)

Barebone Server 2U TwinPro2 with Four Systems (Nodes) - Per Node : Dual Intel Xeon E5-2600 v4/v3 sockets, up to 2TB DDR4 ECC 3DS LRDIMM up to 2400MHz in 16x 288-pin slots - On-Board (per Node) : LSI 3008 SAS3 12Gbps controller (RAID 0, 1, 10), IPMI 2.0, Intel X540 2x 10GBase-T Ethernet, VGA - Includes (per Node) : 3x 3.5in Hot-swap SAS/SATA HDD Trays, 1x Riser Card (RSC-R1UTP-E16R), 2x Heatsinks (1x SNK-P0057PS and 1x SNK-P0047PSM) - System includes : 2000W Redundant 80 Plus Titanium or Platinum Power Supply (2x PWS-2K04A-1R or 2x PWS-2K02P-1R), 4x X10DRT-PT Motherboards, and 1x SC827HQ+-R2K04B 2U Chasssis (Black) Please contact Wiredzone Technical Support for additional information about frequency optimized CPUs and specialized system optimization.


    4,152.00 4,152.00 4152.0 USD

    4,152.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • Mini-mSATA (half size) support
    • Intel X540 Dual port 10GBase-T
    • 3x 3.5 Hot-swap SAS/SATA HDD Bays
    • LSI 3008 SAS3 controller (8 ports); RAID 0, 1, 10
    • 1x PCI-E 3.0 x16 Low-profile slot; 1x 0 slot (x16)
    • Integrated IPMI 2.0 with KVM and Dedicated LAN
    • Four hot-pluggable systems (nodes) in a 2U form factor
    • 2000W Redundant Power Supplies Platinum Level (94%)
    • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2400MHz; 16x DIMM slots
    • Dual socket R (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s

    Extra Specifications for Supermicro SYS-6028TP-HC0TR Twin Barebone Dual CPU, 4-Node

    Main Specifications
    Built-in Devices Super X10DRT-PT
    Device Type SuperServer
    Dimensions (WxDxH) W 17.25" (438mm) x H 3.47" (88mm) x D 30" (762mm)
    Enclosure Color Black
    Form Factor 2U Rackmount - CSE-827HQ+-R2K02B
    Weight 85 lbs (38.6kg)
    Processor/Cache (per Node)
    Compatible processor Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP)
    Compatible Socket Dual Socket R3 (LGA 2011)
    Cores / Cache Up to 22 Cores / Up to 55MB Cache
    QPI QPI up to 9.6 GT/s
    System Memory (per Node)
    DIMM Sizes RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
      LRDIMM: 64GB, 32GB
      3DS LRDIMM: 128GB
    Error Detection Corrects single-bit errors
    Memory Capacity Up to 2TB ECC 3DS LRDIMM, 512 ECC RDIMM
      16x 288-pin DDR4 DIMM slots
    Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
    Memory Voltage 1.2 V
    On-Board Devices
    Chipset Intel® C612 Express chipset
    Graphics ASPEED AST2400 BMC
    IPMI IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
      ASPEED AST2400 BMC
      Support for Intelligent Platform Management Interface v.2.0
    Network Controllers Virtual Machine Device Queues reduce I/O overhead
      Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
      1x Realtek RTL8201N PHY (dedicated IPMI)
      Intel® X540 Dual port 10GBase-T
    SAS LSI 3108 SAS3 (12Gbps) controller, RAID 0, 1, 5, 10 support - Optional SuperCap
    Input / Output (per node)
    LAN 2x RJ45 10GBase-T ports, 1x RJ45 Dedicated IPMI LAN port
    SAS 3x SAS3 (12Gbps) ports
    Serial Port / Header 1x Fast UART 16550 port / 1 Header
    USB 2x USB 3.0 ports total (2x rear)
    VGA 1x VGA port
    Front Panel
    Buttons Power On/Off button, System Reset button, UID button
    LEDs Power status LED, HDD activity LED, 2x Network activity LEDs, Universal Information (UID) LED
    Expansion Slots (per node)
    PCI-Express 1x PCI-E 3.0 x16 Low-profile slot
      1x "0 slot" (x16)- (Both CPUs need to be installed for full access to PCI-E slots and 0 slot.)
    Drive Bays (per Node)
    Hot-swap 3x 3.5" Hot-swap SAS/SATA HDD trays
    System Cooling
    Fans 4x 8cm heavy duty PWM fans with optimal fan speed control
    Power Supply
    Certification 80PLUS Platinum Certified
    Power Supply 2000W Redundant Power Supplies with I2C & PMBus
    System BIOS
    BIOS Features Plug and Play (PnP), APM 1.2, PCI 2.2, ACPI 1.0 / 2.0, USB Keyboard support, SMBIOS 2.3, UEFI
    BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
    Operating Environment / Compliance
    Non-Operating Relative Humidity 5% to 95% (non-condensing)
    Non-Operating Temperature -40°C to 70°C (-40°F to 158°F)
    Operating Relative Humidity 8% to 90% (non-condensing)
    Operating Temperature 10°C to 35°C (50°F to 95°F)
    RoHS RoHS Compliant
    Parts List - (Items Included)
    Air Shroud MCP-310-21703-0B or MCP-310-21702-0B
    Backplane 1x BPN-SAS3-827HQ, 4x BPN-ADP-S3008L-L6IP
    Heatsink / Retention 4x SNK-P0057PS, 4x SNK-P0047PSM
    Label 1x LBL-0108
    Manual 1x MNL-1663-QRG
    Motherboard / Chassis 4x MBD-X10DRT-PT / 1x CSE-827HQ+-R2K02B
    Power Supply PWS-2K04A-1R or PWS-2K02P-1R
    Riser Card 4x RSC-R1UTP-E16R-O-P
