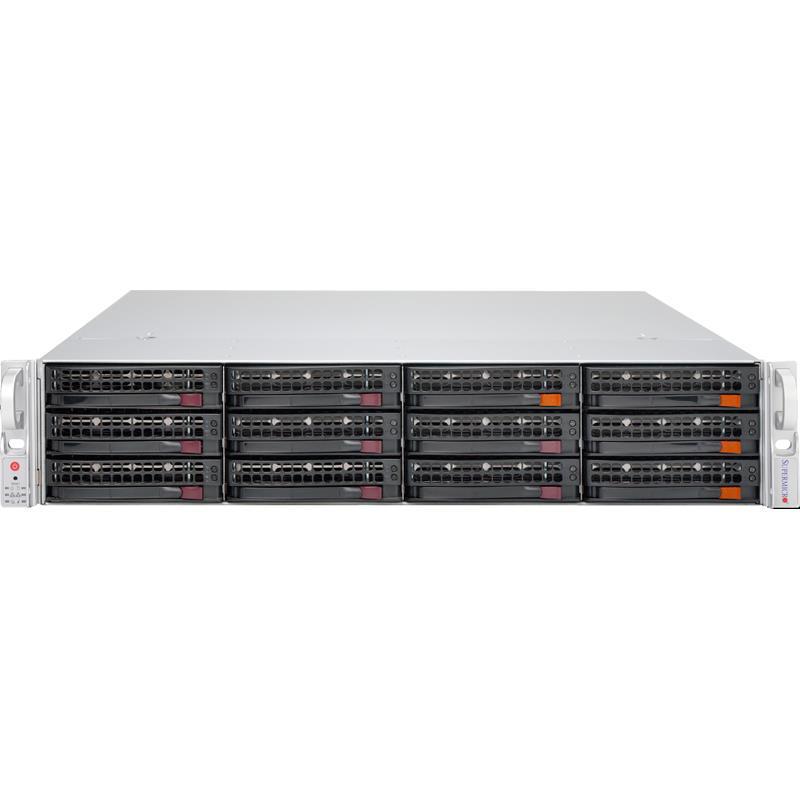

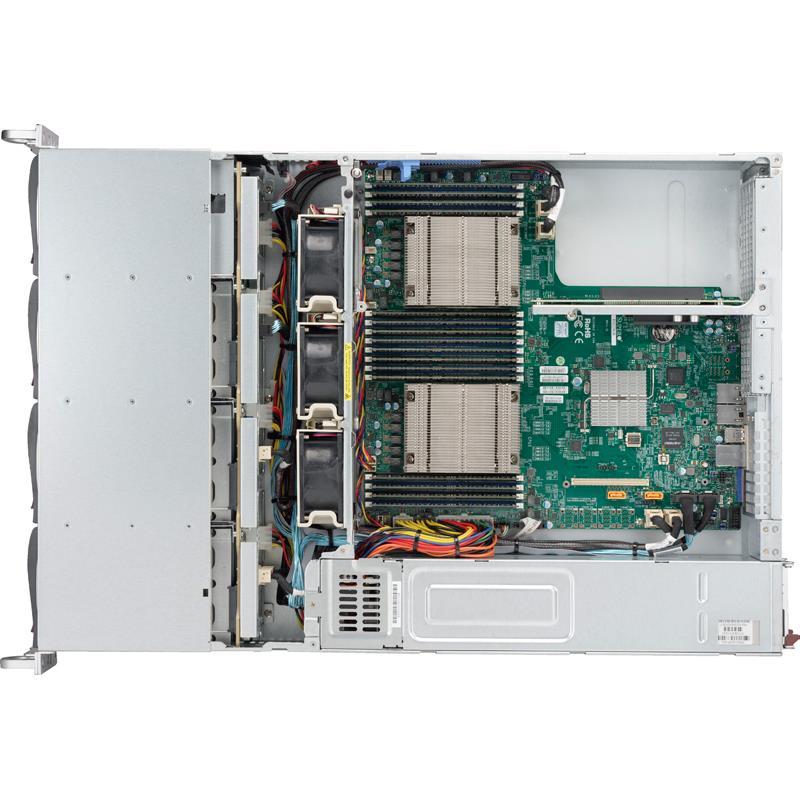

Supermicro SYS-6028R-TDWNR 2U Barebone Dual Intel Processor
• Data Center Optimized
• Support 4x 2.5" NVMe Drive Bays
Server Barebone 2U for Dual Intel Xeon processor E5-2600 v3 family - Supports up to 1TB DDR4 ECC LRDIMM (or) up to 512GB DDR4 ECC RDIMM up to 2133MHz (16x 288-pin DDR4 DIMM sockets) - On-Board : SATA3 (6Gbps) with RAID 0 / 1 / 5 / 10, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, Intel i350 2x Gigabit Ethernet, ASPEED AST2400 BMC Video - Includes : 8x 3.5in Hot-swap SATA3 drive trays, 4x 2.5in NVMe drive trays, 2x Riser Cards (1x RSC-R2UW-2E8E16+ and 1x RSC-R2UW-E8R-UP), 2x Heatsink / Retention (SNK-P0048PS), Rail Set (MCP-290-00053-0N) - System includes : 920W Redundant 80 Plus Titanium Power Supply w/ Quiet Mode (2x PWS-920P-SQ), X10DDW-iN Motherboard, CSE-826BAC4-R920WB 2U Chassis (Black)
This product is no longer available.
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16x DIMM slots
3. 1x PCI-E 3.0 x16 (FHHL) 2x PCI-E 3.0 x8 (FHHL) 1x PCI-E 3.0 x8 (LP)
4. 8x 3.5" Hot-swap SATA3 + 4x 2.5" NVMe Drive Bays
5. Intel® i350 Dual-Port 1GbE LAN
6. I/O ports: 1x VGA, 2x USB 3.0, 2x USB 2.0
7. 920W Redundant Power Supplies Platinum Level Certified
8. 2x SuperDOM (Disk on Module) ports
9. IPMI 2.0 + KVM with Dedicated LAN
Extra Specifications for Supermicro SYS-6028R-TDWNR 2U Barebone Dual Intel Processor
| Motherboard | ||

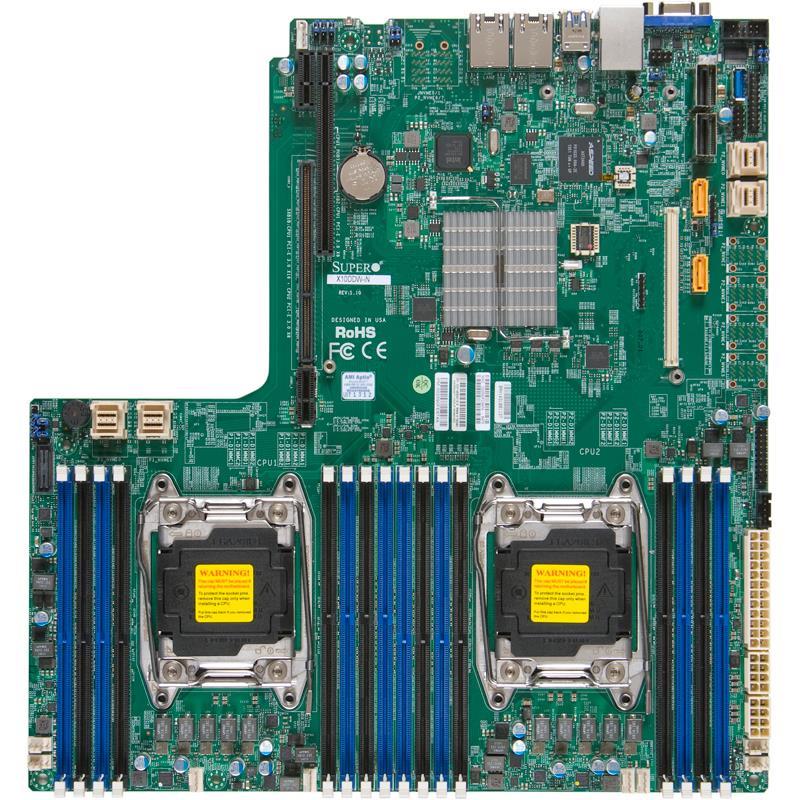

| Motherboard | Super X10DDW-iN | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 1TB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1x Realtek RTL8211E PHY (dedicated IPMI) | ||
| Intel® i350 Dual Port Gigabit Ethernet | ||
| Video | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA | 8x SATA3 (6Gbps) ports | |
| I-SATA 4 & I-SATA 5 support SATA DOM | ||
| NVMe | 4x Internal NVMe ports | |
| LAN | 1x RJ45 Dedicated IPMI LAN port | |
| 2x RJ45 Gigabit Ethernet LAN ports | ||
| USB | 3x USB 3.0 ports (2 rear, 1 Type A) | |
| 4x USB 2.0 ports (2 rear, 2 headers) | ||
| Video | 1x VGA port | |
| Serial Port / Header | 1x COM port (header) | |
| DOM | 2x Super DOM (Disk on Module) ports | |
| Management | ||
| Software | Watch Dog | |
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-826BAC4-R920WB | |
| Dimensions and Weight | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 25.5" (648mm) | |
| Package | 26.7" (W) x 11.4" (H) x 34.5" (L) | |
| Weight | 64 lbs (29.0 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power status LED | |
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| 2x Network activity LEDs | ||
| Power fail LED | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x8 (LP) slot | |
| 1 PCI-E 3.0 x16 (FHHL) slot | ||
| 2 PCI-E 3.0 x8 (FHHL) slots | ||
| Drive Bays | ||
| Hot-swap | 8x 3.5" Hot-swap SATA3 Drive Bays | |
| 4x 2.5" NVMe Drive Bays | ||
| Backplane | ||
| Backplane | - SAS3/SATA3 Backplane - 4x 2.5" NVMe drives | |
| System Cooling | ||
| Fans | 3x 8cm fans with optimal fan speed control | |
| Power Supply | ||
| Power Supply | 920W Redundant High-Efficiency Power Supplies w/ Power Distributor, PMBus 1.2, I 2 C, and PFC | |
| AC Input | 100-240 V, 50-60 Hz, 11-4.5 Amp | |
| DC Output | +5V standby: 4A | |
| +12V: 75A | ||
| With Power Distributor | -12V: 0.6A | |
| +5V: 45A | ||
| +3.3V: 24A | ||
| Certification | Platinum Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| SMBIOS 2.3 | ||
| UEFI | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| BIOS resuce hot keys | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 5°C to 40°C (41°F to 104°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 6028R-TDWNR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DDW-iN | 1 | Super X10DDW-iN Motherboard | |
| Motherboard / Chassis | CSE-826BAC4-R920WB | 1 | 2U Chassis | |
| Air Shroud | MCP-310-29017-0B | 1 | SC826B/216B mylar shroud for X10DDW,HF,RoHS/REACH | |
| Backplane | BPN-SAS3-826A-N4 | 1 | 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices | |
| Cable 1 | CBL-SAST-0507-01 | 2 | MINI SAS HD-MINI SAS,6G,INT,80CM,SB,28AWG | |
| Cable 2 | CBL-SAST-0623 | 2 | MINI SAS HD,INT,PCIe NVMe SSD, 45CM,30AWG | |
| Cable 3 | CBL-SAST-0590 | 2 | MINI SAS HD,INT,PCIe NVMe SSD, 70CM,30AWG | |
| Parts | MCP-240-00146-0N | 1 | 2U WIO Half Length riser card bkt for SC825, 826, 213, 216,RoHS/REACH | |
| Drive Tray(s) | MCP-220-00116-0B | 4 | Black gen-5 3.5-to-2.5 NVMe drive tray, Orange tab (for hotswap NVMe drive),RoHS/REACH | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Manual | MNL-1698-QRG | 1 | SYS-6028R-TDWNR, QRG,HF,RoHS/REACH | |
| Riser Card | RSC-R2UW-E8R-UP | 1 | 2U RHS WIO Riser Card with a PCI-E x8 for UP MBs | |
| Riser Card | RSC-R2UW-2E8E16+ | 1 | RSC-R2UW-2E8E16+-O-P | |
| Heatsink / Retention | SNK-P0048PS | 2 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB | |
| Power Supply | PWS-920P-SQ | 2 | 920W 1U Redundant PWS W/ Quiet Mode | |
| Rail Set | MCP-290-00053-0N | 1 set | Rail set, quick/quick, default for 2,3U 17.2"W |
