Supermicro SYS-6028R-T 2U Barebone Dual Intel Processor
• Cloud and Virtualization needs
• Compute Intensive Application
• Database Processing and Storage
• High Availability Storage
• Mission-critical Applications
Server Barebone 2U for Dual Intel Xeon processor E5-2600 v3 family - Supports up to 1TB DDR4 ECC LRDIMM (or) up to 512GB DDR4 ECC RDIMM up to 2133MHz (16x 288-pin DDR4 DIMM sockets) - On-Board : SATA3 (6Gbps) with RAID 0 / 1 / 5 / 10, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, Intel i350 2x Gigabit Ethernet, ASPEED AST2400 BMC Video - Includes : 6x 3.5in Hot-swap SATA HDD trays, 2x Heatsink / Retention (SNK-P0048PS) - System includes : 650W Single 80 Plus Gold Power Supply (PWS-653-2H), X10DRi Motherboard, CSE-823TQ-653LPB 2U Chassis (Black)
This product is no longer available.
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16x DIMM slots
3. 3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 slots
4. Intel® i350 Dual port GbE LAN
5. Intel C612 controller for SATA3 ports; RAID 0, 1, 5, 10
6. 6x 3.5" Hot-swap SATA3 HDD Bays
7. 650W High-efficiency Power Supply Gold Level
Extra Specifications for Supermicro SYS-6028R-T 2U Barebone Dual Intel Processor
| Motherboard | ||

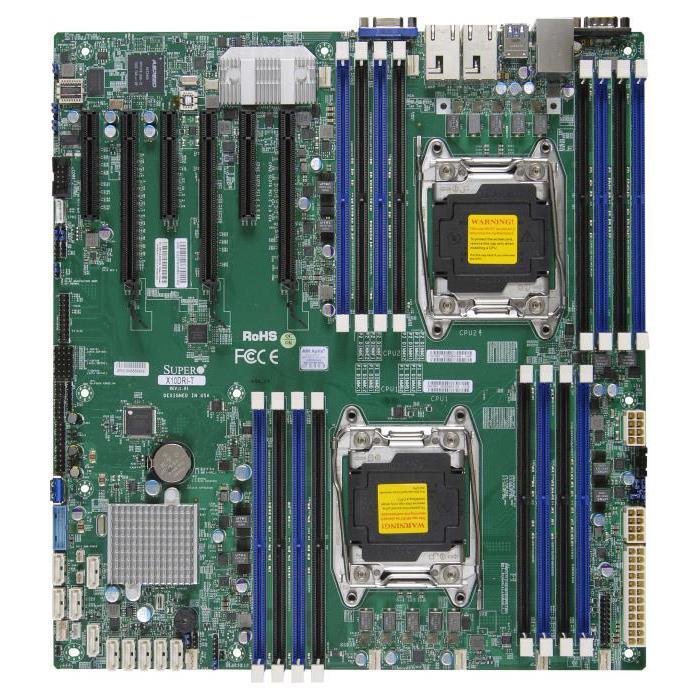

| Motherboard | Super X10DRi | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 512GB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA 3.0 (6Gbps) with RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1x Realtek RTL8201N PHY (dedicated IPMI) | ||
| Intel® i350 Dual Port Gigabit Ethernet | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output | ||
| Serial ATA | 6x SATA3 (6Gbps) ports | |
| 2x SATA3 (6Gbps) ports onboard | ||
| 2x SATA3 powered ports that support SATA DOM | ||
| LAN | 1x RJ45 Dedicated IPMI LAN port | |
| 2x RJ45 Gigabit Ethernet LAN ports | ||
| USB | Rear USB: 2x USB 3.0 + 2x USB 2.0 | |
| USB Header: 2x 3.0, 4x 2.0, 1x Type A | ||
| VGA | 1x VGA port | |
| Serial Port / Header | 1x COM Port | |
| Management | ||
| Software | Watch Dog | |
| Intel Node Manager | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| NMI, SPM, SUM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI / APM Power Management | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |

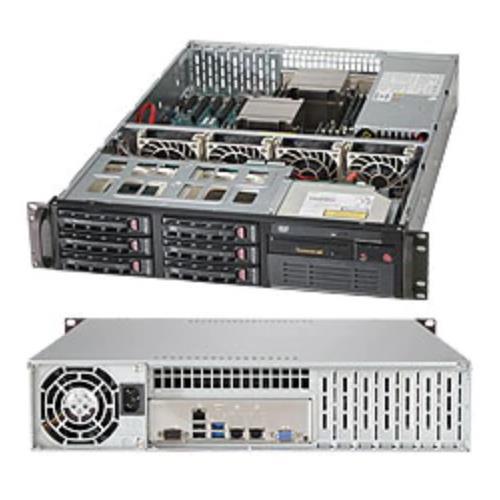

| Model | CSE-823TQ-653LPB | |
| Dimensions and Weight | ||
| Width | 19" (490mm) | |
| Height | 3.5" (89mm) | |
| Depth | 27" (680mm) | |
| Package | 9.7" (H) x 24" (W) x 28" (D) | |
| Weight | Net Weight: 31 lbs (14.2 kg) | |
| Gross Weight: 51.5 lbs (23.6 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| UID button | ||
| LEDs | Power status LED | |
| HDD activity LED | ||
| 2x Network activity LEDs | ||
| System information (overheat/UID) LED | ||
| Expansion Slots | ||
| PCI-Express | 3x PCI-E 3.0 x16 (Low-profile) | |
| 3x PCI-E 3.0 x8 (Low-profile) | ||
| Drive Bays | ||
| Hot-swap | 6x 3.5" Hot-swap SATA HDD trays | |
| Backplane | ||
| Backplane | 2U SAS/SATA backplane | |
| System Cooling | ||
| Fans | 4x 80cm hot-swap redundant PWM cooling fans | |
| Power Supply | ||
| Power Supply | 650W AC-DC High Efficiency Power Supply | |
| AC Input | 100 - 140V, 8-5.2A 180-240V 4.2-3.1A, 50-60Hz | |
| +5V | 30 Amp | |
| +5V standby | 4 Amp | |
| +12V | 100-140Vac 49Amp 180-240Vac 54Amp | |
| -12V | 0.5 Amp | |
| +3.3V | 25 Amp | |
| Certification | Gold Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 6028R-T (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRi | 1 | Super X10DRi Motherboard | |
| Motherboard / Chassis | CSE-823TQ-653LPB | 1 | 2U Chassis | |
| Backplane | BPN-SAS-823TQ | 1 | 6-port 2U TQ (W/ AMI 9072) backplane, support up to 6x 3.5-inch SAS/SATA HDD | |
| Cable 1 | CBL-0484L | 3 | SATA,INT,ROUND,ST-ST,55CM,30AWG | |
| Cable 2 | CBL-0483L | 3 | SATA,INT,ROUND,ST-ST,29CM,30AWG | |
| Cable 3 | CBL-CDAT-0661 | 2 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Manual | MNL-1578-QRG | 1 | SYS-6028R-T/SYS-6028R-TT, QRG,HF,RoHS/REACH,PBF | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Heatsink / Retention | SNK-P0048PS | 2 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB | |
| Power Supply | PWS-653-2H | 1 | 2U 650W Multi Output Power Supply High Efficiency |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Storage ControllerCard(s) & Cables(s) | AOC-S3008L-L8i &2x CBL-SAST-0699 | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3, 63HDD;RAID 0, 1, 10 | |||
| Storage ControllerCard(s) & Cables(s) | AOC-S3008L-L8e &2x CBL-SAST-0699 | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD;HBA | |||
| Storage ControllerCard(s) & Cables(s) | AOC-S3108L-H8IR &2x CBL-SAST-0699 | 0 | Standard LP, 8 internal ports (12Gb/s) 8x Gen3;RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Storage ControllerCard(s) & Cables(s) | AOC-S3108L-H8IR-16DD &2x CBL-SAST-0699 | 0 | Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD;RAID 0, 1, 5, 6, 10, 50, 60 | |||
| Cable 1 | CBL-0341L | $ 17.00 | 0 | USB 2.0,INT,LCD,DVD,1X4/P2.54 TO 2X5/P2.54,70CM,28/24AWG | ||
| Cable 2 | CBL-0210L | $ 17.00 | 0 | FDD, DVD, 4 pin power adapter cable, 8cm. 24AWG | ||
| Peripheral Drive 1 | DVM-TEAC-DVD-SBT2 | 0 | BLACK TEAC SLIM DVD ROM SATA DRIVE ROHS | |||
| Peripheral Drive 2 | CDM-USATA-G | $ 23.00 | 0 | mini-SATA to USB adapter for slim DVD | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
