- Supermicro SYS-2028U-TR4+ 2U Barebone Dual Intel Processor

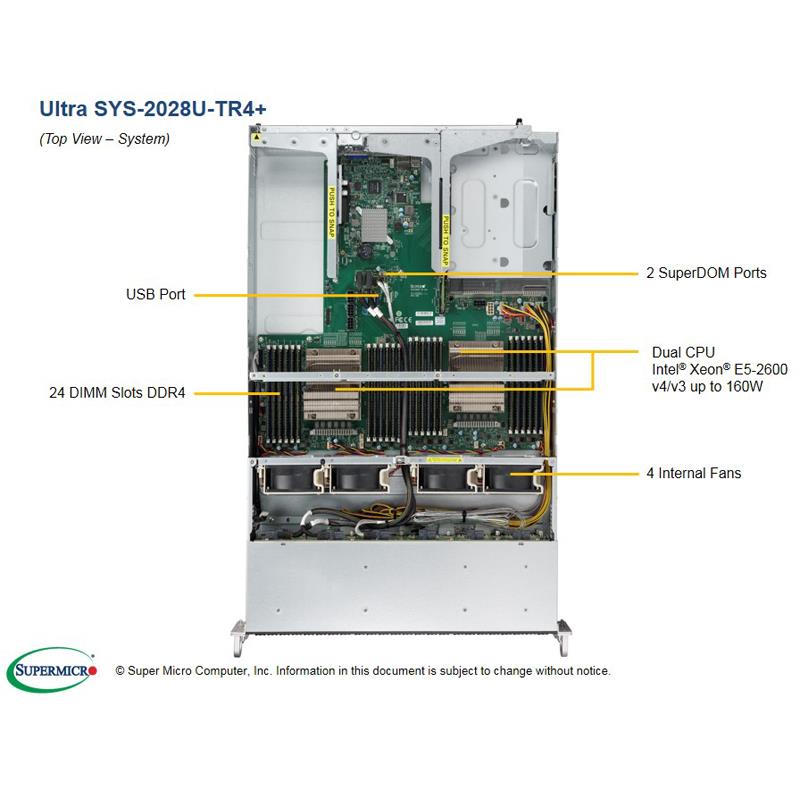

Supermicro SYS-2028U-TR4+ 2U Barebone Dual Intel Processor
• Flexible Connectivity Options
Server Rackmount 2U for Dual Intel Xeon processor E5-2600 v4/v3 family, 1.5TB DDR4 LRDIMM, SATA3, IPMI, 4x Gigabit LAN, VGA, 24x 2.5in Hot-swap HDD bays, 1000W Redundant 80+ Titanium Power Supply, X10DRU-i+ Mtoherboard, CSE-219UAC-R1K02 2U Chassis (Black)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs and 4 DIMMs).
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2. Up to 3TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 24 DIMM slots
3. 1 PCI-E 3.0 x16 slot (FH, 10.5" L), 7 PCI-E 3.0 x8 slots (5 FH, 10.5" L, 1 LP, 1 Internal LP)
4. 4 Gigabit Ethernet ports
5. 24 Hot-swap 2.5" Drive Bays: 10 SATA3 ports by default; Optional drive support: 24 SAS3; Optional 2 hot-swap 2.5" rear drive bays for SSDs
6. 4 heavy duty fans w/ optimal fan speed control
7. 1000W High efficiency (96%) Redundant PSU; Titanium Level
Extra Specifications for Supermicro SYS-2028U-TR4+ 2U Barebone Dual Intel Processor
| Motherboard | ||
| Motherboard | Super X10DRU-i+ | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 160W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 24x 288-pin DDR4 DIMM slots | |
| Up to 3TB † ECC 3DS LRDIMM, 1.5TB ECC RDIMM/LRDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| 2666/2400 ECC DDR4 NVDIMM | ||
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| NVDIMM: 16GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Connectivity | 1x Realtek RTL8211E PHY (dedicated IPMI) | |
| Intel® i350 Gigabit Ethernet Controller | ||
| 4x GbE ports via AOC-2UR68-i4G | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output | ||
| SATA | 10x SATA3 (6Gbps) ports | |
| SAS | 24x SAS3 ports support via optional Add-on Cards | |
| LAN | 1x RJ45 Dedicated IPMI LAN port | |
| 4x Gigabit Ethernet LAN ports | ||
| USB | 5x USB 3.0 ports (2 rear, 2 onboard header, 1 Type A) | |
| Video | 1x VGA Connector | |
| Serial Port / Header | 1x Serial header | |
| DOM | 2x Super DOM (Disk on Module) ports | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager 3.0 | ||
| SUM and SSM | ||
| Optional IPMI 1.5 / 2.0 | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-219UAC-R1K02-T | |
| Dimensions and Weight | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 27.76" (705.3mm) | |
| Weight | Net Weight: 36 lbs (16.4 kg) | |
| Gross Weight: 72 lbs (32.7 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power status LED | |
| HDD activity LED | ||
| 2x Network activity LEDs | ||
| System information (overheat/UID) LED | ||
| Expansion Slots | ||
| PCI-Express | 1x PCI-E 3.0 x16 slot (FH, 10.5" L) | |
| 7x PCI-E 3.0 x8 slots (5x FH, 10.5" L, 1x LP, 1x Internal LP) | ||
| Drive Bays | ||
| Hot-swap | 24x Hot-swap 2.5" Drive Bays: 10x SATA3 ports by default | |
| Optional drive support: 24x SAS3 | ||
| Backplane | ||
| Backplane | 2U SAS/SATA backplane | |
| System Cooling | ||
| Fans | 4x 8cm heavy duty PWM fans | |
| Power Supply | ||
| Power Supply | 1000W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 127Vac | |
| 1000W: 200 – 240Vac | ||
| 1000W: 200 – 240Vdc (for CCC only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 100-127Vac / 9.8 - 7A / 50-60Hz | |
| 200-240Vac / 7 - 5A / 50-60Hz | ||
| 200-240Vdc / 7 - 5A (for CCC only) | ||
| +12V | Max: 66.7A / Min: 0A (100-127Vac) | |
| Max: 83A / Min: 0A (200-240Vac) | ||
| Max: 83A / Min: 0A (200-240Vdc) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| Voltage | Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. | |
| 5+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| 8x 4-pin fan headers | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| Thermal Control for 8x Fan Connectors | ||
| Support to monitor Supermicro AOC temperatures from IPMI or SD 5 | ||
| LED | UID/Remote UID | |
| CPU / System Overheat LED | ||
| Suspend static indicator LED | ||
| Memory DIMM ECC error LEDs | ||
| Other Features | Chassis intrusion detection | |
| Chassis intrusion header | ||
| SDDC Support | ||
| RoHS | ||
| 4x 8-pin GPU power connectors | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 5°C to 40°C (41°F to 104°F) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 2028U-TR4+ (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRU-i+ | 1 | Super X10DRU-i+ Motherboard | |
| Motherboard / Chassis | CSE-219UAC-R1K02-T | 1 | 2U Chassis | |
| Add-on Card / Module | AOC-2UR68-I4G-P | 1 | 2U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports, 1 internal PCI-E x8 3.0 slot, 1 PCI-E x16 3.0, and I PCI-E x8 3.0 (in x16 slot) | |
| Air Shroud | MCP-310-82912-0N | 1 | - | |
| Backplane | BPN-SAS3-216A | 1 | 24-port 2U SAS3 12Gbps direct-attached backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-SAST-0657 | 2 | MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG | |
| Cable 2 | CBL-SAST-0591 | 1 | MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,75CM,75CM SB,30AWG | |
| Cable 3 | CBL-PWEX-0673 | 3 | 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Manual | MNL-1695-QRG | 1 | SYS-2028U-T(N)R(4/4T/T/TP)+, QRG,HF,RoHS/REACH | |
| Riser Card | RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot | |
| Riser Card | RSC-R2UW-4E8 | 1 | 2U LHS WIO Riser card with four PCI-E x4 slots | |
| Heatsink / Retention | SNK-P0058PSU | 2 | 2U Passive CPU Heat Sink for X10 2U 24-DIMM Ultra Series Servers,RoHS/REACH | |
| Power Supply | PWS-1K02A-1R | 2 | 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH | |
| Mounting Rails | MCP-290-00053-0N | 1 | Inner/outer rail set, quick-release type, 26.5" to 36.4" | |
| Mounting Rails | MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Mounting Rails | MCP-290-00053-0N | $ 100.00 | 0 | Inner/outer rail set, quick-release type, 26.5" to 36.4" | ||
| Mounting Rails | MCP-290-00060-0N | 0 | Threaded rail adapter default for round hole rack | |||
| 2U Ultra optional rear drive kit | MCP-240-82922-0N-OEM &MCP-240-82915-0N-OEM | 1 | Rear 2x2.5" HDDs riser bracket kit for SC829U/219U, tool-less | |||
| 2U Cable Management Arm | MCP-290-00128-0N &MCP-290-00127-0N | 1 | 2U Supermicro Cable Management Arm 2nd Gen (Compatible for racks that are 42" in depth) | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8e &2x CBL-SAST-0593 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | |||
| Storage Control Card and Cable(s) | AOC-S3008L-L8i &2x CBL-SAST-0593 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | |||
| Storage Control Card and Cable(s) | AOC-S3108L-H8iR &2x CBL-SAST-0593 | 0 | Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | |||
| Network Card(s) | AOC-SGP-i2/4 | 0 | Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350 | |||
| Network Card(s) | AOC-STGN-i1S/i2S | 0 | Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN | |||
| Network Card(s) | AOC-STG-b4S | 0 | Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S | |||
| Network Card(s) | AOC-STG-i2T | $ 312.50 | 0 | Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540 | ||
| Network Card(s) | AOC-STG-i2 | 0 | Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB | |||
| Network Card(s) | AOC-S40G-i2Q | $ 385.00 | 0 | Standard LP 2-port 40GbE controller, based on Intel Fortville XL710 | ||
| Network Card(s) | More | 0 | AOC Compatibility Matrix | |||
| CacheVault(s) | BTR-CV3108-U1 | $ 328.00 | 0 | CacheVault for Broadcom 3108 with Supercap mounting for 2U Ultra | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
