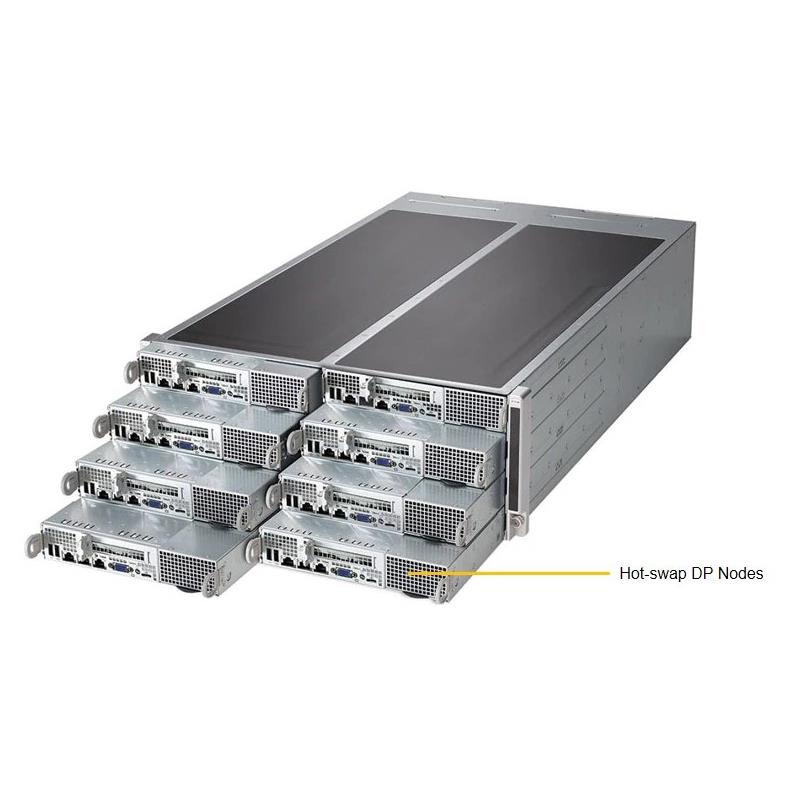

Supermicro SYS-F618R3-FT Twin Barebone Dual CPU, 8-Node
Server 4U Rackmount FatTwin with 8 Systems (Nodes) - Each Node Supports : Up to two Intel Xeon E5-2600 v4/v3 series - up to 1TB DDR4 ECC 3DS LRDIMM, up to 2400MHz memory in 8x 288-pin sockets - On-Board (per Node) : SATA3 6Gbps (RAID 0, 1), IPMI 2.0, 2x Gigabit Ethernet, VGA - Included (per Node) : 2x 3.5in Fixed SATA HDD trays, 1x Riser Card (RSC-R1UFF-E16), 2x Heatsinks (1x SNK-P0057P, 1x SNK-P0047P) - System includes : 1620W Redundant 80 Plus Platinum Level Certified Power Supply (4x PWS-1K62P-1R), 8x MBD-X10DRFF Motherboard, 1x CSE-F418IL-R1K62B 4U Chassis - Black Please contact Wiredzone Technical Support for additional information about frequency optimized CPUs and specialized system optimization
This product is no longer available.
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 1TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 8x DIMM slots
3. 1x PCI-E 3.0 x16 (LP) slot
4. I/O ports: 2 GbE ports, 1 Built-in video, 2 USB 3.0 ports
5. Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
6. 2x 3.5" Fixed SATA HDD Bays
7. 1620W Redundant Power Supplies Platinum Level (94%)
Extra Specifications for Supermicro SYS-F618R3-FT Twin Barebone Dual CPU, 8-Node
| Motherboard | ||
| Motherboard | Super X10DRFF | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 8x 288-pin DDR4 DIMM slots | |
| Up to 1TB † ECC 3DS LRDIMM, 512GB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1x Realtek RTL8211E PHY (dedicated IPMI) | ||
| Dual Intel® i210 Single Port Gigabit Ethernet | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output (per node) | ||
| SATA | 2x SATA3 (6Gbps) ports | |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports | |
| 1x RJ45 Dedicated IPMI LAN port | ||
| USB | 2x USB 3.0 ports | |
| VGA | 1x VGA port | |
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSE-F418IL-R1K62BP | |
| Dimensions and Weight | ||
| Width | 17.63" (448mm) | |
| Height | 6.96" (177mm) | |
| Depth | 29" (737mm) | |
| Package | 28.3" (W) x 15.0" (H) x 42.4" (D) | |
| Weight | Net Weight: 150 lbs (68.04 kg) | |
| Gross Weight: 200 lbs (90.71 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Power status LED | |
| 2x Network activity LEDs | ||
| Expansion Slots (per node) | ||
| PCI-Express | 1x PCI-E 3.0 x16 Low-profile via riser card | |
| Drive Bays (per node) | ||
| Fixed | 2x 3.5" Fixed SATA HDD trays | |
| System Cooling | ||
| Fans | 8x 8cm 9.5K RPM Rear Fans | |
| Power Supply | ||
| Power Supply | 1620W high-efficiency redundant power supply w/ PMBus | |
| AC Input | 1000W Output @ 100-120V, 12-10A, 50-60Hz | |
| 1200W Output @ 120-140V, 12-10A, 50-60Hz | ||
| 1620W Output @ 180-240V, 10.5-8A, 50-60Hz | ||
| DC Output | 1000W: +12V/84A; +5Vsb/4A | |
| 1200W: +12V/100A; +5Vsb/4A | ||
| 1620W: +12V/150A; +5Vsb/4A | ||
| Certification | Platinum Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer F618R3-FT (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRFF | 8 | Super X10DRFF Motherboard | |
| Motherboard / Chassis | CSE-F418IL-R1K62BP | 1 | 4U Chassis | |
| Cable 1 | CBL-0487L | 8 | 8 Pin to 2 SATA Power cable 25cm and 35cm. 18AWG | |
| Cable 2 | CBL-0488L | 16 | SATA,INT,ROUND,ST-RA,55CM,30AWG | |
| Cable 3 | CBL-PWCD-0900 | 4 | PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG | |
| Manual | MNL-1653-QRG | 1 | Quick Reference Guide for SYS-F618R3-FT,HF,RoHS/REACH | |
| Riser Card | RSC-R1UFF-E16 | 8 | 1U LHS FatTwin Riser Card with PCI-E x16 | |
| Heatsink / Retention | SNK-P0047P | 8 | 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Square ILM MB | |
| Heatsink / Retention | SNK-P0057P | 8 | 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Square ILM MB | |
| * Power Supply | PWS-1K62P-1R | 4 | 1620W REDUNDANT POWER MODULE | |
| * Backplane | BPN-PDB-F418 | 2 | Fat Twin Mid-plane; support 2x PS; 4x MB hot-swap & over-current connection; Front panel connection and 4X PWM fan control | |
| * Rail Set | MCP-290-41803-0N | 1 | Fat twin F418 / F424 Static Rail set support 28-33.5 inch depth rail,RoHS/REACH,PBF |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
