| Main Specifications |

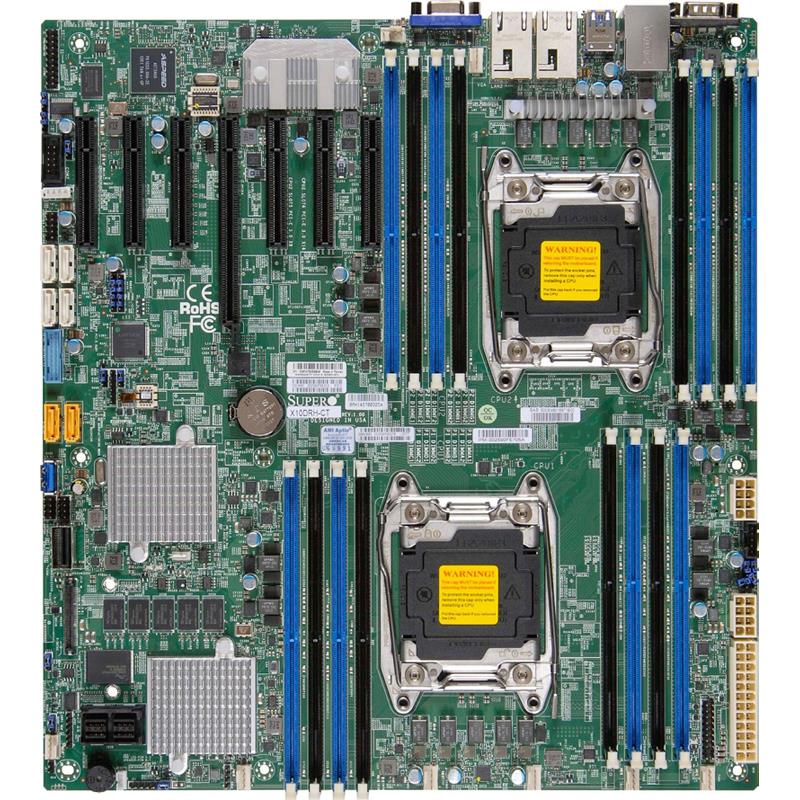

| Device Type | Xeon Board |
| Dimensions (WxDxH) | 12" x 13" (30.5cm x 33.2cm) |
| Form Factor | E-ATX |
| QPI | QPI up to 9.6 GT/s |
| Processor |
| Cache | Up to 22 Cores / Up to 55MB Cache |
| Compatible processor | Intel Xeon processor E5-2600 v4 / v3 family (up to 145W TDP) |
| Compatible Socket | Dual Socket R3 (LGA 2011) |
| Miscellaneous |
| Note | Motherboard supports this maximum TDP. Please verify your system can thermally support. |
| Included Accessories | 1x MNL-1628-QRG |
| Compatibility | SSG-2028R-E1CR24H, SSG-2028R-E1CR24L, SSG-6028R-E1CR12H, SSG-6028R-E1CR12L, SSG-6038R-E1CR16H, SSG-6038R-E1CR16L, SSG-6048R-E1CR24H, SSG-6048R-E1CR24L, SSG-6048R-E1CR36H, SSG-6048R-E1CR36L |
| System Memory |
| DIMM Sizes | RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB |
| LRDIMM: 64GB, 32GB |
| 3DS LRDIMM: 128GB |
| Error Detection | Corrects single-bit errors |
| Memory Capacity | 16x 288-pin DDR4 DIMM slots |
| Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM |
| Memory Voltage | 1.2 V |
| Cache Memory |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| On-Board Devices |
| Chipset | Intel C612 Express chipset |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | Aspeed AST2400 BMC |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead |
| Intel X540 Dual port 10GBase-T |
| Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| 1x Realtek RTL8211E PHY (dedicated IPMI) |
| TPM | 1x TPM 1.2 20-pin Header |
| USB | 5x USB 3.0 ports (2 rear + 2 via header + 1 Type A) |
| 4x USB 2.0 ports (2 rear + 2 via header) |
| Input / Output |
| SATA | 10x SATA3 (6Gbps) ports |
| SATA3 (6Gbps), RAID 0, 1, 5, 10 |
| DOM | 2x SuperDOM (Disk on Module) ports |
| LAN | 2x RJ45 10GBase-T ports, 1x RJ45 Dedicated IPMI LAN port |
| Serial Port / Header | 2x Fast UART 16550 serial, 2x COM Ports (1 rear, 1 header) |
| VGA | 1x VGA Connector |
| Chassis Optimized for |
| 2U Chassis | CSE-216BE1C-R920LPB, CSE-216BE2C-R920LPB, CSE-826BE1C-R920LPB, CSE-826BE1C-R920LPB, CSE-826BE2C-R920LPB |
| Mid-Tower | CSE-732D4F-903B, CSE-732i-865B |
| Standard Parts List |
| Chassis | CSE-743TQ-1200B |
| CSE-835TQ-R920B |
| Expansion / Connectivity |
| Expansion Slots Total Free | 1x PCI-E 3.0 x16 |
| Expansion Slots Total (Free) | 6x PCI-E 3.0 x8 |
| System BIOS |
| BIOS Features | Plug and Play (PnP), APM 1.2, PCI 2.3, ACPI 1.0 / 2.0 / 3.0 / 4.0, USB Keyboard support, SMBIOS 2.7.1, UEFI 2.3.1 |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Management |
| Power Configurations | ACPI / APM Power Management, Power-on mode for AC power recovery |
| Software | Intel Node Manager 3.0, IPMI 2.0, SPM, SUM, SuperDoctor 5, NMI, Watch Dog |
| Environmental Parameters |
| Operating Temperature | Operating Temperature Range 10C - 35C (50F - 95F) |
| Operating Environment (System) |
| Operating Temperature Range | Non-Operating Relative Humidity Range 5% - 95% (non-condensing) |
| Non-Operating Temperature Range -40C - 70C (-40F - 158F) |
| Operating Relative Humidity Range 8% - 90% (non-condensing) |
| Parts List |
| I/O Cables | 2x CBL-0044L |
| I/O Shield | 1x MCP-260-00042-0N |
| Motherboard | 1x MBD-X10DRH-iT |
