- Supermicro X10DRi-T4+ Motherboard EE-ATX S-2011 R3 For 2x E5-2600 v3

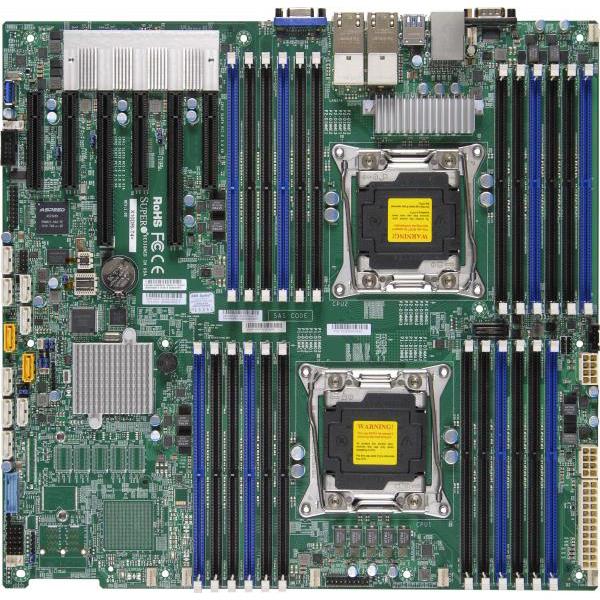

Supermicro X10DRi-T4+ Motherboard EE-ATX S-2011 R3 For 2x E5-2600 v3
Up to 3 TB ECC DDR4 memory across 24 DIMM slots
Features 10 SATA3 (6 Gbps) ports with RAID 0/1/5/10
Supports dual Intel Xeon E5‑2600 v3/v4 family processors
Includes quad 10GBase‑T LAN ports and a dedicated IPMI LAN port
Motherboard EE-ATX Intel C612 Chipset Dual Socket R3 LGA 2011 for Dual Intel Xeon E5-2600 v3 Family Processors, QPI up to 9.6GT/s - Supports up to 1.5TB DDR4 ECC LRDIMM (or) up to 768GB DDR4 ECC RDIMM, up to 2133MHz (24x 288-pin DDR4 DIMM sockets) - On-Board : SATA3 (6Gbps); RAID 0 / 1 / 5 / 10, Integrated IPMI 2.0 + KVM with Dedicated LAN, Intel X540 4x 10GBase-T Ethernet Controller, ASPEED AST2400 BMC Video - MBD-X10DRi-T4+-O (Retail Box)
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; UPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 3TB† ECC 3DS LRDIMM, up to DDR4- 2400†MHz ; 24x DIMM slots
4. 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, and 1 PCI-E 2.0 x4 (in x8) slot
5. Quad LAN w/ Intel® X540 10GBase-T
6. 10 SATA3 (6Gbps); RAID 0, 1, 5, 10
7. Integrated IPMI 2.0 and KVM with Dedicated LAN
8. 5 USB 3.0 (2 rear, 2 front panel, 1 Type-A) 4 USB 2.0 (2 rear, 2 front panel)
Extra Specifications for Supermicro X10DRi-T4+ Motherboard EE-ATX S-2011 R3 For 2x E5-2600 v3
| System Memory | ||
| DIMM Sizes | 3DS LRDIMM: 128GB | |
| RDIMM: 4GB, 8GB, 16GB, 32GB | ||
| LRDIMM: 4GB, 32GB, 64GB | ||
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | 768GB Registered ECC RDIMM, DDR4-2133MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots | |
| Memory Voltage | 1.2V | |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| On-Board Devices | ||
| Chipset | Intel® C612 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Quad LAN with Intel® X540 10GBase-T Ethernet Controller Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output | |
| SATA | Intel® C612 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| AHCI SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Graphics | Aspeed AST2400 BMC | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) port | |
| LAN | 4 RJ45 10GBase-T ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| Serial Port / Header | 2 COM Ports (1 rear, 1 header) 2 fast UART 16550 serial | |
| USB | 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) | |
| 4 USB 2.0 ports (2 rear + 2 headers) | ||
| Video Output | 1 VGA port | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog | |
| Product SKUs | ||
| Product SKUs | - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs. | |
| Physical Stats | ||
| Form Factor | E.E. ATX | |
| Dimensions | 13.68" x 13" (34.75cm x 33.02cm) | |
| Processor/Cache | ||
| CPU | Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. | |
| Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W | ||
| Cores / Cache | Up to 22 cores † / Up to 55MB† cache | |
| Note | † BIOS version 2.0 or above is required | |
| ** Motherboard supports this maximum TDP. Please verify your system can thermally support. | ||
| Expansion Slots | ||
| PCI-E | 2 PCI-E 3.0 x16, | |
| 3 PCI-E 3.0 x8 | ||
| 1 PCI-E 2.0 x4 (in x8 slot) | ||
| PC Health Monitoring | ||
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, VBAT | |
| FAN | 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI | |
| LED | CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID | |
| Other Features | Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC | |
| Operating Environment | ||
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
