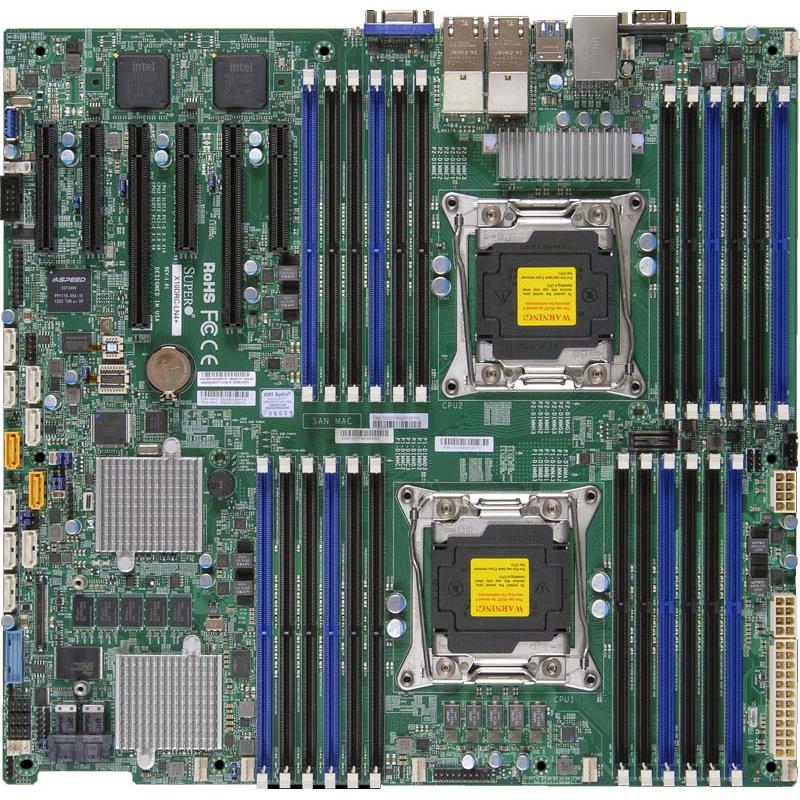

Supermicro X10DRC-LN4+ Motherboard EE-ATX Dual Socket R3 (LGA 2011) Intel Xeon E5-2600 v3/v4 Processors
Supports dual Intel Xeon E5‑2600 v3/v4 processors
Features Intel C612 controller for 10 SATA3 ports RAID
Up to 768GB ECC RDIMM DDR4 memory across 24 DIMM slots
Includes 4 RJ45 Gigabit Ethernet LAN ports, 1 Dedicated IPMI LAN port
Motherboard EE-ATX, Supports Dual Socket R3 (LGA 2011), Supporting Intel Xeon E5-2600 v3/v4 Processors Up to 22-Core/Up to 55MB cache), QPI up to 9.6GT/s. Up to 768GB Registered ECC RDIMM, DDR4-2400MHz or 3TB 3DS ECC LRDIMM, in 24 DIMM slots, Chipset: Intel C612 - On-Board: LSI 3108 SAS3 (12Gbps) controller (HW RAID 0 / 1 / 5 / 6 / 10 / 50 / 60) 2GB Cache with optional SuperCap backup module, SATA3 (6Gbps) RAID 0 / 1 / 5 / 10, Integrated IPMI 2.0 + KVM with Dedicated LAN, Intel i350 4x Gigabit Ethernet Controller, ASPEED AST2400 BMC Video - MBD-X10DRC-LN4+-O (Retail Box)
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; UPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 3TB† ECC 3DS LRDIMM, up to DDR4- 2400†MHz ; 24x DIMM slots
4. 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, and 1 PCI-E 2.0 x4 (in x8) slot
5. Quad LAN w/ Intel® i350 GbE
6. 10 SATA3 (6Gbps) ports w/ Intel® C612 controller; RAID 0, 1, 5, 10
7. 8 SAS3 (12Gbps) ports w/ Broadcom® 3108 controller; RAID 0, 1, 5, 6, 10, 50, 60 SuperCap option support
8. Integrated IPMI 2.0 and KVM with Dedicated LAN
9. 5 USB 3.0 (2 rear, 2 front panel, 1 Type-A) 4 USB 2.0 (2 rear, 2 front panel)
Extra Specifications for Supermicro X10DRC-LN4+ Motherboard EE-ATX Dual Socket R3 (LGA 2011) Intel Xeon E5-2600 v3/v4 Processors

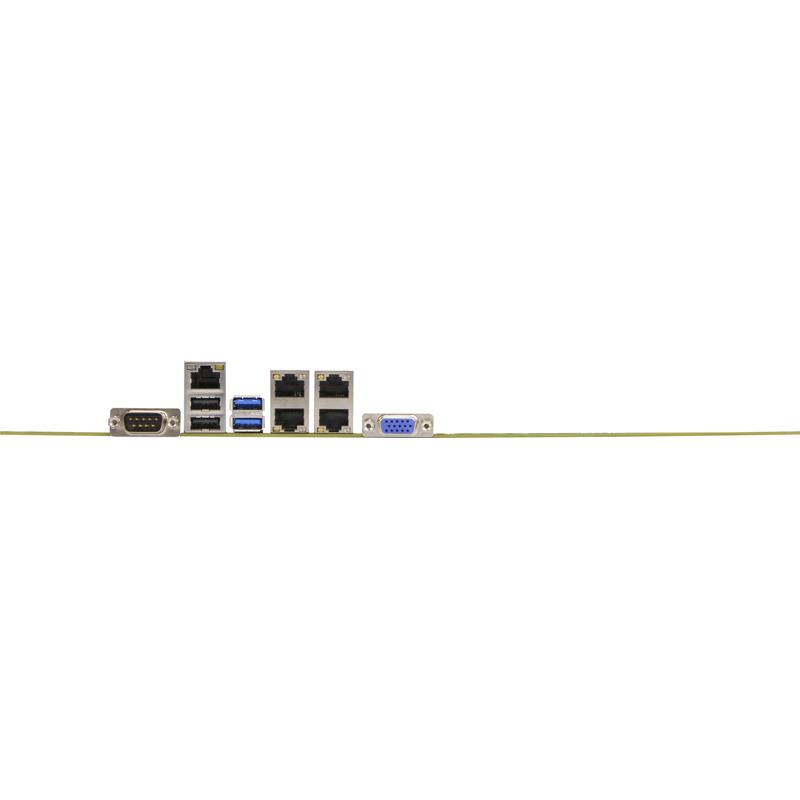

| System Memory | ||
| DIMM Sizes | 3DS LRDIMM: 128GB | |
| LRDIMM: 32GB, 64GB | ||
| RDIMM: 4GB, 8GB, 16GB, 32GB | ||
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | Up to 768GB Registered ECC RDIMM, DDR4-2400MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots | |
| Memory Voltage | 1.2V | |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| On-Board Devices | ||
| Chipset | Intel® C612 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Quad LAN with Intel® i350 Gigabit Ethernet Controller Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) | |
| SAS | Broadcom 3108 SAS3 (12Gbps) controller; HW RAID 0, 1, 5, 6, 10, 50, 60 2GB Cache with optional SuperCap backup module Supports up to 16 devices as default, more HDD devices support is also available as an option * For special SKU, please contact your Supermicro Sales. | |
| SATA | Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| AHCI SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Graphics | Aspeed AST2400 BMC | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) port | |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| Serial Port / Header | 2 COM Ports (1 rear, 1 header) 2 fast UART 16550 serial | |
| USB | 3 USB 3.0 ports (2 rear + 1 Type A) | |
| 2 USB 2.0 ports (2 rear Type A)) | ||
| Video Output | 1 VGA port | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor® 5, Watchdog | |
| Product SKUs | ||
| Product SKUs | - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs. | |
| Physical Stats | ||
| Form Factor | E.E. ATX | |
| Dimensions | 13.68" x 13" (34.75cm x 33.02cm) | |
| Processor/Cache | ||
| CPU | Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. | |
| Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W | ||
| Cores / Cache | Up to 22 cores † / Up to 55MB† cache | |
| Note | † BIOS version 2.0 or above is required | |
| ** Motherboard supports this maximum TDP. Please verify your system can thermally support. | ||
| Expansion Slots | ||
| PCI-E | 2 PCI-E 3.0 x16, | |
| 3 PCI-E 3.0 x8 | ||
| 1 PCI-E 2.0 x4 (in x8 slot) | ||
| PC Health Monitoring | ||
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Chassis intrusion header, Memory Voltages | |
| FAN | 7x 4-pin fan headers (up to 7 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI | |
| LED | CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID | |
| Other Features | Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC | |
| Operating Environment | ||
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Heat Sink (optional, not included) | - | -- | http://www.supermicro.com/manuals/brochure/x10_HeatSink_Compatibility.pdf | |||
| TPM security module (optional, not included) | AOM-TPM-9655V AOM-TPM-9655H | -- | TPM module with Infineon 9655 Vertical or Horizontal depends on the server | |||
| TPM security module (optional, not included) | AOM-TPM-9655V-S AOM-TPM-9655H-S | -- | TPM 1.2 module with Infineon 9655, RoHS/REACH, PBF; Vertical or Horiztonal depends on the server, provision for TXT | |||
| TPM security module (optional, not included) | AOM-TPM-9665V AOM-TPM-9665H | -- | TPM 2.0 module with Infineon 9665, RoHS/REACH, PBF; Vertical or Horizontal depends on the server | |||
| SuperDOM | - | -- | Supermicro SATA DOM Solutions http://www.supermicro.com/products/nfo/SATADOM.cfm | |||
| SuperCap TFM module | BTR-TFM8G-Broadcom®CVM02 | 1 | SuperCap TFM module | |||
| I/O Cables | CBL-SAST-0532 | $ 37.50 | 2 | Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s,HF | ||
| TPM security module (optional, not included) | AOM-TPM-9665V-S AOM-TPM-9655H-S | -- | TPM 2.0 module with Infineon 9665, RoHS/REACH, PBF; Vertical or Horizontal depends on the server, provisioned for TXT |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
