- Supermicro X10DRC-T4+ Motherboard EE-ATX Dual Socket R3 (LGA 2011) Intel Xeon E5-2600 v3/v4 Processors

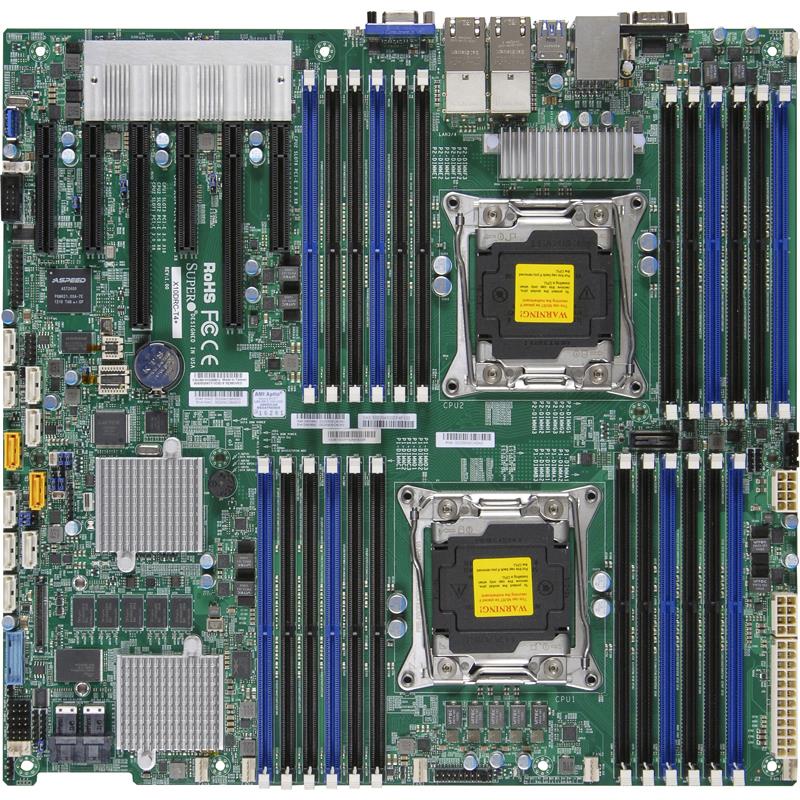

Supermicro X10DRC-T4+ Motherboard EE-ATX Dual Socket R3 (LGA 2011) Intel Xeon E5-2600 v3/v4 Processors
Supports dual Intel Xeon E5‑2600 v3/v4 processors
Includes 4 RJ45 10GBase-T ports, 1 Dedicated IPMI LAN port
Up to 768GB ECC RDIMM DDR4 memory across 24 DIMM slots
Features SAS3 Broadcom 3108 and SATA3 Intel C612 controller with RAID
Motherboard EE-ATX, Supports Dual Socket R3 (LGA 2011), Supporting Intel Xeon E5-2600 v3/v4 Processors Up to 22-Core/Up to 55MB cache). Up to 768GB Registered ECC RDIMM, DDR4-2400MHz or 3TB 3DS ECC LRDIMM, in 24 DIMM slots - On-Board: LSI 3108 SAS3 (12Gbps) controller (HW RAID 0 / 1 / 5 / 6 / 10 / 50 / 60) 2GB Cache with optional SuperCap backup module, SATA3 (6Gbps) RAID 0 / 1 / 5 / 10, Integrated IPMI 2.0 + KVM with Dedicated LAN, Intel X540 4x 10GBase-T Ethernet Controller, ASPEED AST2400 BMC Video - MBD-X10DRC-T4+-O (Retail Box)
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; UPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 3TB† ECC 3DS LRDIMM, up to DDR4- 2400†MHz ; 24x DIMM slots
4. 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, and 1 PCI-E 2.0 x4 (in x8) slot
5. Quad LAN w/ Intel® X540 10GBase-T
6. 10 SATA3 (6Gbps) ports w/ Intel® C612 controller; RAID 0, 1, 5, 10
7. 8 SAS3 (12Gbps) ports w/ Broadcom® 3108 controller; RAID 0, 1, 5, 6, 10, 50, 60 SuperCap option support
8. Integrated IPMI 2.0 and KVM with Dedicated LAN
9. 5 USB 3.0 (2 rear, 2 front panel, 1 Type-A) 4 USB 2.0 (2 rear, 2 front panel)
Extra Specifications for Supermicro X10DRC-T4+ Motherboard EE-ATX Dual Socket R3 (LGA 2011) Intel Xeon E5-2600 v3/v4 Processors
| System Memory | ||
| DIMM Sizes | 3DS LRDIMM: 128GB | |
| LRDIMM: 32GB, 64GB | ||
| RDIMM: 4GB, 8GB, 16GB, 32GB | ||
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | 768GB Registered ECC RDIMM, DDR4-2400MHz3TB 3DS ECC LRDIMM, in 24 DIMM slots | |
| Memory Voltage | 1.2V | |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| On-Board Devices | ||
| Chipset | Intel® C612 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Quad LAN with Intel® X540 10GBase-T Ethernet Controller Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with Realtek RTL8211E PHY (dedicated IPMI) | |
| SAS | Broadcom 3108 SAS3 (12Gbps) controller; HW RAID 0, 1, 5, 6, 10, 50, 60 2GB Cache with optional SuperCap backup module Supports up to 16 devices as default, more HDD devices support is also available as an option * For special SKU, please contact your Supermicro Sales. | |
| SATA | Broadcom® 3108 HW with 2G Cache controller for | |
| AHCI SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Graphics | Aspeed AST2400 BMC | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) port | |
| LAN | 4 RJ45 10GBase-T ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| Serial Port / Header | 2 COM Ports (1 rear, 1 header) 2 fast UART 16550 serial | |
| USB | 3 USB 3.0 ports (2 rear + 1 Type A) | |
| Video Output | 1 VGA port | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| BIOS Type | 128Mb SPI Flash EEPROM with UEFI BIOS | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor® 5, Watchdog | |
| Product SKUs | ||
| Product SKUs | - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs. | |
| Physical Stats | ||
| Form Factor | E.E. ATX | |
| Dimensions | 13.68" x 13" (34.75cm x 33.02cm) | |
| Processor/Cache | ||
| CPU | Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. | |
| Dual Socket LGA-2011-3 (Socket R3) supported, CPU TDP support Up to 145W TDP | ||
| Cores / Cache | Up to 22 cores † / Up to 55MB† cache | |
| Note | † BIOS version 2.0 or above is required | |
| ** Motherboard supports this maximum TDP. Please verify your system can thermally support. | ||
| Expansion Slots | ||
| PCI-E | 2 PCI-E 3.0 x16, | |
| 3 PCI-E 3.0 x8 | ||
| 1 PCI-E 2.0 x4 (in x8 slot) | ||
| PC Health Monitoring | ||
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages | |
| FAN | 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI | |
| LED | CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID | |
| Other Features | Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC | |
| Operating Environment | ||
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
