- Supermicro X10DDW-i Motherboard Proprietary WIO Dual Socket LGA-2011-3 (Socket R3) Intel Xeon E5-2600 v3/v4 Processors

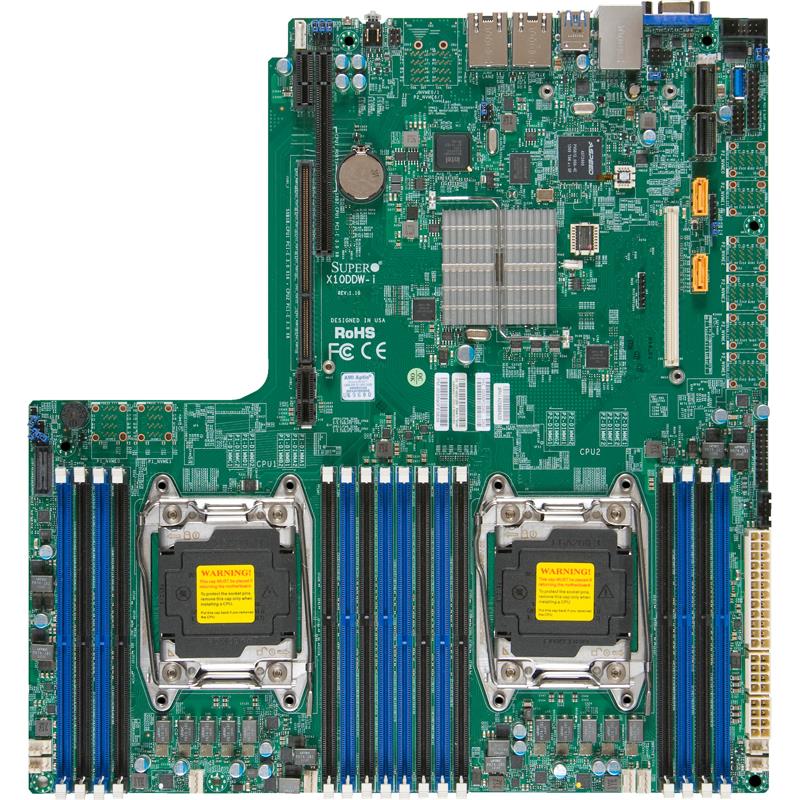

Supermicro X10DDW-i Motherboard Proprietary WIO Dual Socket LGA-2011-3 (Socket R3) Intel Xeon E5-2600 v3/v4 Processors
Supports dual Intel Xeon E5‑2600 v3/v4 processors
Features Intel C612 controller for 10 SATA3 ports RAID
Up to 1TB ECC RDIMM DDR4 memory across 16 DIMM slots
Includes 2 RJ45 Gigabit Ethernet LAN ports, 1 Dedicated IPMI LAN port
Motherboard Proprietary WIO, Supports Dual Socket LGA-2011-3 (Socket R3), Supporting Intel Xeon E5-2600 v3/v4 Processors Up to 22-Core/Up to 55MB cache), QPI up to 9.6GT/s - Up to 1TB DDR4 ECC RDIMM (or) up to 2TB DDR4 ECC LRDIMM, Up to 2400MHz in 16 DIMM slots - On-Board: SATA3 (6Gbps); RAID 0 / 1 / 5 / 10, Integrated IPMI 2.0 and KVM with Dedicated LAN, Intel i350 2x Gigabit Ethernet Controller, ASPEED AST2400 BMC - MBD-X10DDW-i-O (Retail Box)
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; UPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz; 16 DIMM slots
4. 1 PCI-E 3.0 x32 Left riser slot 1 PCI-E 3.0 x8 Right riser slot 1 PCI-E 3.0 x8 for Add-On-Module
5. Intel® i350 Dual port GbE LAN
6. 10 SATA3 (6Gbps); RAID 0, 1, 5, 10
7. Integrated IPMI 2.0 and KVM with Dedicated LAN
8. 3 USB 3.0 (2 rear, 1 Type A); 4 USB 2.0 (2 rear, 2 via header)
Extra Specifications for Supermicro X10DDW-i Motherboard Proprietary WIO Dual Socket LGA-2011-3 (Socket R3) Intel Xeon E5-2600 v3/v4 Processors
| System Memory | ||
| DIMM Sizes | 3DS LRDIMM: 128GB | |
| RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB | ||
| LRDIMM: 32GB, 64GB | ||
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| Memory Capacity | Up to 1TB Registered ECC RDIMM, DDR4-2400MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2400MHz, in 16 DIMM slots | |
| Memory Voltage | 1.2V | |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| On-Board Devices | ||
| Chipset | Intel® C226 Express PCH | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Dual LAN with Intel® i350 Gigabit Ethernet Controller Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with Realtek RTL8111E Gigabit Ethernet | |
| SATA | Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| AHCI SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Graphics | Aspeed AST2400 BMC | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) port | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 3 USB 3.0 ports (2 rear + 1 Type A) | |
| 4 USB 2.0 ports (2 rear + 2 via headers) | ||
| Video Output | 1 VGA port | |
| Serial Port / Header | 1 COM Port (1 header) 1 fast UART 16550 serial | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Software | Intel® Node Manager, IPMI2.0, NMI, SPM, SUM, Watchdog | |
| System Management Software | SUM | |
| Product SKUs | ||
| Product SKUs | - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs. | |
| Physical Stats | ||
| Form Factor | Proprietary WIO | |
| Dimensions | 12.8" x 13.4" (32.51cm x 34.04cm) | |
| Processor/Cache | ||
| CPU | Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. | |
| Dual Socket LGA-2011-3 (Socket R3) supported, CPU TDP support Up to 160W TDP, 1 QPI up to 9.6GT/s | ||
| Cores / Cache | Up to 22 cores † / Up to 55MB† cache | |
| Note | † BIOS version 2.0 or above is required | |
| ** Motherboard supports this maximum TDP. Please verify your system can thermally support. | ||
| Expansion Slots | ||
| PCI-E | 1 PCI-E 3.0 x8 Right Riser Slot, | |
| 1 PCI-E 3.0 x8 for Add-On-Module (AOM) Or 1 PCI-E 3.0 x32 Left Riser Slot | ||
| 3 PCI-E 2.0 x1 (in x4 slot) | ||
| PC Health Monitoring | ||
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 5 Phase-switching voltage regulator, Memory Voltages, VBAT | |
| FAN | 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI, Thermal Control for 6 Fan Connectors | |
| LED | CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID | |
| Other Features | Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC | |
| Operating Environment | ||
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
