- Supermicro X10DRW-I Motherboard S-2011 R3 for 2x E5-2600 v3

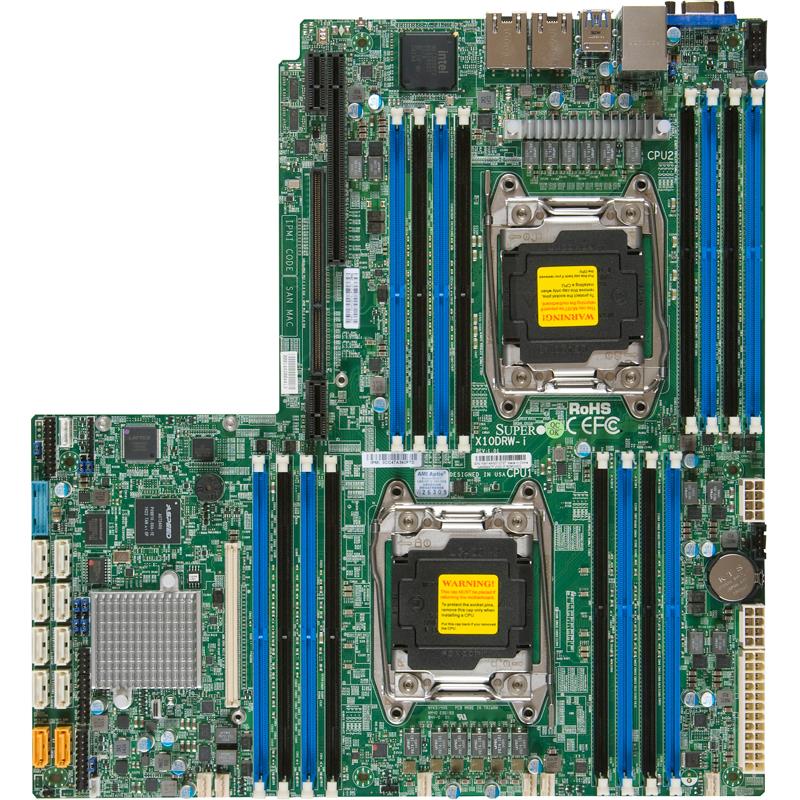

Supermicro X10DRW-I Motherboard S-2011 R3 for 2x E5-2600 v3
Features 10 SATA3 (6 Gbps) ports with RAID 0/1/5/10
Supports dual Intel Xeon E5‑2600 v3/v4 family processors
Handles up to 2 TB ECC DDR4 memory across 16 DIMM slots
Includes dual Intel i350 Gigabit LAN ports with integrated IPMI
Motherboard Proprietary WIO Intel C612 Chipset Dual Socket R3 LGA 2011 for Dual Intel Xeon E5-2600 v3 Family Processors, QPI up to 9.6GT/s - Supports up to 1TB DDR4 ECC LRDIMM (or) up to 512GB DDR4 ECC RDIMM, up to 2133MHz (16x 288-pin DDR4 DIMM sockets) - On-Board : SATA3 (6Gbps); RAID 0 / 1 / 5 / 10, Integrated IPMI 2.0 + KVM with Dedicated LAN, Intel i350 2x Gigabit Ethernet Controller, ASPEED AST2400 BMC Video - MBD-X10DRW-i-O (Retail Box)
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; UPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
4. Riser card support: Left side - 1 PCI-E 3.0 x32 Right side - 1 PCI-E 3.0 x16
5. Intel® i350 Dual port GbE LAN
6. 10 SATA3 (6Gbps); RAID 0, 1, 5, 10
7. Integrated IPMI 2.0 and KVM with Dedicated LAN
8. 6 USB 3.0 (4 rear, 2 via header)
Extra Specifications for Supermicro X10DRW-I Motherboard S-2011 R3 for 2x E5-2600 v3
| System Memory | ||
| DIMM Sizes | 3DS LRDIMM: 128GB | |
| RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB | ||
| LRDIMM: 32GB, 64GB | ||
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | Up to 1TB 3DS ECC RDIMM, DDR4-2400MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots | |
| Memory Voltage | 1.2V | |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| On-Board Devices | ||
| Chipset | Intel® C612 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Dual LAN with Intel® i350 Gigabit Ethernet Controller Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) | |
| SATA | Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| AHCI SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Graphics | Aspeed AST2400 BMC | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) port | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 6 USB 3.0 ports (4 rear + 2 headers) | |
| Video Output | 1 VGA port | |
| Serial Port / Header | 1 COM Port (1 header) | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Software | Intel® Node Manager, IPMI2.0, NMI, SuperDoctor® 5, Watchdog | |
| Product SKUs | ||
| Product SKUs | - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs. | |
| Physical Stats | ||
| Form Factor | Proprietary WIO | |
| Dimensions | 12.3" x 13" (31.24cm x 33.02cm) | |
| Processor/Cache | ||
| CPU | Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. | |
| Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s | ||
| Cores / Cache | Up to 22 cores † / Up to 55MB† cache | |
| Note | † BIOS version 2.0 or above is required | |
| ** Motherboard supports this maximum TDP. Please verify your system can thermally support. | ||
| Expansion Slots | ||
| PCI-E | 1x PCI-E 3.0 x16 for Add-on Module (AOM) | |
| Riser card support: | ||
| Left side - 1 PCI-E 3.0 x32 | ||
| Right side - 1 PCI-E 3.0 x16 | ||
| PC Health Monitoring | ||
| Voltage | +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Chassis intrusion header, Memory Voltages, Monitors for CPU Cores, VBAT | |
| FAN | 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 6 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI | |
| LED | CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID | |
| Other Features | Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, RoHS, SDDC | |
| Operating Environment | ||
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Heat Sink (optional, not included) | - | -- | CPU Heat Sink reference | |||
| TPM security module (optional, not included) | AOM-TPM-9655V AOM-TPM-9655H | -- | TPM 1.2 module with Infineon 9655, RoHS/REACH, PBF; Vertical or Horiztonal depends on the server | |||
| TPM security module (optional, not included) | AOM-TPM-9655V-S AOM-TPM-9655H-S | -- | TPM 1.2 module with Infineon 9655, RoHS/REACH, PBF; Vertical or Horiztonal depends on the server, provision for TXT | |||
| TPM security module (optional, not included) | AOM-TPM-9665V AOM-TPM-9665H | -- | TPM 2.0 module with Infineon 9665, RoHS/REACH, PBF; Vertical or Horizontal depends on the server | |||
| TPM security module (optional, not included) | AOM-TPM-9665V-S AOM-TPM-9655H-S | -- | TPM 2.0 module with Infineon 9665, RoHS/REACH, PBF; Vertical or Horizontal depends on the server, provisioned for TXT | |||
| SuperDOM | - | -- | Supermicro SATA DOM Solutions [Details] | |||
| Add-on Module | AOM-S3108M-H8 | $ 553.50 | -- | - |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
