- Supermicro X10DRW-iT Motherboard S-2011 R3 for 2x E5-2600 v3

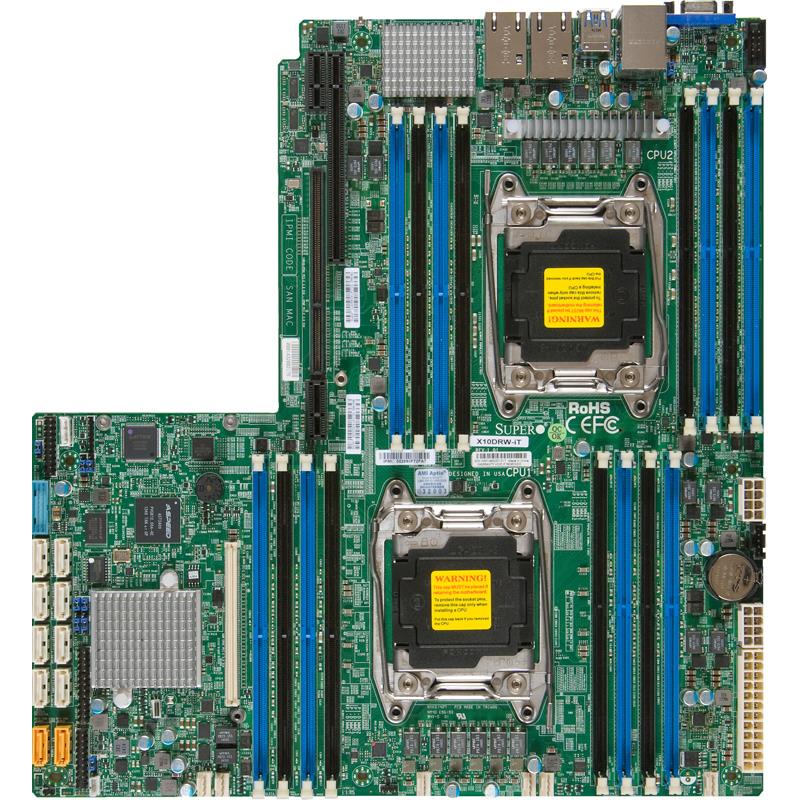

Supermicro X10DRW-iT Motherboard S-2011 R3 for 2x E5-2600 v3
Supports dual Intel Xeon E5‑2600 v4/v3 family processors
Features 10 SATA3 (6 Gbps) ports with RAID 0,1,5,10 support
Supports up to 2 TB ECC DDR4‑2400 memory across 16 DIMM slots
Includes dual 10GBase‑T LAN ports and integrated IPMI with dedicated LAN
Motherboard Proprietary WIO Intel C612 Chipset Dual Socket R3 LGA 2011 for Dual Intel Xeon E5-2600 v3 Family Processors, QPI up to 9.6GT/s - Supports up to 1TB DDR4 ECC LRDIMM (or) up to 512GB DDR4 ECC RDIMM, up to 2133MHz (16x 288-pin DDR4 DIMM sockets) - On-Board : SATA3 (6Gbps); RAID 0 / 1 / 5 / 10, Integrated IPMI 2.0 + KVM with Dedicated LAN, Intel X540 2x GBase-T Ethernet Controller, ASPEED AST2400 BMC Video - MBD-X10DRW-i-T-O (Retail Box)
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; UPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
4. Riser card support: Left side - 1 PCI-E 3.0 x32 Right side - 1 PCI-E 3.0 x16
5. Intel® X540 Dual port 10GBase-T
6. 10 SATA3 (6Gbps); RAID 0, 1, 5, 10
7. Integrated IPMI 2.0 and KVM with Dedicated LAN
8. 6 USB 3.0 (4 rear, 2 via header)
Extra Specifications for Supermicro X10DRW-iT Motherboard S-2011 R3 for 2x E5-2600 v3
| System Memory | ||
| DIMM Sizes | 3DS LRDIMM: 128GB | |
| RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB | ||
| LRDIMM: 32GB, 64GB | ||
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | 1TB Registered ECC RDIMM, DDR4-2400MHz; Up to 2TB 3DS ECC LRDIMM, in 4 DIMM slots | |
| Memory Voltage | 1.2V | |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| On-Board Devices | ||
| Chipset | Intel® C612 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Dual LAN with Intel® X540 10GBase-T Ethernet Controller Single LAN with Virtual Machine Device Queues reduce I/O overhead Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) | |
| SATA | Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| AHCI SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Graphics | Aspeed AST2400 BMC | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) port | |
| LAN | 2 RJ45 10GBase-T ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 6 USB 3.0 ports (4 rear + 2 headers) | |
| Video Output | 1 VGA port | |
| Serial Port / Header | 1 COM Port (1 header) | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Software | Intel® Node Manager, IPMI2.0, NMI, SuperDoctor® 5, Watchdog | |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support | |
| 1.5 / 2.0 | ||
| Product SKUs | ||
| Product SKUs | - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs. | |
| Physical Stats | ||
| Form Factor | Proprietary WIO | |
| Dimensions | 12.3" x 13" (31.24cm x 33.02cm) | |
| Processor/Cache | ||
| CPU | Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. | |
| Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s | ||
| Cores / Cache | Up to 22 cores † / Up to 55MB† cache | |
| Note | † BIOS version 2.0 or above is required | |
| ** Motherboard supports this maximum TDP. Please verify your system can thermally support. | ||
| Expansion Slots | ||
| PCI-E | 1x PCI-E 3.0 x16 for Add-on Module (AOM) | |
| Riser card support: | ||
| Left side - 1 PCI-E 3.0 x32 | ||
| Right side - 1 PCI-E 3.0 x16 | ||
| PC Health Monitoring | ||
| Voltage | +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, Monitors for CPU Cores, VBAT | |
| FAN | 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 6 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI | |
| LED | CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID | |
| Other Features | Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC | |
| Operating Environment | ||
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
