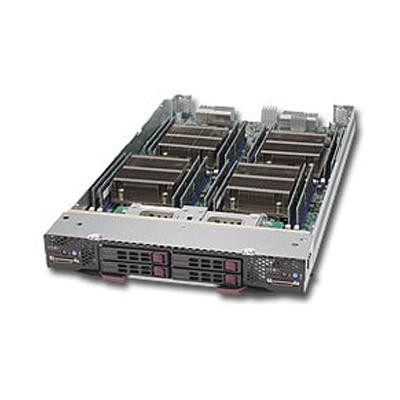

Supermicro SBI-7228R-T2X Blade Barebone Dual Processor

• 1x SuperDOM (Disk on Module) port
• 2x 2.5 Hot-swap drive bays; HDD/SSD
• Up to 512GB reg. ECC RDIMM or LRDIMM
• Supports Intel Xeon processor E5-2600 v4/v3

SuperBlade Server with two Nodes - Each Node supports up to two Xeon E5-2600 v3 family processors, Socket R3 LGA-2011, QPI up to 9.6GT/s - Supports up to 512GB DDR4 ECC LRDIMM (or) up to 256GB DDR4 ECC RDIMM (8x 288-pin DDR4 DIMM Sockets) - On-Board (per Node) : Intel C612 Express Chipset, Single-Port FDR infiniBand, SATA3 (6Gbps) RAID 0 / 1 Support, Integrated IPMI 2.0 w/ remote KVM and virtual media, 10GbE Network, Intel i350 2x Gigabit Ethernet, Integrated Aspeed AST 2400 Graphics - Includes (per Node) : 2x 2.5in SATA Hot-swap drive bays for HDD/SSD, 1x Front Connector for Supermicro KVM Card - System also includes B10DRT-TP Motherboard + CSE-720M-240B Front Blade Chassis - (Black)


    1,084.00 1,084.00 1084.0 USD

    1,084.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • 10GbE onboard
    • Intel® C612 Express chipset
    • Up to 512GB reg. ECC LRDIMM
    • 2x 2.5 Hot-Plug SATA3 Drive Trays
    • Intel® i350 Dual port Gigabit Ethernet
    • Integrated Aspeed AST 2400 Graphics
    • Integrated IPMI2.0 w/ remote KVM and virtual media
    • Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 (LGA 2011) with 2x Intel QPI 1.1 channels up to 9.6 GT/s

    Extra Specifications for Supermicro SBI-7228R-T2X Blade Barebone Dual Processor

    Main Specifications
    Dimensions (WxDxH) H 11.32" (288 mm) x W 1.67" (42.4 mm) x D 20.5" (520.7mm)
    Enclosure Color Black
    Type Processor Blade
    Weight 17 lbs (7.71 kg)
    Processor
    Cache Up to 18 Cores / Up to 45MB Cache
    Compatible processor Intel® Xeon® processor E5-2600 v3 family
    Compatible Socket Dual Socket R3 (LGA 2011)
    QPI QPI up to 9.6 GT/s
    System Memory
    DIMM Sizes RDIMM: 32GB, 16GB, 8GB, 4GB - LRDIMM: 64GB, 32GB
    Error Detection Corrects single-bit errors
    Memory Capacity 8x 288-pin DDR4 DIMM sockets per Node - Up to 512GB ECC LRDIMM, 256GBGB ECC RDIMM
    Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
    Memory Voltage 1.2 V
    On-Board Devices
    Chipset Intel® C612 Express chipset
    IPMI Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
    Network Controllers Intel® I350 Dual port Gigabit Ethernet
      Intel® I/OAT 3 support for fast, scaleable, and reliable networking
      VMDq support for better performance of virtualization
    Network Onboard 10GbE onboard
    SATA SATA3 (6Gbps), RAID 0, 1
    Input / Output
    KVM 1 Front Connector for Supermicro KVM Card
    System BIOS
    BIOS Features Plug and Play (PnP), PCI 2.2, ACPI up to 3.0, USB Keyboard support
    BIOS Type 128Mb SPI Flash EEPROM with AMI® BIOS
    Front Panel
    Buttons Power On/Off button, KVM button
    Connector SUV (Serial/USB/Video) & KVM Connector
    LEDs Power LED, UID / KVM LED, Network Activity LED, Fault LED
    Drive Bays
    Hot-swap 2x 2.5" Hot-swap drive bays, HDD/SSD
    Environmental Specifications
    Operating Temperature Operating Temperature: 10°to 35°C (50°to 95°F)
      Non-operating Temperature: -40°to 70°C (-40°to 158°F)
      Operating Relative Humidity: 8% to 90% (non-condensing)
      Non-operating Relative Humidity: 5 to 95% (non-condensing)
    Electromagnetic Compatibility (EMC)
    Europe EN55022 - Emissions, EN55024 - Immunity, EN61000-3-2 - Harmonics, EN61000-3-3 - Voltage Flicker, CE - EMC Directive 89/336/EEC
    United States / Canada FCC- Emissions (US) Verification
    Safety Compliance
    Europe EN60950-1, CE - Low Voltage Directive 73/23/EEE
    Germany TUV
    United States / Canada UL60950-1 - CSA/CUL 60950-1
    Parts List - (Items Included)
    Air Shroud MCP-310-00067-0N
    Front Panel Control MCP-280-KVMT
    Hard Drive Backplane BPN-SB9-SATA
    Hard Drive Trays MCP-220-00079-0B
    Motherboard / Chassis MBD-B10DRT-TP -O-P / CSE-720M-240B
