Supermicro SSG-6028R-E1CR12N 2U Storage Barebone Dual Processor

• 2U Storage - Storage Expandable
• Broadcom 3108 SAS3 HW RAID controller
• 4x 10G BaseT; Dual JBOD Expansion Ports
• Up to 3TB DDR4-2400MHz; 24x DIMM slots

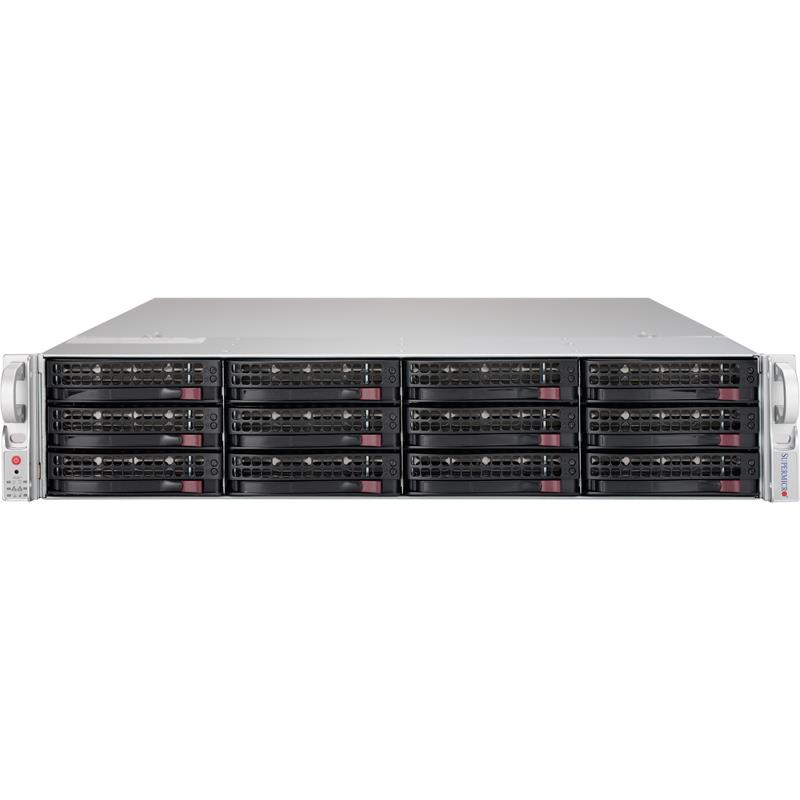

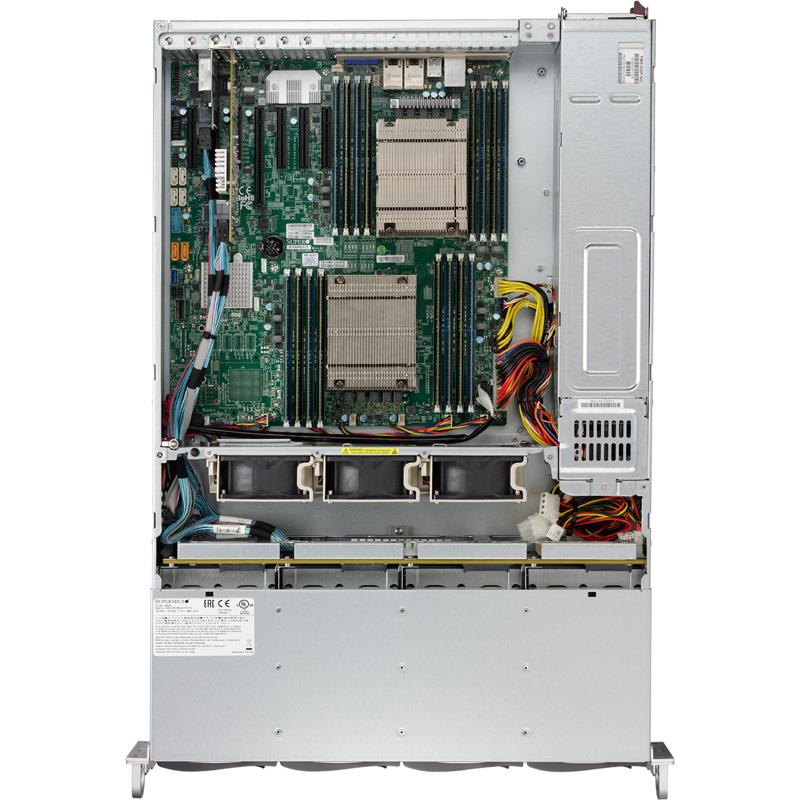

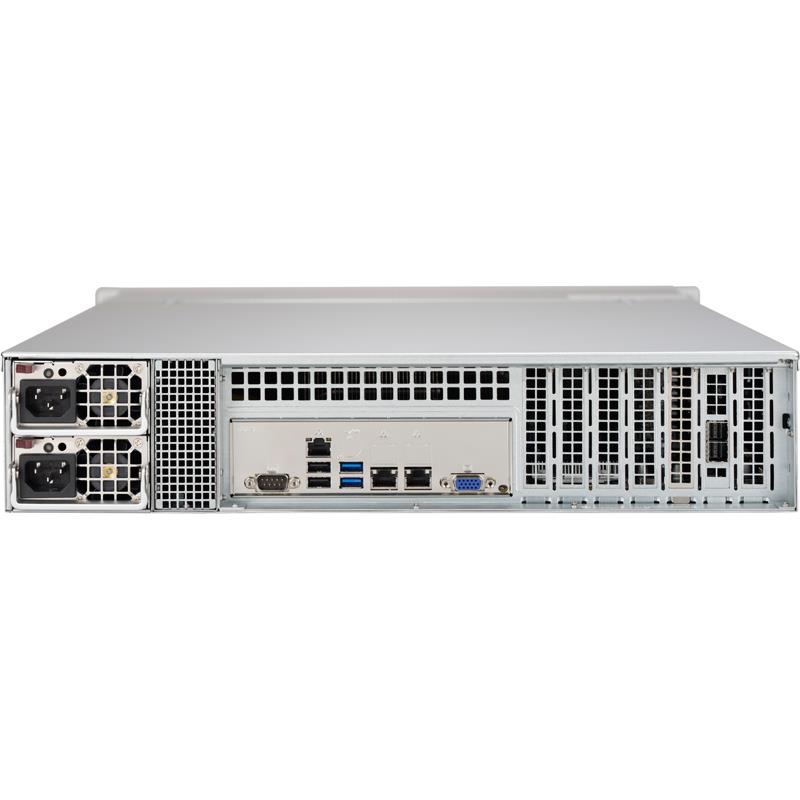

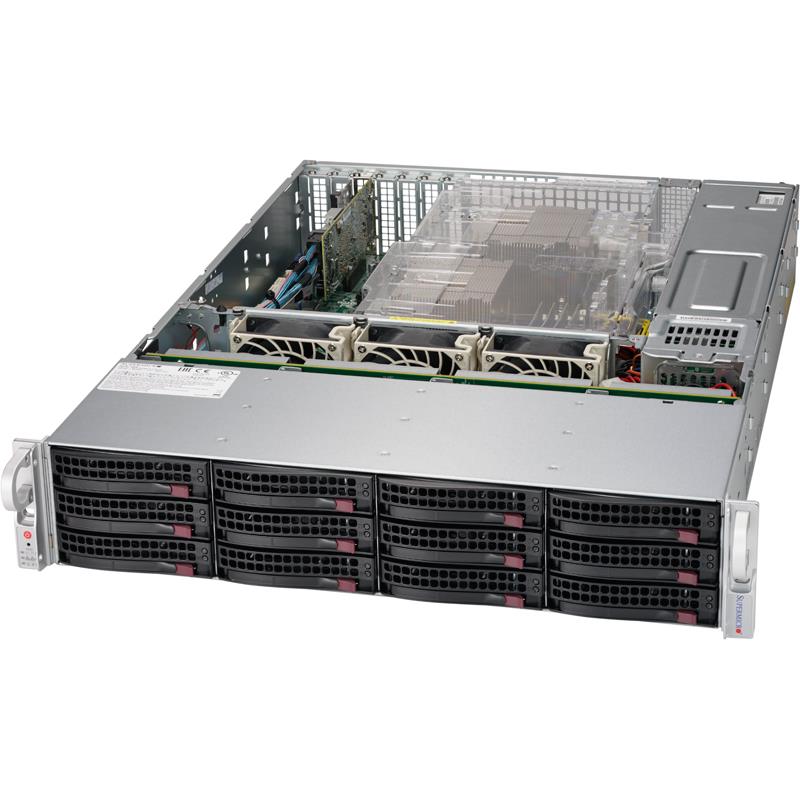

Barebone 2U SuperStorage Server for up to Dual Intel Xeon E5-2600 v4/v3 family processors - Supports up to 3.0TB DDR4 ECC 3DS LRDIMM up to 2400MHz in 24x 288-pin slots - On-Board : SAS3 (12Gbps) via LSI 3108 AOC (HW RAID) Controller, SATA3 (6Gbps) with RAID 0 / 1 / 5 / 10, Intel X540 4x 10GBase-T Ethernet, IPMI 2.0 / KVM over LAN / Media over LAN, ASPEED AST2400 BMC Graphics - Includes : 12x 3.5in Hot-Swap SAS3/SATA3 Drive Bays, Add On Card (AOC-S3108L-H8IR), Add On Module (AOM-SAS3-8I8E-LP), Heatsink / Retention (1x SNK-P0048P and 1x SNK-P0048AP4), 920W Redundant 80 Plus Platinum Level Certified Power Supply (2x PWS-920P-SQ), X10DRi-T4 Motherboard + SC826BE1C-R920LPB 2U Chassis - (Black) Please contact Wiredzone Technical Support for additional information about frequency optimized CPUs and specialized system optimization.


    2,382.00 2,382.00 2382.0 USD

    2,382.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • SAS3 via LSI 3108 AOC (HW RAID)
    • Quad 10GBase-T LAN w/ Intel X540
    • 12x 3.5 Hot-swap SAS3/SATA3 drive bays
    • 3x 8cm hot-swap redundant PWM cooling fans
    • 920W Redundant Power Supplies Platinum Level (94%)
    • Up to 3TB ECC 3DS LRDIMM, up to DDR4-2400MHz; 24x DIMM slots
    • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
    • PCI-E 3.0 x16, 3 PCI-E 3.0 x8 (slot 3 & 4 occupied by controller and JBOS expansion port)
    • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s

    Extra Specifications for Supermicro SSG-6028R-E1CR12N 2U Storage Barebone Dual Processor

    Main Specifications
    Built-in Devices Super X10DRi-T4+
    Device Type SuperServer
    Dimensions (WxDxH) W 17.2" (437mm) x H 3.5" (89mm) x D 25.6" (648mm)
    Enclosure Color Black
    Form Factor 2U Rackmount - CSE-826BE1C-R920LPB
    Weight Gross Weight: lbs ( kg) - Net Weight: lbs ( kg)
    Processors / Memory
    Cache Up to 22 Cores / Up to 55MB Cache
    Compatible processors Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP)
    Compatible Socket Dual Socket R3 (LGA 2011)
    QPI QPI up to 9.6 GT/s
    System Memory
    DIMM Sizes RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
      LRDIMM: 64GB, 32GB
      3DS LRDIMM: 128GB
    Error Detection Corrects single-bit errors
    Memory Capacity 24x 288-pin DDR4 DIMM slots
      Up to 3TB ECC 3DS LRDIMM, 768 ECC RDIMM
    Memory Type 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
    Memory Voltage 1.2 V
    On-Board Devices
    Chipset Intel C612 Express chipset
    Graphics ASPEED AST2400 BMC
    IPMI Support for Intelligent Platform Management Interface v.2.0
      IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
      ASPEED AST2400 BMC
    Network Controllers Quad 10GBase-T LAN with Intel® X540 Ethernet Controller
      Virtual Machine Device Queues reduce I/O overhead
      Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
      1x Realtek RTL8201N PHY (dedicated IPMI)
    SAS SAS3 (12Gbps) via LSI 3108 AOC, HW RAID
    SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10
    Input / Output
    LAN 4x RJ45 10GBase-T LAN ports, 1x RJ45 Dedicated IPMI LAN port
    Serial Port / Header 1x Fast UART 16550 port / 1 Header
    USB 2x USB 3.0 ports (rear), 1x Type A
    VGA 1x VGA port
    Front Panel
    Buttons Power On/Off button, System Reset button
    LEDs Power status LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED, Power fail LED
    Expansion / Connectivity
    Expansion Slots Total (Free) 2x PCI-E 3.0 x16 slot
      3x PCI-E 3.0 x8 slots
      Slot 3 & 4 occupied by controller and JBOD Expansion Port
    Drive Bays
    Hot-swap 12x 3.5" Hot-swap SAS3/SATA3 drive bays
    SAS / SATA Backplane
    SAS / SATA Backplane SAS3/SATA3 single expander per backplane
    System Cooling
    Fans 3x 8cm hot-swap redundant PWM cooling fans
    Power Supply
    Certification 80PLUS Platinum Certified
    Power Supply 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
    System BIOS
    BIOS Features Plug and Play (PnP), APM 1.2, PCI 2.2, ACPI 1.0 / 2.0, USB Keyboard support, SMBIOS 2.3, UEFI
    BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
    Operating Environment / Compliance
    Operating Temperature Operating Temperature: 10°C to 35°C (50°F to 95°F)
      Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
      Operating Relative Humidity: 8% to 90% (non-condensing)
      Non-operating Relative Humidity: 5% to 95% (non-condensing)
    RoHS RoHS Compliant
    Parts List - (Items Included)
    Add On Module 1x AOM-SAS3-8I8E-LP
    Add-On Card 1x AOC-S3108L-H8IR-O-P
    Backplane 1x BPN-SAS3-826EL1-N4
    Cables 4x CBL-SAST-0532
    Drive Trays 12x MCP-220-00075-0B
    Fan(s) 3x FAN-0126L4
    Heatsink / Retention 1x SNK-P0048P, 1x SNK-P0048AP4
    Label 1x LBL-0108
    Motherboard / Chassis 1x MBD-X10DRi-T4+ / 1x CSE-826BE1C-R920LPB
    Power Supply 2x PWS-920P-SQ
