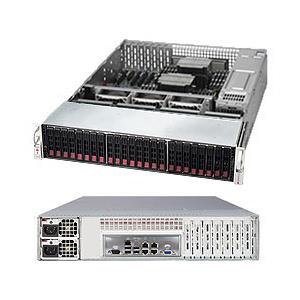

Supermicro SSG-2028R-E1CR24N 2U Storage Barebone Dual Processor
Barebone 2U SuperStorage Server for up to Dual Intel Xeon E5-2600 v4/v3 family processors - Supports up to 3.0TB DDR4 ECC 3DS LRDIMM up to 2400MHz in 24x 288-pin slots - On-Board : SAS3 (12Gbps, RAID), SATA3 (6Gbps, RAID), 4x 10GBase-T LAN, IPMI, VGA - Includes : 24x 2.5in Hot-Swap SAS3/SATA3 HDD bays, AOC-S3108L-H8IR, AOM-SAS3-8I8E-LP, 2 Heatsink, 920W Redundant 80 Plus Platinum Certified Power Supply, MBD-X10DR-iT4+ Motherboard, CSE-216BE1C-R920LPB 2U Chassis - (Black)
This product is no longer available.
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 3TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 24x DIMM slots
3. 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (in x8); Slot 1 & 2 occupied by controller and JBOD expansion port)
4. Quad LAN w/ Intel® X540 10GBase-T
5. 24 Hot-swap 2.5" SAS3/SATA3 drive bays
6. Hardware RAID controller and JBOD Expansion; RAID 0, 1, 5, 6, 10, 50, 60
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 3 Hot-swap 8cm redundant PWM fans
9. 920W Redundant Power Supplies Platinum Level (94%)
Extra Specifications for Supermicro SSG-2028R-E1CR24N 2U Storage Barebone Dual Processor
| Motherboard | ||

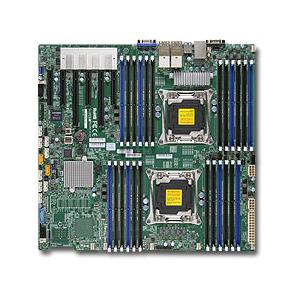

| Motherboard | Super X10DRi-T4+ | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 24x 288-pin DDR4 DIMM slots | |
| Up to 3TB † ECC 3DS LRDIMM, 1.5TB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| SAS3 AOC | Broadcom 3108 SAS3 AOC | |
| Hardware RAID 0, 1, 5, 6, 10, 50, 60 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Intel® X540 Quad Port 10GBase-T | ||
| Video | ASPEED AST2400 BMC | |
| Input / Output | ||
| LAN | 4 RJ45 10GBase-T ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 3 USB 3.0 ports (2 rear + 1 Type A) | |
| 2 USB 2.0 ports (2 rear) | ||
| Video | 1 VGA port | |
| Serial Port / Header | 1 Fast UART 16550 port / 1 Header | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-216BE1C-R920LPB | |
| Dimensions | ||
| Width | 17.2" (437mm) | |
| Height | 3.5" (89mm) | |
| Depth | 24.8" (630mm) | |
| Gross Weight | 61 lbs (27.7 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | System Information LED | |
| Hard drive activity LED | ||
| 2 Network activity LEDs | ||
| Power status LED | ||
| Power fail LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16 slots | |
| 1 PCI-E 2.0 x4 (in x8) slot | ||
| 3 PCI-E 3.0 x8 slots | ||
| Slot 1 & 2 occupied by controller and JBOD Expansion Port | ||
| Drive Bays | ||
| Hot-swap | 24 Hot-swap 2.5" SAS3/SATA3 HDD bays | |
| Backplane | ||
| Backplane | SAS3 12Gbps single expander backplane, w/ 24x SAS3 2.5" drive slots and 4 mini-SAS HD connectors for SAS3 uplink/downlink | |
| System Cooling | ||
| Fans | 3x 8cm 7K RPM, 4-pin PWM fans | |
| Power Supply with Power Distributor | ||
| Power Supply with Power Distributor | 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
| AC Input | 100-240 V, 50-60 Hz, 11-4.5 Amp | |
| DC Output | 4 Amp @ +5V standby | |
| 75 Amp @ +12V | ||
| Certification | Platinum Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| UEFI | ||
| APM 1.2 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperStorage 2028R-E1CR24N (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRi-T4+ | 1 | Super X10DRi-T4+ Motherboard | |
| Motherboard / Chassis | CSE-216BE1C-R920LPB | 1 | 2U Chassis | |
| Backplane | BPN-SAS3-216EL1 | 1 | 24-port 2U SAS3 12Gbps single-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-SAST-0532 | 4 | MINI SAS HD,12G,INT,50CM,30AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Heatsink / Retention | SNK-P0048AP4 | 1 | 2U Active CPU Heat Sink for Intel R2/R3/B2/B3 and AMD C32 | |
| Heatsink / Retention | SNK-P0048P | 1 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Square ILM MB | |
| Fan | FAN-0126L4 | 3 | 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing | |
| Power Supply | PWS-920P-SQ | 2 | 920W 1U Redundant PWS W/ Quiet Mode | |
| Drive Tray(s) | MCP-220-00047-0B | 24 | Black 3rd Gen hot-swap 2.5" HDD tray | |
| Add On Card | AOC-S3108L-H8IR-O-P | 1 | SAS-3, GEN-3 RAID card. Supports 12Gb and RAID 0, 1, 5, 6, 10, 50, and 60. Includes 2GB memory | |
| Add On Module | AOM-SAS3-8I8E-LP | 1 | 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3108 Cache Protection | BTR-TFM8G-LSICVM02BKT-BBU-BRACKET-05 | 11 | SuperCap ModuleMounting PCIe Card | |||
| HDD bracket | MCP-220-82611-0NCBL-0289LCBL-0473L | 112 | Dual 2.5" fixed HDD trayHDD Power CableHDD SATA Cable | |||
| Cable | CBL-0099 | $ 18.50 | 1 | HDD Y-Split Cable | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
