- Supermicro SSG-6038R-E1CR16N 3U Storage Barebone Dual Processor

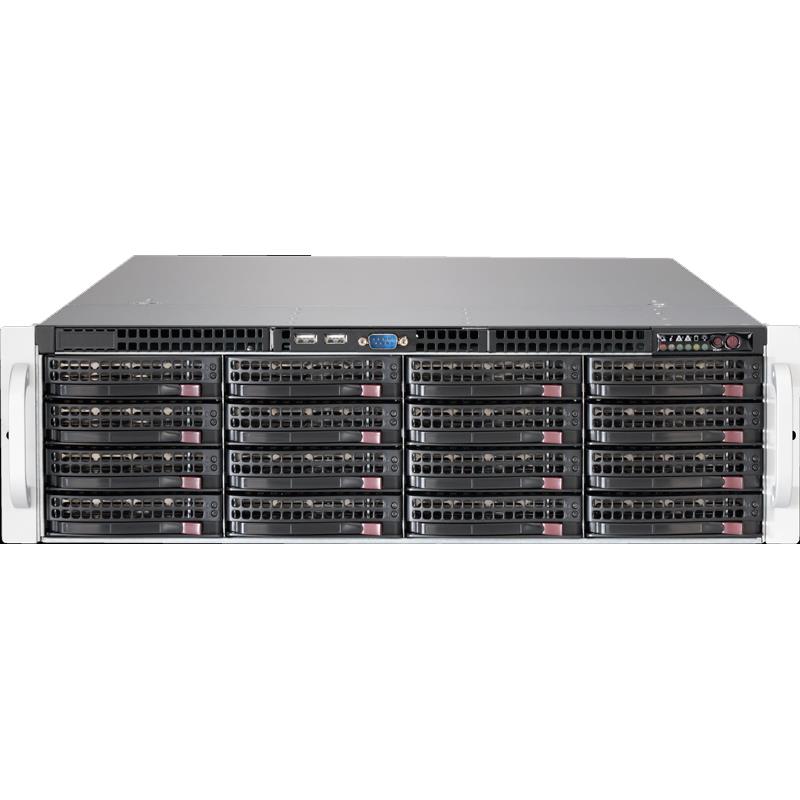

Supermicro SSG-6038R-E1CR16N 3U Storage Barebone Dual Processor
Barebone 3U SuperStorage Server for up to two Intel Xeon E5-2600 v3 family - Supports up to 1.5TB DDR4 ECC LRDIMM (24x 288-pin DDR4 DIMM sockets) - On-Board : SAS 12Gbps Controller (Hardware RAID), SATA 6Gbps Controller (RAID), 4x 10GBase-T LAN, IPMI 2.0, VGA - Includes : 16x 3.5in Hot-Swap Drive bays, 2x 2.5in optional rear Hot-swap 2.5in Drive Bays (Optional OS Drive), 1x AOC-S3108L-H8IR, 1x AOM-SAS3-8I8E-LP, 2x Heatsinks, 920W Redundant 80 Plus Platinum Certified Power Supply, X10DRi-T4+ Motherboard, CSE-836BE1C-R920B 3U Chassis - (Black)
This product is no longer available.
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 3TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 24x DIMM slots
3. 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (in x8); Slot 3 & 1 occupied by controller and JBOD expansion port)
4. Quad 10GBase-T LAN w/ Intel® X540
5. 16x 3.5" Hot-swap SAS3/SATA3 drive bays; 2x 2.5" optional Hot-swap SATA drive bays (rear)
6. Hardware RAID controller and JBOD Expansion; RAID 0, 1, 5, 6, 10, 50, 60
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 2x 80mm hot-swap rear exhaust PWM fans
9. 920W Redundant Power Supplies Platinum Level (94%)
Extra Specifications for Supermicro SSG-6038R-E1CR16N 3U Storage Barebone Dual Processor
| Motherboard | ||
| Motherboard | Super X10DRi-T4+ | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 24x 288-pin DDR4 DIMM slots | |
| Up to 3TB † ECC 3DS LRDIMM, 1.5TB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SAS | SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID 0,1,5,6,10,50,60 | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| Realtek RTL8201N PHY (dedicated IPMI) | ||
| Quad 10GBase-T LAN with IntelX® X540 Ethernet Controller | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 4 RJ45 10GBase-T LAN ports | ||
| USB | 3 USB 3.0 ports (2 rear + 1 Type A) | |
| 2 USB 2.0 ports (2 rear) | ||
| VGA | 1 VGA port | |
| Serial Port / Header | 2 Fast UART 16550 serial; 2 COM Ports (1 rear, 1 header) | |
| SATA | 10 SATA3 (6Gbps) ports | |
| DOM | 2 SuperDOM (Disk on Module) ports | |
| TPM | 1 TPM 1.2 20-pin Header | |
| Chassis | ||
| Form Factor | 3U Rackmount | |
| Model | CSE-836BE1C-R920B | |
| Dimensions | ||
| Width | 17.2" (437mm) | |
| Height | 5.2" (132mm) | |
| Depth | 25.5" (648mm) | |
| Weight | Gross Weight: 76 lbs (34.5 kg) | |
| Net Weight: 60 lbs (27.2 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | System Information LED | |
| Hard drive activity LED | ||
| 2 Network activity LEDs | ||
| Power status LED | ||
| Power fail LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16 slots | |
| 1 PCI-E 2.0 x4 (in x8) slot | ||
| 3 PCI-E 3.0 x8 slots | ||
| Slot 3 & 1 occupied by controller and JBOD Expansion Port | ||
| Drive Bays | ||
| Hot-swap | 16x 3.5" Hot-swap SAS3/SATA3 Drive Bays | |
| Optional | 2x 2.5" optional rear Hot-swap SATA drive bays | |
| Backplane | ||
| Backplane | SAS3/SATA3 single expander per backplane | |
| System Cooling | ||
| Fans | Redundant cooling | |
| 2x 80mm hot-swap rear exhaust cooling fans | ||
| Power Supply with Power Distributor | ||
| Power Supply with Power Distributor | 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
| AC Input | 100-240 V, 50-60 Hz, 11-4.5 Amp | |
| DC Output | 4 Amp @ +5V standby | |
| 75 Amp @ +12V | ||
| Certification | Platinum Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | Plug and Play (PnP) | |
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| APM 1.2 | ||
| ACPI 1.0/ 2.0/ 3.0/ 4.0 | ||
| USB SMBIOS 2.7.1 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperStorage 6038R-E1CR16N (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRi-T4+ | 1 | Super X10DRi-T4+ Motherboard | |
| Motherboard / Chassis | CSE-836BE1C-R920B | 1 | 3U Chassis | |
| Backplane | BPN-SAS3-836EL1 | 1 | 16-port 3U SAS3 12Gbps single-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD | |
| Cable 1 | CBL-SAST-0531 | 4 | MINI SAS HD,12G,INT,80CM,30AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. | |
| Heatsink / Retention | SNK-P0048P | 1 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Square ILM MB | |
| Heatsink / Retention | SNK-P0048AP4 | 1 | 2U Active CPU Heat Sink for Intel R2/R3/B2/B3 and AMD C32 | |
| Power Supply | PWS-920P-SQ | 2 | 920W 1U Redundant PWS W/ Quiet Mode | |
| Fan | FAN-0125L4 | 2 | 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing | |
| Add On Card | AOC-S3108L-H8IR-O-P | 1 | SAS-3, GEN-3 RAID card. Supports 12Gb and RAID 0, 1, 5, 6, 10, 50, and 60. Includes 2GB memory | |
| Add On Module | AOM-SAS3-8I8E | 1 | 8-port Mini SAS HD Int-to-Ext cable adapter w/FH bracket,HF,RoHS/REACH |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 3108 Cache Protection | BTR-TFM8G-LSICVM02BKT-BBU-BRACKET-05 | 1- | SuperCap ModuleMounting PCIe Card | |||
| HDD bracket | MCP-220-82611-0NCBL-0289LCBL-0473L | 112 | Dual 2.5" fixed HDD trayHDD Power CableHDD SATA Cable | |||
| Rear Window | MCP-220-83608-0N | $ 115.50 | 0 | Rear hot-swap drive bay for 2x 2.5" drives | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
