- Seagate ST2000NX0253 Hard Drive 2TB SATA 6Gb/s 7200RPM 2.5in - 7E2000 Series

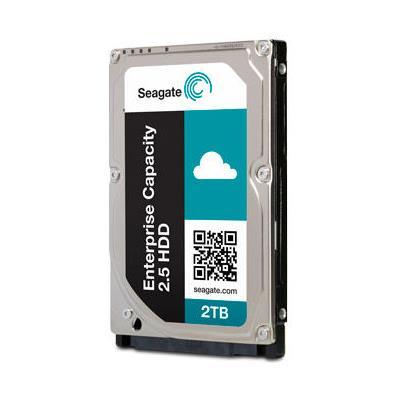

Seagate ST2000NX0253 Hard Drive 2TB SATA 6Gb/s 7200RPM 2.5in - 7E2000 Series
24x7 operation - 512 Emulation
Easy installation and configuration
Perpendicular recording technology
Scalability to higher performance levels
Hard Drive 2TB SATA 6Gb/s 7200RPM 2.5in, 128MB Cache, Interna 512el - 3rd Generation Enterprise Class (Constellation) Series (OEM, Single Pack) - OEM
Third-generation, enterprise-class reliability for 24×7 environmental robustness. Improved rotational vibration tolerance and head micro-actuation maximize system availability and performance. Lowest enterprise operating power and enhanced PowerChoice™ options for additional power savings during idle periods. Designed for high-density storage solutions requiring environmentally sound low power consumption and low weight for maximum storage efficiency
key features
128 MB data buffer
7200 RPM spindle speed
Full-track multiple-sector transfer capability without local processor intervention
High instantaneous (burst) data-transfer rates (up to 600MB per second)
Native Command Queuing with command ordering to increase performance in demanding applications
Perpendicular recording technology provides the drives with increased areal density
PowerChoice for selectable power savings
SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns
State-of-the-art cache and on-the-fly error-correction algorithms
Support for S.M.A.R.T. drive monitoring and reporting
Supports latching SATA cables and connectors
Top Cover Attached motor for excellent vibration tolerance
Worldwide Name (WWN) capability uniquely identifies the drive
Extra Specifications for Seagate ST2000NX0253 Hard Drive 2TB SATA 6Gb/s 7200RPM 2.5in - 7E2000 Series
| Main Specifications | ||
| Device Type | Hard drive - internal | |
| Dimensions (WxDxH) | Height 0.591 x Width 2.760 x Depth 3.955 in | |
| Interface Type | SATA-600 | |
| Capacity | 2 TB | |
| Weight | 0.437 LBS | |
| Form Factor | 2.5-inch | |
| Optical Storage | ||
| Buffer Size | 128 MB | |
| Miscellaneous | ||
| Features | PowerChoice on-demand power option, Low Halogen, RAID Rebuild, 512 Emulation | |
| Applications | Cloud Computing | |
| Enterprise backup and restoreD2D, virtual tape | ||
| Storage-hungry business applications | ||
| Storage area networks (SAN) and network attached storage (NAS) | ||
| Maximum-capacity entry-level servers and blade servers | ||
| Rich media content storage | ||
| MTBF | 2.0 M hours | |
| Hard Drive | ||
| Spindle Speed | 7200 RPM | |
| Expansion / Connectivity | ||
| Interface Ports | Single | |
| Performance | ||
| Average Latency | 4.16 | |
| Power | ||
| Requirement | +12V and +5V | |
| Environmental Parameters | ||
| Vibration Tolerance | Vibration, Operating, 5Hz to 500Hz (Gs): 0.5 | |
| Vibration, Nonoperating, 5Hz to 500Hz (Gs): 3.0 | ||
| Shock, Operating, 2ms (Gs): 25 | ||
| Shock, Nonoperating, 2ms (Gs): 400 | ||
| Acoustics, Typical Idle (bels): 2.8 | ||
| Acoustics, Typical Seek (bels): 3.2 | ||
