| Motherboard |
| Motherboard | Super A1SRM-LN7F-2758 |
| Processor/Cache |
| CPU | System-on-Chip |
| FCBGA 1283 |
| Intel® Atom® Processor C2758 |
| CPU TDP 20W (8-Core) |
| System Memory |
| Memory Capacity | 4x 240-pin DDR3 UDIMM slots |
| Supports up to 64GB DDR3 ECC or non-ECC memory |
| Memory Type | 1600/1333MHz ECC or non-ECC DDR3 SDRAM, 240-pin gold-plated DIMMs, x8 width only |
| DIMM Sizes | 16GB, 8GB, 4GB, 2GB |
| Memory Voltage | 1.5 V, 1.35 V |
| On-Board Devices |
| SATA | SoC SATA3 (6Gbps), SATA2 (3Gbps) |
| Network Controllers | Quad GbE LAN w/ Intel C2000 SoC i354 - 2 pairs LAN bypass |
| Single GbE LAN w/ Intel i210-AT |
| Dual GbE LAN w/ Intel Ethernet controller i350-AM2 - 1 pair LAN bypass |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Aspeed AST 2400 BMC |
| Graphics | BMC integrated ASPEED AST2400 |
| USB 2.0 | C2000 SoC |
| Input / Output |
| Serial ATA | 2x SATA3 (6Gbps) ports |
| 4x SATA2 (3Gbps) ports |
| LAN | 7x RJ45 Gigabit Ethernet LAN ports with shared LAN IPMI 2.0 |
| USB | 7x USB 2.0 ports (4 rear, 1 Type A, 2 via header) |
| Serial Port | 2x Fast UART 16550 Serial Port (1 rear with RJ45, 1 via header) |
| DOM | 1x SATA DOM (Disk on Module) power connector |
| 1x SuperDOM Supermicro SATA DOM with built-in power connector |
| VGA | 1x VGA Port |
| Others | TPM 1.2 header |
| Management |
| Software | Watch Dog |
| NMI |
| SuperDoctor® 5 |
| Power Configurations | ACPI / ACPM Power Management |
| Main Switch Override Mechanism |
| Power-on mode for AC power recovery |
| PC Health Monitoring |
| Voltage | Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +5V Standby, VBAT, Memory Voltages. |
| FAN | Total of 3x 4-pin fan headers |
| 3x fans with tachometer status monitoring |
| Status monitor for speed control |
| Status monitor for on/off control |
| Low noise fan speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| LED | System Overheat LED |
| Other Features | Intel® QuickAssist Technology |
| 3x pairs software programmable GbE LAN Bypass ports |
| Chassis |
| Form Factor | 1U Rackmount |
| Model | CSE-510-203B |
| Dimensions and Weight |
| Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 11.3" (287mm) |
| Package | 6.1" (H) x 25.4" (W) x 19.8" (D) |
| Weight | Net Weight: 8.45 lbs (3.83 kg) |
| Gross Weight: 12.55 lbs (5.69 kg) |
| Available Colors | Black |
| Front Panel |
| Buttons | Power On/Off button |
| System Reset button |
| LEDs | Power LED |
| Information LED (temp., status) |
| Hard drive activity LED |
| 2x Network activity LEDs |
| System Overheat LED |
| Expansion Slots |
| PCI-E | 1x PCI-E 2.0 x4 (in x8) slot |
| Drive Bays |
| HDD | 1x 3.5" or 4x 2.5" (opt. bracket required) internal drive bays |
| System Cooling |
| Fans | 2x 4cm counter rotating PWM fans, support up to three system fans |
| Power Supply |
| Power Supply | 200W Low Noise AC-DC power supply with PFC |
| AC Voltage | 100 - 240V, 50-60Hz, 2.6 Amp Max |
| +5V | 8.0 Amp (max.) |
| +5V standby | 2.0 Amp (max.) |
| +12V | 16 Amp (max.) |
| -12V | 0.5 Amp (max.) |
| +3.3V | 8.0 Amp (max.) |
| Certification | Gold Certified |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI UEFI BIOS |
| BIOS Features | SMBIOS 2.7.1 |
| ACPI 5.0 |
| USB Keyboard support |
| Plug and Play (PnP) |
| DMI 2.3 |
| UEFI |
| Operating Environment / Compliance |
| RoHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 40°C (50°F to 104°F) |
| Product SKUs |

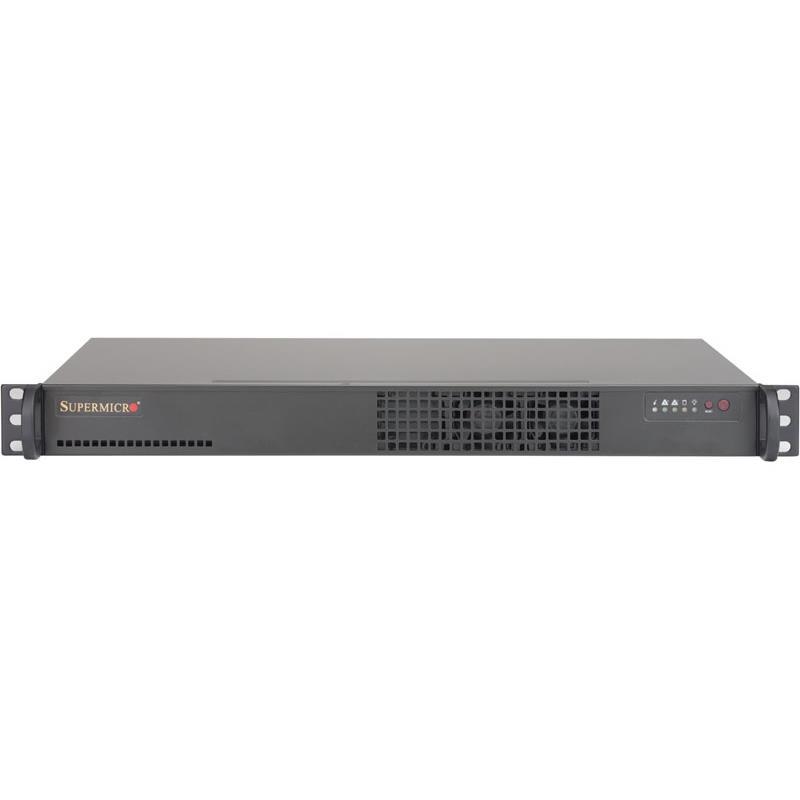

| Product SKUs | SuperServer 5018A-TN7B (Black) |
