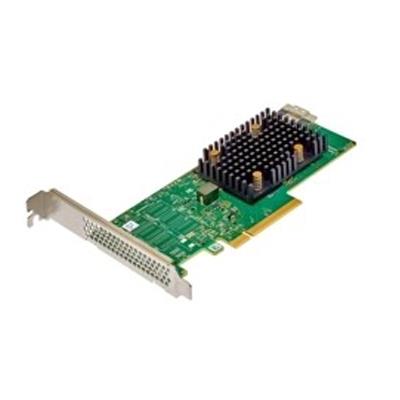

  2. Broadcom AOC-SAS3-9500-8I HBA 9500-8i Tri-Mode Storage Adapter 8 Internal Ports NVMe/SAS3/SATA2
Broadcom AOC-SAS3-9500-8I HBA 9500-8i Tri-Mode Storage Adapter 8 Internal Ports NVMe/SAS3/SATA2

Broadcom AOC-SAS3-9500-8I HBA 9500-8i Tri-Mode Storage Adapter 8 Internal Ports NVMe/SAS3/SATA2

  • Universal Bay Management (UBM) Ready

  • PCIe Gen 4.0 HBA provides high bandwidth

  • Eight internal ports for SAS/SATA/NVMe Devices

  • Provides maximum connectivity and performance

Storage Controller Broadcom 9500-8I HBA Mode, JBOD RAID Level, Based on the Broadcom SAS3808, 8 Internal Port (One x8 SFF-8654), PCIe 4.0 x8, Low-Profile Bracket, Supports : Hard Drive, Solid State Drive (SATA,SAS/NVMe) Devices - RoHS Compliant

$ 598.50$ 598.50598.5USD

$ 598.50

Option not available

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    The 9500-8i Tri-Mode, PCIe Gen 4.0 HBA with eight internal ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

    With increased bandwidth and IOPS performance compared to previous generations, the 9500-8i adapter delivers the performance and scalability needed by critical applications.

    Extra Specifications for Broadcom AOC-SAS3-9500-8I HBA 9500-8i Tri-Mode Storage Adapter 8 Internal Ports NVMe/SAS3/SATA2

    Main Specifications
    Device TypeStorage Controller
    Form FactorLow Profile
    Interface Bus TypePCI Express 4.0 x8
    Dimensions (WxDxH)6.127” x 2.712”
    SupportsSAS/SATA, NVMe
    Storage Controller
    Data Transfer Rate12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
    I/O ControllerSAS3808
    Connectivity
    Connectors8 Internal port
    Expansion / Connectivity
    Expansion / Connectivity1 SFF-8654 (SlimSAS)
    Software / System Requirements
    Management SoftwareLSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
    OS SupportsMicrosoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Debian Linux, Citrix XenServer, CentOS Linux, Oracle Enterprise Linux, Fedora, FreeBSD
    Miscellaneous
    MTBF> 5,000,000 hours at 40° C
    Environmental
    Operating EnvironmentOperating: 0°C to 55°C, 5% to 90% non-condensing
    Storage: −45°C to +105°C, 5% to 95% non-condensing

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:BROADCOM
    Type of Support:FULL
    Phone No.:800-225-5224
    URL:Click here for Manufacturer Website
