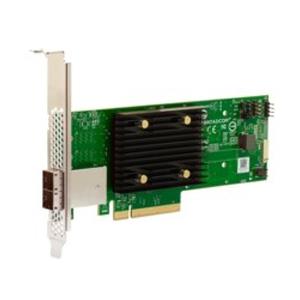

Broadcom AOC-SAS3-9500-8E HBA 9500-8e Tri-Mode Storage Controller 8 External Ports NVMe/SAS3/SATA2

Broadcom AOC-SAS3-9500-8E HBA 9500-8e Tri-Mode Storage Controller 8 External Ports NVMe/SAS3/SATA2

  • Universal Bay Management (UBM) Ready

  • Flexible solutions for cloud computing Applications

  • Offer both PCIe Gen 4.0 host and storage interfaces

  • 8 external connectors, supports SAS/SATA/NVMe devices

Storage Controller Broadcom 9500-8e HBA Mode, JBOD RAID Level, Based on the Broadcom SAS3808, 8x External Port (2x SFF-8644), PCIe 4.0 x8, Low-Profile Bracket, Supports : Hard Drive, Solid State Drive (SATA,SAS/NVMe) Devices - RoHS Compliant

$ 754.00$ 754.00754.0USD

$ 754.00

Option not available

InStock
1 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    The 9500-8e Tri-Mode, PCIe Gen 4.0 HBA with eight external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility. The HBA features the SAS3808 x8, Gen 4.0 I/O Controller (IOC), making it part of the industry's first HBA family to offer both PCIe Gen 4.0 host and storage interfaces.

    Extra Specifications for Broadcom AOC-SAS3-9500-8E HBA 9500-8e Tri-Mode Storage Controller 8 External Ports NVMe/SAS3/SATA2

    Main Specifications
    Device TypeStorage Controller
    Form FactorLow Profile
    Interface Bus TypePCI Express 4.0 x8
    Dimensions (WxDxH)6.600" x 2.712"
    SupportsSAS/SATA, NVMe
    Storage Controller
    Data Transfer Rate12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
    I/O ControllerSAS3808
    Connectivity
    Connectors8 External Ports
    Expansion / Connectivity
    Expansion / Connectivity2 x4 SFF-8644 (ext HD)
    Software / System Requirements
    Management SoftwareLSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
    OS SupportsMicrosoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Citrix XenServer, CentOS Linux, Ubuntu Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
    Miscellaneous
    MTBF> 5,000,000 hours at 40° C
    Environmental
    Operating EnvironmentOperating: 0°C to 55°C, 5% to 90% non-condensing
    Storage: −45°C to +105°C, 5% to 95% non-condensing

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
