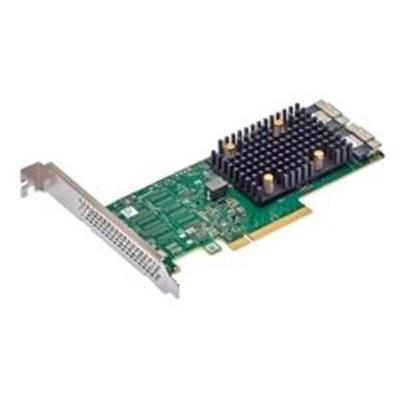

Broadcom AOC-SAS3-9500-16I HBA 9500-16I Tri-Mode Storage Controller 16 Internal Ports NVMe/SAS3/SATA2

Broadcom AOC-SAS3-9500-16I HBA 9500-16I Tri-Mode Storage Controller 16 Internal Ports NVMe/SAS3/SATA2

  • Universal Bay Management (UBM) Ready

  • Increased bandwidth and IOPS performance

  • 16 Internal connectors, supports SAS/SATA/NVMe devices

  • Support applications with bandwidth of PCIe 4.0 connectivity

Storage Controller Broadcom 9500-16i HBA Mode, JBOD RAID Level, Based on the Broadcom SAS3816, 16x Internal Port (2x SFF-8654), PCIe 4.0 x8, Low-Profile Bracket, Supports : Hard Drive, Solid State Drive (SATA,SAS/NVMe) Devices - RoHS Compliant

Contact us for volume discounts

    This combination does not exist.

    Email For Price

    The high-port 9500-16i Tri-Mode, PCIe Gen 4.0 HBA is ideal for increased connectivity and maximum performance for enterprise data center flexibility.


    With increased bandwidth and IOPS performance compared to previous generations, the 9500-16i adapter delivers the performance and scalability needed by critical applications.


    • Connects up to 1024 SAS/SATA devices or 32 NVMe devices

    • Provides maximum connectivity and performance for high-end servers and applications

    • Support critical applications with the bandwidth of PCIe 4.0 connectivity

    • Universal Bay Management (UBM) Ready

    Extra Specifications for Broadcom AOC-SAS3-9500-16I HBA 9500-16I Tri-Mode Storage Controller 16 Internal Ports NVMe/SAS3/SATA2

    Main Specifications
    Device TypeStorage Controller
    Form FactorLow Profile
    Interface Bus TypePCI Express 4.0 x8
    Dimensions (WxDxH)6.127” x 2.712”
    SupportsSAS/SATA, NVMe
    Storage Controller
    Data Transfer Rate12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
    I/O ControllerSAS3816
    Connectivity
    Connectors16 Internal Ports
    Expansion / Connectivity
    Expansion / Connectivity2 x8 SFF-8654 (SlimSAS)
    Software / System Requirements
    Management SoftwareLSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
    OS SupportsMicrosoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
    Miscellaneous
    MTBF> 5,000,000 hours at 40° C
    Environmental
    Operating EnvironmentOperating: 0°C to 55°C, 5% to 90% non-condensing
    Storage: −45°C to +105°C, 5% to 95% non-condensing

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
