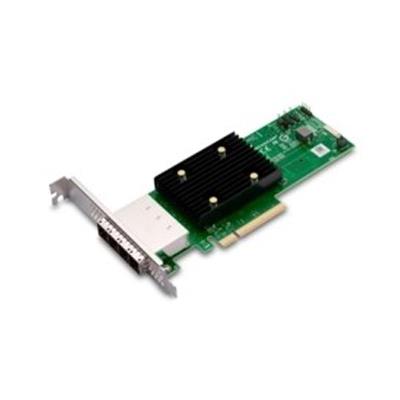

Broadcom AOC-SAS3-9500-16E HBA 9500-16e Tri-Mode Storage Controller 16 External Ports NVMe/SAS3/SATA3

Broadcom AOC-SAS3-9500-16E HBA 9500-16e Tri-Mode Storage Controller 16 External Ports NVMe/SAS3/SATA3

  • 16 External connectors, 4 x4 SFF-8644 (ext HD)

  • Support applications with bandwidth of PCIe 4.0 connectivity

  • Operate with any of the SAS, SATA, or NVMe storage devices

  • Increased bandwidth and IOPS performance over previous generations

Storage Controller Broadcom 9500-16e HBA Mode, JBOD RAID Level, Based on the Broadcom SAS3816, 16x External Port (4x SFF-8644), PCIe 4.0 x8, Full Height Bracket, Supports : Hard Drive, Solid State Drive (SATA,SAS/NVMe) Devices - RoHS Compliant

Contact us for volume discounts

    This combination does not exist.

    InStock
    1 lb
    Email For Price

    The 9500-16e Tri-Mode, PCIe Gen 4.0 HBA with 16 external ports is ideal for increased connectivity and maximum performance for enterprise data center flexibility.


    With increased bandwidth and IOPS performance over previous generations, the 9500-16e adapter delivers the performance and scalability needed by critical applications.


    • Connects up to 1024 SAS/SATA devices or 32 NVMe devices

    • Provides maximum connectivity and performance for high-end servers and applications

    • Support critical applications with the bandwidth of PCIe 4.0 connectivity

    • Universal Bay Management (UBM) Ready

    Extra Specifications for Broadcom AOC-SAS3-9500-16E HBA 9500-16e Tri-Mode Storage Controller 16 External Ports NVMe/SAS3/SATA3

    Main Specifications
    Device TypeStorage Controller
    Form FactorFull Height - Plug-in Card
    Interface Bus TypePCI Express 4.0 x8
    Dimensions (WxDxH)6.600" x 2.712"
    SupportsSAS/SATA, NVMe
    Storage Controller
    Data Transfer Rate12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
    I/O ControllerSAS3816
    Connectivity
    Connectors16 External Ports
    Expansion / Connectivity
    Expansion / Connectivity4 x4 SFF-8644 (ext HD)
    Software / System Requirements
    Management SoftwareLSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
    OS SupportsMicrosoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, CentOS Linux, Citrix XenServer, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
    Miscellaneous
    MTBF> 5,000,000 hours at 40° C
    Environmental
    Operating EnvironmentOperating: 0°C to 55°C, 5% to 90% non-condensing
    Storage: −45°C to +105°C, 5% to 95% non-condensing

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
