- Supermicro SYS-2028TR-H72FR Twin 2U Barebone Four Hot-pluggable Nodes Dual Intel Xeon Processor E5-2600 v4/v3 Family

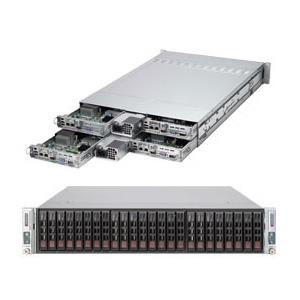

Supermicro SYS-2028TR-H72FR Twin 2U Barebone Four Hot-pluggable Nodes Dual Intel Xeon Processor E5-2600 v4/v3 Family
Server Rackmount 2U TwinPro2 with Four Nodes, Each Node Supports: Dual Socket R3 (LGA 2011) Intel Xeon Processor E5-2600 v4/v3 Family (up to 145W TDP) - Supports up to 1TB DDR4 ECC LRDIMM (or) up to 256GB DDR4 ECC RDIMM (8x 288-pin DDR4 DIMM sockets) - On-Board (per Node) : Mellanox ConnectX-3 FDR Infiniband 56Gbps Controller, SAS2 (6Gbps) via LSI 2208 w/ Hardware RAID support RAID 0 / 1 / 5 / 6 / 10 / 50 support, SATA3 (6Gbps); RAID 0 / 1, IPMI 2.0, KVM/media over LAN with dedicated LAN port, Intel i350-AM2 2x Gigabit Ethernet, ASPEED AST2400 BMC Video - Includes (per Node) : 6x 2.5in Hot-swap SAS2/SATA3 HDD Drive Bays, 1x Riser Card (RSC-R1UTP-E16R), 2x Heatsink / Retention (1x SNK-P0047PS and 1x SNK-P0047PW) - System also includes : 1600W Redundant 80 Plus Titanium Power Supply (2x PWS-1K68A-1R), 4x X10DRT-HIBF Motherboards, and 1x CSE-217HQ+-R1K68B 2U Chasssis (Black)
This product is no longer available.
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 1TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 8x DIMM slots
3. 1x PCI-E 3.0 x16 (LP) slot
4. Single port IB (FDR, 56Gbps), w/ QSFP connector
5. Intel® i350 Dual port GbE LAN
6. 6x 2.5" Hot-swap SAS2/SATA3 drive bays
7. 1600W Redundant Power Supplies Titanium Level
8. 2x SATA DOM
Extra Specifications for Supermicro SYS-2028TR-H72FR Twin 2U Barebone Four Hot-pluggable Nodes Dual Intel Xeon Processor E5-2600 v4/v3 Family
| Motherboard (Four per System) | ||

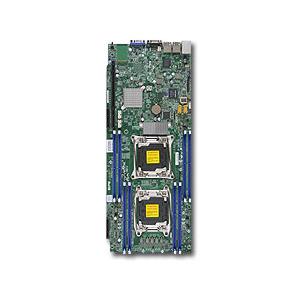

| Motherboard (Four per System) | Super X10DRT-HIBF | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 8x 288-pin DDR4 DIMM slots | |
| Up to 1TB † ECC 3DS LRDIMM, 256GB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices (per Node) | ||
| Chipset | Intel® C612 chipset | |
| Infiniband | Mellanox ConnectX-3 FDR Infiniband 56Gbps Controller | |
| SAS | SAS2 (6Gbps) via Broadcom 2208 w/ Hardware RAID support | |
| RAID 0, 1, 5, 6, 10, 50 support | ||
| SATA | SATA3 (6Gbps) with RAID 0, 1 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Intel® i350 Dual Port Gigabit Ethernet | |
| Virtual Machine Device Queues reduce I/O overhead | ||
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1x Realtek RTL8201N PHY (dedicated IPMI) | ||
| Video | ASPEED AST2400 BMC | |
| Input / Output (per Node) | ||
| Infiniband | 1x external QSFP Infiniband connector | |
| Serial ATA | 8x SATA3 (6Gbps) ports | |
| SAS | 6x SAS2 ports (6Gbps) | |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports | |
| 1x RJ45 Dedicated IPMI LAN port | ||
| USB | 2x USB 3.0 ports (rear) | |
| Video | 1x VGA port | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-217HQ-R1K68B | |
| Dimensions and Weight | ||
| Width | 17.25" (438mm) | |
| Height | 3.47" (88mm) | |
| Depth | 26.75" (679mm) | |
| Package | 26.4" (H) x 11.2" (W) x 39.8" (D) | |
| Weight | Gross Weight: 85 lbs (38.6kg) | |
| Net Weight: 54.5 lbs (24.7 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| UID button | ||
| LEDs | Power status LED | |
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| 2x Network activity LEDs | ||
| Expansion Slots (per Node) | ||
| PCI-Express | 1x PCI-E 3.0 (x16) Low-profile slot | |
| Drive Bays (per Node) | ||
| Hot-swap | 6x 2.5" Hot-swap SAS2/SATA3 drive bays Please contact Supermicro Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD. | |
| System Cooling | ||
| Fans | 4x 8cm heavy duty fans with PWM fan speed control | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 1600W 1U Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 140Vac | |
| 1600W: 180 – 240Vac | ||
| Dimension (W x H x L) | 76 x 40.4 x 336 mm | |
| Input | 100-140Vac / 10-7A / 50-60Hz | |
| 180-240Vac / 11-8A / 50-60Hz | ||
| +12V | Max: 67A / Min: 0A (100-140Vac) | |
| Max: 133A / Min: 0A (180-240Vac) | ||
| +5Vsb | Max: 1A / Min: 0A | |
| Output Type | 27 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| UEFI | ||
| APM 1.2 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 2028TR-H72FR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRT-HIBF | 4 | Super X10DRT-HIBF Motherboard | |
| Motherboard / Chassis | CSE-217HQ-R1K68B | 1 | 2U Chassis | |
| Air Shroud | MCP-310-82715-0B | 4 | Plastic air shroud for SC827H/HQ,217HQ, X9 DP | |
| Backplane | BPN-ADP-S2208L-H6IR | 4 | BPN-ADP-S2208L-H6IR-O-P | |
| Backplane | BPN-SAS-217HQ | 1 | 24-port 2U Twin^2 CSE-217HQ (6 drives per node) backplane, support up to 24x 2.5-inch SAS/SATA HDD | |
| Cable 1 | CBL-PWCD-0900 | 2 | PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Manual | MNL-1691-QRG | 1 | MNL-SYS-2028TR-H72R/H72FR,QRG | |
| Riser Card | RSC-R1UTP-E16R | 4 | 1U RHS TwinPro Riser card with one PCI-E x16 slot | |
| Heatsink / Retention | SNK-P0047PW | 4 | 1U Passive Custom Rear CPU Heat Sink for X9, X10 1U Twin, 2U Twin^2 8-DIMM per Node Series Servers | |
| Heatsink / Retention | SNK-P0047PS | 4 | 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB | |
| Power Supply | PWS-1K68A-1R | 2 | 1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF |
