| Main Specifications |
| Dimensions (WxDxH) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 23.5" (597mm) |
| Color | Black |
| Form Factor | 1U chassis support for max. motherboard size - 13.68" x 13" E-ATX, optimized for WIO motherboards |
| Device Type | SuperChassis |
| Processor Support |
| Processor Support | Supports dual, single Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2x Full-height PCI Expansion Slots (Riser Card Required) |
| 1x Low-profile PCI Expansion Slot (Riser Card Required) |
| Drive Bays |
| Internal | 8x Hot-swap 2.5" SAS / SATA HDD tray, SAS or enterprise SATA HDD only recommended |
| Peripheral Drives | MCP-290-00036-0B |
| SAS / SATA Backplane |
| SAS / SATA Backplane | 1x 1U SAS / SATA backplane with SES2 |
| Peripheral Drives |
| DVD-ROM | Slim DVD-ROM drive (optional) |
| Front Panel |
| Buttons | Power On/Off button, System Reset button, UID button |
| LEDs | Power status LED, HDD activity LED, 2x Network activity LEDs, Universal Information (UID) LED |
| System Cooling |
| Fans | 4x 40x56mm Counter-rotating PWM fans |
| Fan: FAN-0086L4 / Fan Holder: CSE-PT0135, MCP-340-00035-0B |
| Operating Environment (System) |
| Operating Temperature Range | Operating Temperature Range 5C ~ 35C (41F ~ 95F) |
| Non-Operating Temperature Range -40C ~ 60C (-40F ~ 140F) |
| Operating Relative Humidity Range 8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range 5% - 95% (non-condensing) |
| Power Supply |
| Certification | 80PLUS Platinum Level |
| Power Supply | PWS-605P-1H |
| 600W AC power supply w/ PFC (24-pin) |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | USA - UL listed, FCC |
| Canada - CUL listed |
| Germany - TUV Certified |
| Europe/CE Mark |
| EN 60950/IEC 60950-Compliant |
| CCC Certification |
| Standard Parts List |
| Accessory | MCP-120-00030-0N, MCP-120-00053-0N, MCP-290-00037-0N, MCP-250-00008-0N |

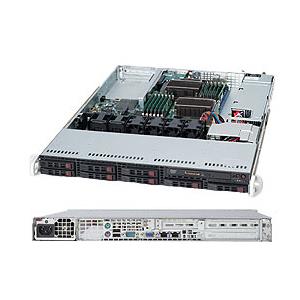

| Chassis | CSE-113TQ-600WB |
| Front Panel | FP112 |
| Parts List - (Items Included) |
| Air Shroud | MCP-310-19001-0N |
| Backplane | BPN-SAS-113TQ |
| Drive Trays | MCP-220-00047-0B |
| Mounting Rails | CSE-PT52L |
| Parts List |
| Cables | CBL-0335L, CBL-0160L |
