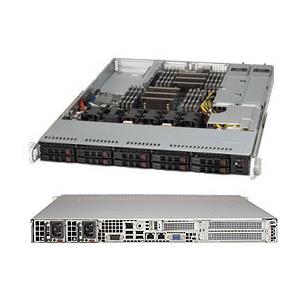

Supermicro CSE-116AC2-R706WB Server Chassis 1U Rackmount

Offers 10x 2.5" hot-swap SAS/SATA drive bays
Includes 2 full-height and 1 low-profile expansion slots
Equipped with 700/750W redundant Platinum level power supply
Chassis accepts E-ATX 12" x 13", 13.38" x 13.4" motherboard sizes

Rackmount 1U w/ Redundant 700W/750W Power Supply (2x PWS-706P-1R) 80 Plus Platinum Certified for Intel/AMD single/dual processor (motherboard maximum size of 12inx13in) - Includes : 10x Hot-Swap 2.5in SAS/SATA drive bays, Mounting Rails Kit (MCP-290-00063-0N), Air Shroud (MCP-310-19002-0N) - SC116AC2-R706WB (Black)

1. 1U chassis for motherboard support size of E-ATX 12"x13", 13.38"x 13.4". Optimized for WIO (W series) motherboards
2. 10 x 2.5" hot-swap SAS/SATA drive bay
3. 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
4. 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
5. 2 full-height & full-length expansion slot(s) , 1 low-profile expansion slot(s)
6. 4 x 40x56mm counter-rotation PWM fan(s) Optional 2 x fans for AOC cooling

Extra Specifications for Supermicro CSE-116AC2-R706WB Server Chassis 1U Rackmount

Processor Support
Processor Support	Dual, single Intel® / AMD processors
Front Panel
Buttons	Power On/Off button
	Unit Identification (UID) button
LEDs	Unit Identification (UID) LED
	Power Status LED
	2 Network Activity LEDs
	HDD activity LED
Operating Environment (System)
Operating Temperature Range	5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)
Power Supply
Certification	Platinum Certified
Power Supply	1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
Power Efficiency	94%
Total Output Power and Input	700W with Input 100 - 140Vac
	750W with Input 200 - 240Vac
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	320 x 54.5 x 40.25 mm
Output Type	Backplanes (gold finger)
+12V	Max: 58A / Min: 0.5A (100Vac - 140Vac)
	Max: 62A / Min: 0.5A (200Vac - 240Vac)
+5Vsb	Max: 3A / Min: 0A
Power Distributor	-12V Max: 0.6
	O/P: 12V/54
	+5V Max: 25
	+3.3V Max: 25
	PDB-PT112-2420
Regulatory (Power Supply)
Power Supply Safety / EMC	CCC
	BSMI
	CE/EMC
	FCC class A
	UL/CUL
	UL/CB
Product SKUs
Product SKUs
Form Factor
Form Factor	1U chassis for motherboard support size of E-ATX 12"x13", 13.38"x 13.4". Optimized for WIO (W series) motherboards
Dimensions
Height	1.7" (43 mm)
Width	17.2" (437 mm)
Depth	23.5" (597 mm)
Gross Weight	40 lbs (18.14 kg)
Packaging (W x H x L)	24" (610 mm) x 8" (203 mm) x 32" (813 mm)
Available Color	Black
Expansion Slots
Expansion Slots	1 low-profile expansion slot(s)
	2 full-height & full-length expansion slot(s)
Drive Bays
Drive Bays	10 x 2.5" hot-swap SAS/SATA drive bay
Backplane
Backplane	10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
Systems Cooling
Fans	Optional 2 x fans for AOC cooling
	4 x 40x56mm counter-rotation PWM fan(s)
System Monitoring
System Monitoring	Chassis intrusion switch

Name	Part Number	Price	Add to Cart	Qty.	Description
	Rail	MCP-290-00056-0N	$ 70.50		0	Quick-release outer rail for square hole short-depth rack (19"~26.4")

Warranty:	3 years labor, 1 year parts, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
