| Main Specifications |
| Dimensions (WxDxH) | Height 7" (178mm) x Width 17.2" (437mm) x Depth 27.5" (699mm) |
| Color | Black |
| Form Factor | 4U chassis |
| Device Type | SuperChassis |
| Weight | 75 lb (34.02 kg) |
| Front Panel |
| Buttons | Power On/Off button, System Reset Button, Unit Identification (UID) button |
| LEDs | 1 Network Activity LEDs, Fan Fail/System Over Heat LED, Power Status LED, Power Fail LED, Unit Identification (UID) LED |
| System Cooling |
| Fans | FAN-0126L4 |
| 7x 8cm hot-swap redundant PWM cooling fans |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, Germany - TUV Certified, Europe/CE Mark, EN 60950/IEC 60950-Compliant |
| System Monitoring |
| System Monitoring | IPMI |
| SAS/SATA Backplane |
| SAS/SATA Backplane | E1C: Single SAS3 (12Gbps) expander backplane, E2C: Dual SAS3 (12Gbps) expanders backplane |
| Drive Bays |

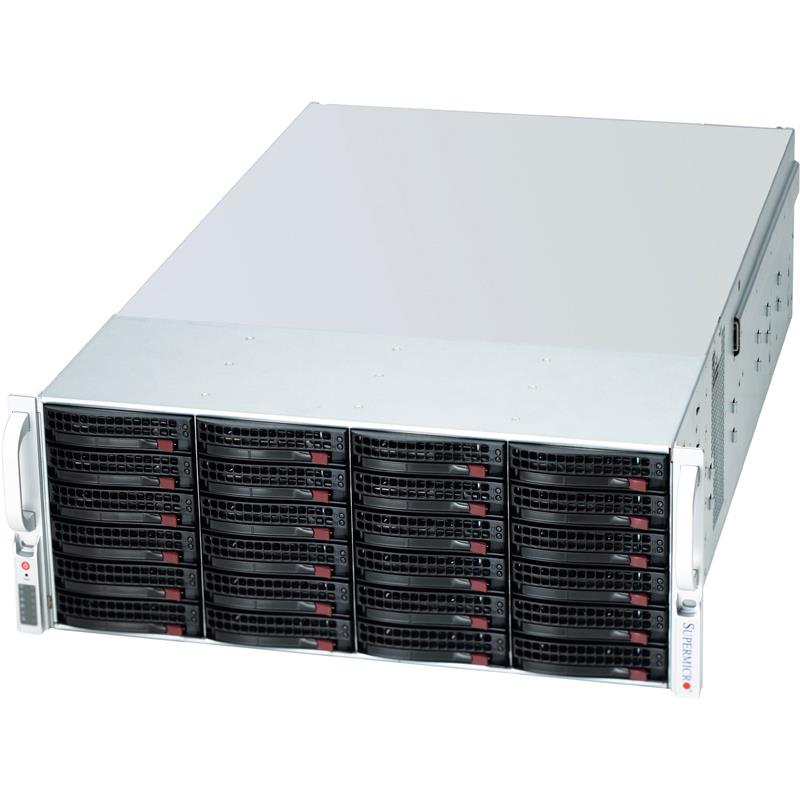

| Hot-swap | 44x 3.5" hot-swap HDD bays for JBOD solutions - SAS or enterprise SATA HDD only recommended |
| Operating Environment (System) |
| Operating Temperature Range | Operating Temperature Range 5C ~ 35C (41F ~ 95F) |
| Non-Operating Temperature Range -40C ~ 60C (-40F ~ 140F) |
| Operating Relative Humidity Range 8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range 5% - 95% (non-condensing) |
| Power Supply |
| Certification | 80PLUS Platinum Certified |
| Power Supply | 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2 |
| Power Supply: PWS-1K28P-SQ / Power Distributor: PDB-PT847-8824 |
| Parts List - (Items Included) |
| Backplane | BPN-SAS3-847EL1, BPN-SAS3-846EL1 |
| Cable(s) | CBL-CDAT-0601, CBL-NTWK-0587, CBL-SAST-0568, CBL-SAST-0593-01, CBL-0160L, CBL-0071L |
| Mounting Rails | MCP-290-00057-0N |
| Parts | MCP-280-84701-0N, CSE-PTJBOD-CB3-O-P, MCP-220-00075-0B |
| Standard Parts List |

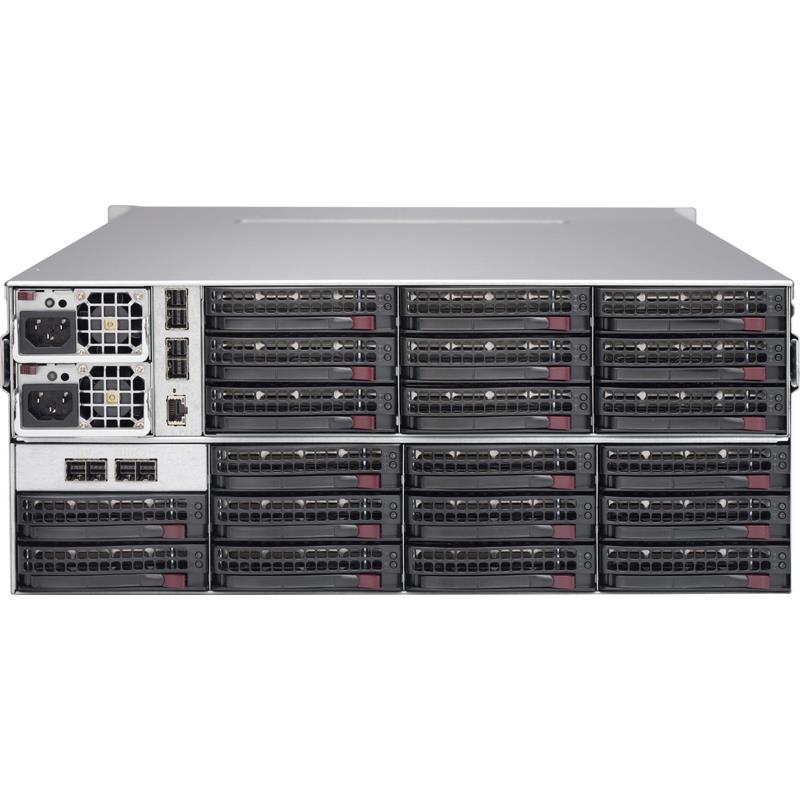

| Chassis | CSE-847E1C-R1K28JBOD |
