• Up to 2 full height expansion slots
• 440W Platinum level power supply
• Short depth resource optimized chassis
• Support STD & WIO MB E. ATX; Proprietary

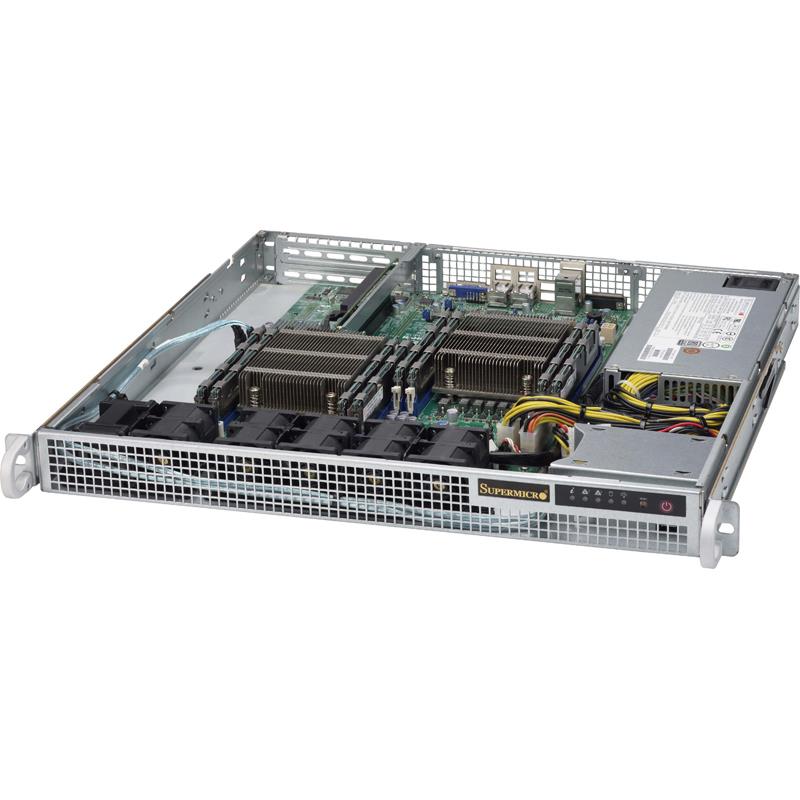

Rackmount 1U 440W/480W Power Supply 80 Plus Platinum, for Motherboard up to 12.3in x 13in maximum size - 2x 2.5in or 1x 3.5in internal Drive Bays, up to 2x Full-height AOC expansion slots, Mounting Rails Kit
• 2x 2.5 or 1x 3.5 Internal Drive Bays
• Short depth resource optimized chassis
• Up to 2x Full-height AOC expansion slot
• 440W/480W power supplies Platinum Level Certified
• 4x 40x56mm high-efficiency fans (2x more optional; 6x fans maximum)
| Main Specifications | ||
| Device Type | SuperChassis | |
| Dimensions (WxDxH) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 16.9" (429mm) | |
| Enclosure Color | No Paint | |
| Form Factor | 1U chassis for motherboard support size of E. ATX 10.3" x 13", Proprietary 8.15" x 13.05", Proprietary 12.3" x 13", | |
| Weight | 16 lb (7.26 kg) | |
| Processor Support | ||
| Processor Support | Supports dual, single Intel / AMD processors | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED | |
| Drive Bays | ||
| Internal | Up to 2x 2.5" fixed with bracket - SAS or enterprise SATA HDD only recommended | |
| System Cooling | ||
| Fans | 4x 40x56mm PWM fan, 2x fans for AOC cooling | |
| FAN-0156L4 | ||
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 2 full height expansion slot(s) | |
| Power Supply | ||
| Certification | 80PLUS Platinum Certified | |
| Power Supply | 440W/480W AC power supply with PFC | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, Germany - TUV Certified, Europe/CE Mark, EN 60950/IEC 60950-Compliant | |
| Operating Environment (System) | ||
| Operating Temperature Range | Operating Temperature Range 5C ~ 35C (41F ~ 95F) | |
| Non-Operating Temperature Range -40C ~ 60C (-40F ~ 140F) | ||
| Operating Relative Humidity Range 8% ~ 90% (non-condensing) | ||
| Non-Operating Relative Humidity Range 5% - 95% (non-condensing) | ||
| Parts List | ||
| Cables | CBL-0156L, CBL-0260L | |
| Standard Parts List | ||
| Chassis | CSE-514-441 | |
| Parts List - (Items Included) | ||
| Mounting Rails | MCP-290-00102-0N, MCP-290-00108-0N | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
