| Main Specifications |

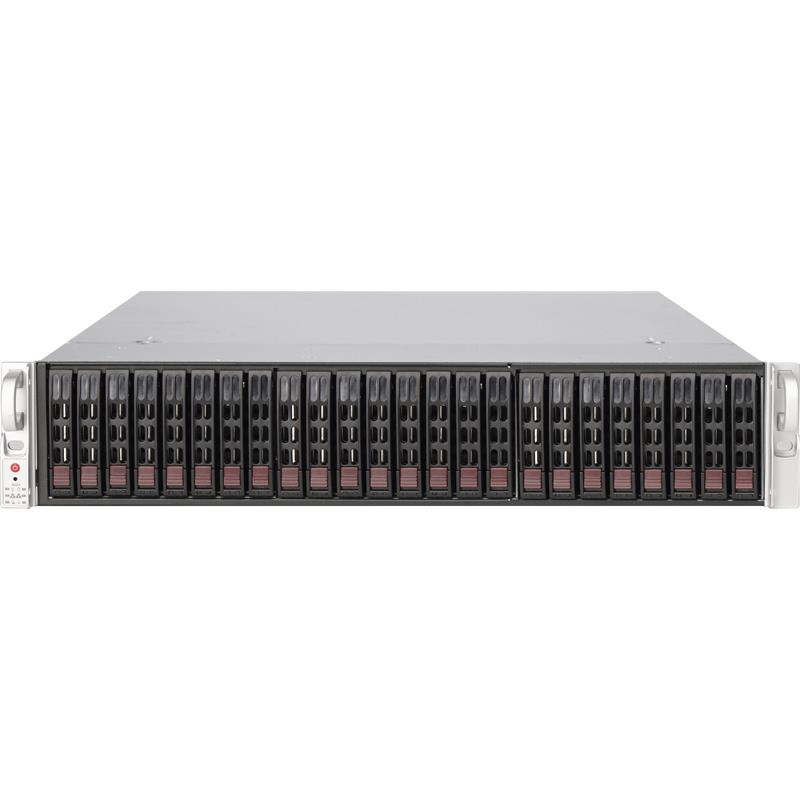

| Device Type | SuperChassis |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 24.8" (630 mm) |
| Color | Black |
| Form Factor | 2U chassis support for max. motherboard size - 13.68" x 13", E-ATX and ATX |
| Weight | Net Weight: 35 lbs (15.9kg) - Gross Weight: 57 lbs (25.9kg) |
| Processor Support |
| Processor Support | Supports dual, single Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | WIO Slots (4x Full-height, Full-length + 3x Low-profile) |
| Drive Bays |
| Hot-swap | 24x 2.5" Hot-swap SAS3/SATA drive bays and Optional 2x 2.5" Hot-swap SATA3 Drive Bays for OS mirroring - SAS or enterprise SATA HDD only recommended |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED, Power Fail LED |
| System Cooling |
| Fans | FAN-0126L4 |
| 3x 80mm 7000 RPM hot-swap PWM fans |
| Miscellaneous |
| Applications | Chassis Intrusion switch |
| SAS / SATA Backplane |
| SAS / SATA Backplane | SAS3 Dual Expander Backplane features: Up to 12Gbps support, In-band SES-2 Enclosure Management Support, SAS3/SATA3 support, 8x Mini-SAS HD connectors, Scalability through cascading, Redundancy support through SAS drive only |
| Operating Environment (System) |
| Humidity Range | 8% ~ 90% (non-condensing) |
| Non-Operating Temperature Range | -40C ~ 60C (-40F ~ 140F) |
| Operating Temperature Range | 5C ~ 35C (41F ~ 95F) |
| Environmental Parameters |
| Operating Humidity | 5 - 95% (non-condensing) |
| Power Supply |
| Certification | 80PLUS Platinum Certified |
| Power Supply | 920W high-efficiency AC-DC Redundant power supplies with PMBus and I2C |
| PWS-920P-SQ |
| Regulatory Safety / EMC | USA - UL listed, Canada - CUL listed, Germany - TUV Certified, EN 60950/IEC 60950-Compliant, CB Report, CCC Certification |
| Standard Parts List |
| Accessory | ACC216A-00-2B |
| Chassis | CSE-216BE26-R920WB |
| Front Panel | FP826-D, TB826 |
| Power Distributor | PDB-PT829-S8824 |
| Rear Window | MCP-240-82609-0N |
| Parts List - (Items Included) |
| Air Shroud | MCP-310-29001-0N |
| Backplane | BPN-SAS3-216EL2 |
| Drive Trays | MCP-220-00047-0B, MCP-290-82607-0N |
| Mounting Rails | MCP-410-00007-0N, MCP-290-00053-0N |
| Parts List |
| Cables | CBL-0217L, CBL-0071L, CBL-0088, CBL-0160L, CBL-0182L |
