Supermicro SYS-6028TP-DNCR Twin Barebone Dual CPU, 2-Node
Barebone Server 2U TwinPro with Two Systems (Nodes) - Per Node : Dual Intel Xeon E5-2600 v4/v3 sockets, up to 2TB DDR4 ECC 3DS LRDIMM up to 2400MHz in 16x 288-pin slots - On-Board (per Node) : LSI 3008 SAS3 12Gbps controller (RAID 0, 1, 10), IPMI 2.0, Intel i350-AM2 2x Gigabit Ethernet, VGA - Includes (per Node) : 6x 3.5in Hot-swap drive bays / Up to 4x NVMe + 2x SAS3 or 6x SAS3, 2x Heatsinks (2x SNK-P0048PS) - System includes : 1600W Redundant 80 Plus Titanium Power Supply (2x PWS-1K68A-1R), 2x MBD-X10DRT-P Motherboards, and 1x SC827HD+-R1K68B 2U Chasssis (Black)
This product is no longer available.

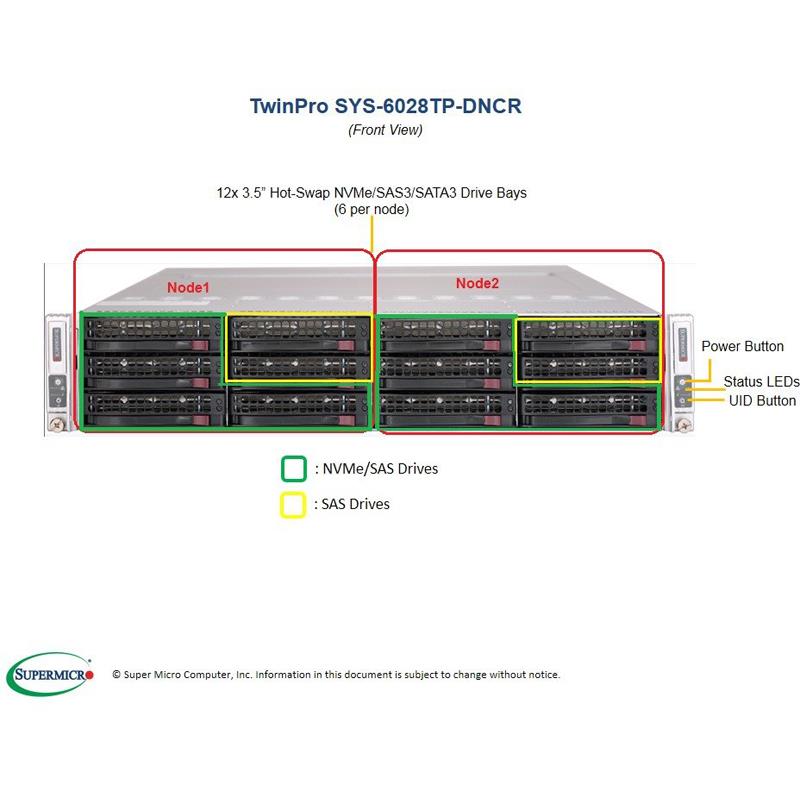

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16x DIMM slots
3. 1x PCI-E 3.0 x16, 1x PCI-E 3.0 x8 slots
4. Intel® i350 Dual port GbE LAN
5. Integrated IPMI 2.0 with KVM and Dedicated LAN
6. 6x 3.5" Hot-swap drive bays (Up to 4x NVMe + 2x SAS3 or 6x SAS3)
7. Broadcom 3008 SAS3 controller (8 ports); RAID 0, 1, 10
8. 1600W Redundant Power Supplies Titanium Level Digital (96%)
Extra Specifications for Supermicro SYS-6028TP-DNCR Twin Barebone Dual CPU, 2-Node
| Motherboard (Two per System) | ||
| Motherboard (Two per System) | Super X10DRT-P | |
| Processor/Cache (per Node) | ||
| CPU | Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | |
| Dual Socket R3 (LGA 2011) | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory (per Node) | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 512GB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | |
| LRDIMM: 64GB, 32GB | ||
| 3DS LRDIMM: 128GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices (per Node) | ||
| Chipset | Intel® C612 chipset | |
| SAS | Broadcom 3008 SAS3 (12Gbps) controller; RAID 0, 1, 10 support | |
| Note: In order to support NVMe drives, both CPU socket must be populated | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Intel® i350 Dual Port Gigabit Ethernet | |
| Virtual Machine Device Queues reduce I/O overhead | ||
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1x Realtek RTL8201N PHY (dedicated IPMI) | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output (per Node) | ||
| SAS | 6x SAS3 (12Gbps) ports | |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports | |
| 1x RJ45 Dedicated IPMI LAN port | ||
| USB | 2x USB 3.0 ports total (2x rear) | |
| VGA | 1x VGA port | |
| Serial Port / Header | 1x Fast UART 16550 port / 1 Header (internal) | |
| Others | 1x SATADOM support on the motherboard | |
| 1x mSATA (full size) and one SATADOM support on the daughter card | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-827HD+-R1K68B | |
| Dimensions and Weight | ||
| Width | 17.25" (438mm) | |
| Height | 3.47" (88mm) | |
| Depth | 30.5" (774mm) | |
| Weight | Gross Weight: 85 lbs (38.6kg) | |
| Net Weight: 66 lbs (29.9 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Power status LED | |
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| 2x Network activity LEDs | ||
| Expansion Slots (per Node) | ||
| PCI-Express | 1x PCI-E 3.0 x8 slot | |
| 1x PCI-E 3.0 x16 slot | ||
| Drive Bays (per Node) | ||
| Hot-swap | 6x 3.5" Hot-swap drive bays: Up to 4x NVMe + 2x SAS3 or 6x SAS3 Note: NVMe support requires 2 CPUs installed | |
| System Cooling | ||
| Fans | 4x 8cm heavy duty PWM fans with optimal fan speed control | |
| Power Supply (76mm Width) | ||
| Power Supply (76mm Width) | 1600W 1U Redundant Power Supplies with PMBus | |
| Total Output Power | 800W: 100 – 140Vac | |
| 1600W: 180 – 240Vac | ||
| Dimension (W x H x L) | 76 x 40.4 x 336 mm | |
| Input | 100-140Vac / 10-7A / 50-60Hz | |
| 180-240Vac / 11-8A / 50-60Hz | ||
| +12V | Max: 67A / Min: 0A (100-140Vac) | |
| Max: 133A / Min: 0A (180-240Vac) | ||
| +5Vsb | Max: 1A / Min: 0A | |
| Output Type | 27 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| UEFI | ||
| APM 1.2 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer 6028TP-DNCR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRT-P | 2 | Super X10DRT-P Motherboard | |
| Motherboard / Chassis | CSE-827HD+-R1K68B | 1 | 2U Chassis | |
| Air Shroud | MCP-310-82718-0B | 2 | 2U Twin air shroud for X9DRT-HF+ | |
| Backplane | BPN-SAS3-827HD2-N4 | 1 | 12-port 2U TwinPro SAS3 CSE-827HD (2 HDD + 4 HDD/NVMe per node) backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD and 8x NVMe/SAS3/SATA3 storage devices | |
| Backplane | BPN-ADP-8S3008N4-2UP | 2 | 2U adapter card for 2U TwinPro system; LSI3008 on board to provide 8x SAS3 ports, 4x NVMe ports, 1x mSATA port and 1x SATADOM port,HF,RoHS/REACH | |
| Cable 1 | CBL-PWCD-0578 | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Manual | MNL-1699-QRG | 1 | 6028TP-DNCR/DNCTR/DNCFR, QRG | |
| Heatsink / Retention | SNK-P0048PS | 4 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB | |
| Parts | MCP-240-82713-0N | 1 | TwinPro SC827HD+ BPN retention bracket assembly | |
| Power Supply | PWS-1K68A-1R | 2 | 1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Hot-swap 3.5" to 2.5" Hard Disk Drive Tray | MCP-220-00043-0N | $ 26.00 | 0 | Black Hot-swap gen 4 3.5" to 2.5" HDD tray | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 2 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 2 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
