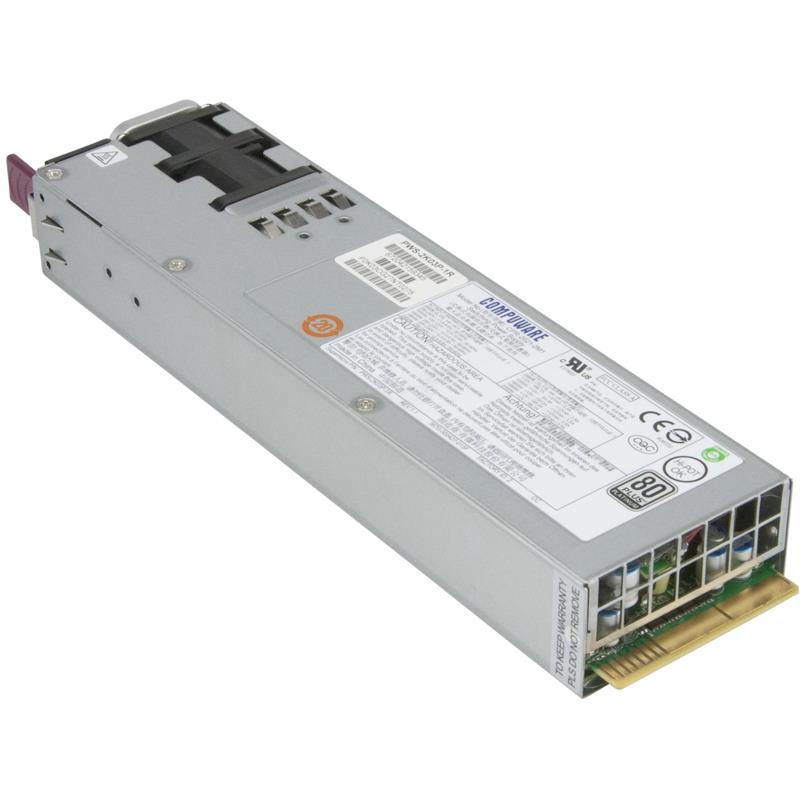

Supermicro PWS-2K03P-1R Power Supply 2000W Module w/ PFC
• 2000W 1U Power Supply
• 80 Platinum Level (94%+)
• Power Supply with PMBus
• 25 Pairs Gold Finger Connector
Power Supply 2000W Module w/ PFC, 80 Plus Platinum Level Certified - Model # CPR-2021-2M1
The Supermicro PWS-2K03P-1R is an 80 Plus Platinum power supply capable of supplying 2000W output power at 94% efficiency.
Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages.
Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems.
This power supply is designed to not only provide you reliable power to your Supermicro server but also protect it from over-voltage, over-current and short-circuiting via protective circuitry embedded into the unit.
Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 250,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU.
This power supply is redundant to safeguard your system from power failure and allows for hot-swap replacement to eliminate system downtime.
All materials contained comply with RoHS requirements and are certified by Supermicro.
Extra Specifications for Supermicro PWS-2K03P-1R Power Supply 2000W Module w/ PFC
| Main Specifications | ||
| Device Type | Power supply | |
| Type | Redundant | |
| Form Factor | 1U - Internal | |
| Dimensions (WxDxH) | 73.5 x 40 x 265 mm | |
| Output Type | Gold Finger (25 Pair Connector) | |
| Power Device | ||
| Power Provided | 1000W / 1800W / 1980W / 2000W | |
| Input Voltage | 100-120V / 200-220V / 220-230V / 230-240V | |
| Frequency Required | 50/60 Hz | |
| Output Voltage | +12V, 5V Standby | |
| 80 PLUS Certification | 80 Plus Platinum | |
| Power Efficiency | ||
| Energy Efficient | 94% Peak | |
| Miscellaneous | ||
| Compatible Servers | SYS-1028GQ-TR, SYS-1028GQ-TRT, SYS-2028GR-TR, SYS-2028GR-TRH, SYS-2028GR-TRHT, SYS-2028GR-TRT, SYS-2029GP-TR | |
| Features | Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages | |
| Compliant Standards | RoHS and REACH | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
