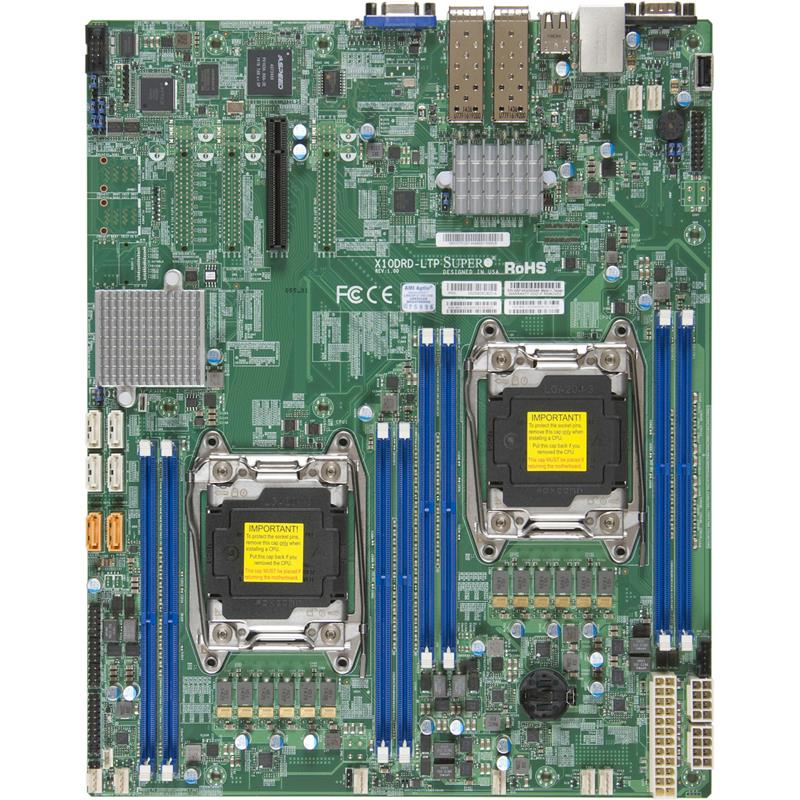

| Main Specifications |
| Device Type | Xeon Board |
| Dimensions (WxDxH) | 13.05" x 10.5" (33.1cm x 26.7cm) |
| Form Factor | E-ATX |
| Processor |
| Cache | Up to 22 Cores / Up to 55MB Cache |
| Compatible processor | Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP) |
| Compatible Socket | Dual Socket R3 (LGA 2011) |
| System Memory |
| DIMM Sizes | RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB |
| LRDIMM: 64GB, 32GB |
| 3DS LRDIMM: 128GB |
| Error Detection | Corrects single-bit errors |
| Memory Capacity | 8x 288-pin DDR4 DIMM slots |
| Up to 1TB ECC 3DS LRDIMM, 512GB ECC RDIMM |
| Memory Voltage | 1.2 V |
| Cache Memory |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| On-Board Devices |
| Chipset | Intel C612 Express chipset |
| Video | Aspeed AST2400 BMC |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead |
| 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Intel 82599ES Dual port 10G SFP+ |
| Supports 10G SFP+ |
| TPM | 1x TPM 1.2 20-pin Header |
| USB | 7x USB 2.0 ports total (4 rear, 2 via headers, 1 Type A) |
| Input / Output |
| SATA | 6x SATA3 (6Gbps) ports |
| SATA3 (6Gbps), RAID 0, 1, 5, 10 |
| DOM | 2 SuperDOM (Disk on Module) ports |
| LAN | 2x 10 Gigabit Ethernet SFP+ ports, 1x RJ45 Dedicated IPMI LAN port |
| Serial Port / Header | 2x COM ports (1 rear, 1 header) |
| VGA | 1x VGA Port |
| Chassis Optimized for |
| 1U Chassis | SC514-441, SC514-R400C |
| Important Chassis Notes | To support the new generation Intel Xeon processor-based motherboards, Revision M chassis is recommended |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1x PCI-E 3.0 x8 slot |
| System BIOS |
| BIOS Features | Plug and Play (PnP), PCI 2.3, ACPI 1.0 / 2.0 / 3.0 / 4.0, USB Keyboard support, SMBIOS 2.7.1, UEFI 2.3.1 |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| Management |
| Power Configurations | ACPI Power Management, Power-on mode for AC power recovery |
| Software | Intel Node Manager, IPMI 2.0, NMI, SuperDoctor 5, Watch Dog |
| Environmental Parameters |
| Operating Humidity | 5 - 95% (non-condensing) |
| Operating Temperature | 10C - 35C (50F - 95F) |
| Operating Environment (System) |
| Non-Operating Temperature Range | -40C - 70C (-40F - 158F) |
| Environmental |
| Operating Relative Humidity | 8% - 90% (non-condensing) |
| Parts List |
| Cables | CBL-0044L |
| 4x CBL-0044L |
| I/O Shield | 1x MCP-260-00096-0N |
| MCP-260-00087-0N, MCP-260-00042-0N |
| Motherboard | 1x MBD-X10DRD-LTP |
| Miscellaneous |
| Included Accessories | 1x MNL-1681-QRG |
| Compatibility | SYS-6018R-TDTP, SYS-6018R-TDTPR |
