- Supermicro X10DRL-C Motherboard ATX Intel C612 Chipset Dual Socket R3 LGA 2011 for Dual Intel Xeon E5-2600 v4/v3

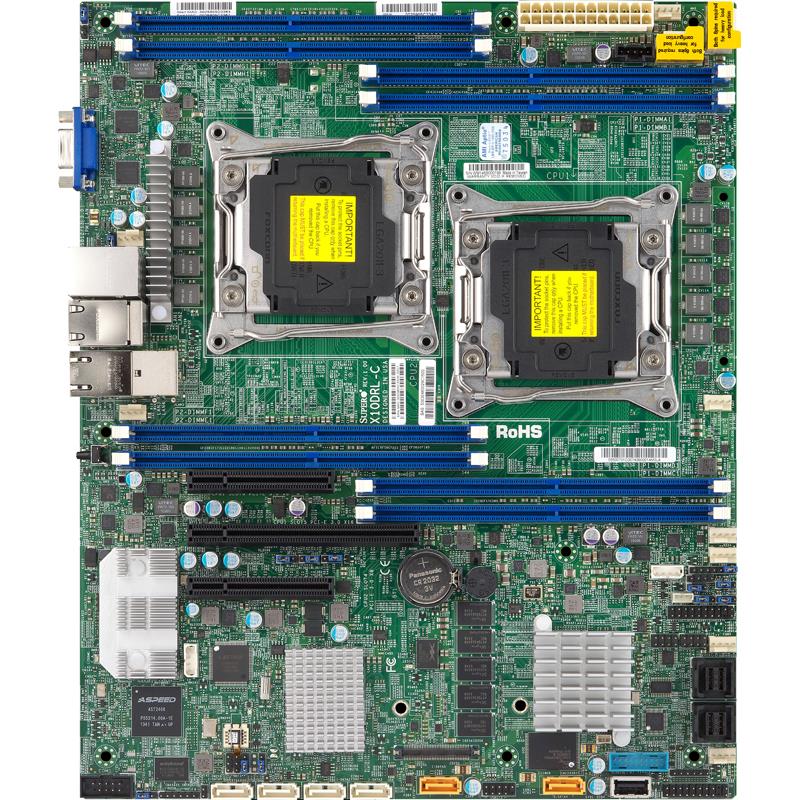

Supermicro X10DRL-C Motherboard ATX Intel C612 Chipset Dual Socket R3 LGA 2011 for Dual Intel Xeon E5-2600 v4/v3
Supports dual Intel Xeon E5-2600 v3/v4 processor
Includes Dual port GbE LAN, 1 Dedicated IPMI LAN port
Features Broadcom 3108 SAS3 (12Gbps) controller HW RAID
Handles up to 512GB ECC RDIMM DDR4 memory across 8 DIMM slots
Motherboard ATX Intel C612 Chipset Dual Socket R3 LGA 2011 for Dual Intel Xeon E5-2600 v4/v3 Family Processors, QPI up to 9.6GT/s - Supports up to 1TB DDR4 ECC 3DS LRDIMM up to 2400MHz in 8x 288-pin sockets - On-Board : LSI 3108 SAS3 12Gbps Controller 2GB cache with SuperCap backup option (HW RAID 0, 1, 5, 6, 10, 50, 60), AHCI SATA3 6Gbps (RAID 0, 1, 5, 10), SCU SATA3 6Gbps (RAID 0, 1, 5, 10), IPMI 2.0, Intel i210 2x Gigabit Ethernet Controller, VGA - MBD-X10DRL-C-O (Retail Box)
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; UPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots
4. 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x8
5. Intel® i210 Dual GbE LAN ports
6. Integrated IPMI 2.0 and KVM with Dedicated LAN
7. 8 SAS3 (12Gbps) via Broadcom® 3108; HW RAID 0, 1, 5, 6, 10, 50, 60 SuperCap Option support
8. 6 SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10
9. 4 USB 3.0 (2 rear, 2 via header) 3 USB 2.0 (2 via header, 1 Type A)
Extra Specifications for Supermicro X10DRL-C Motherboard ATX Intel C612 Chipset Dual Socket R3 LGA 2011 for Dual Intel Xeon E5-2600 v4/v3
| System Memory | ||
| DIMM Sizes | 3DS LRDIMM: 128GB | |
| LRDIMM: 32GB, 64GB | ||
| RDIMM: 4GB, 8GB, 16GB, 32GB | ||
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | 512GB ECC RDIMM, DDR4-2400MHz, in 8 DIMM slots | |
| Memory Voltage | 1.2V | |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| On-Board Devices | ||
| Chipset | Intel® C612 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Dual LAN with Intel® Ethernet Controller I210 Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) | |
| SAS | Broadcom 3108 SAS3 (12Gbps) controller; 2GB cache with SuperCap backup option; HW RAID 0, 1, 5, 6, 10, 50, 60 Supports up to 16 devices as default, more HDD devices support is also available as an option * For special SKU, please contact your Supermicro Sales. | |
| SATA | Broadcom® 3108 HW with 2G Cache controller for 8 SAS3 (12Gbs) ports; RAID 0,1,5,6,10,50,60 | |
| AHCI SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Graphics | Aspeed AST2400 BMC | |
| Input / Output | ||
| SATA | 6 SATA3 (6Gbps) port | |
| 1 I-SATA 4 and I-SATA 5 support SATA DOM | ||
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| Serial Port / Header | 1 COM Port (1 header) | |
| USB | 4 USB 3.0 ports (2 rear + 2 headers) | |
| 3 USB 2.0 ports (2 headers, 1 Type A) | ||
| Video Output | 1 VGA port | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| ACPI 3.0 / 4.0 | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Software | Intel® Node Manager, IPMI2.0, SPM, SUM, SuperDoctor® 5, Watchdog | |
| Product SKUs | ||
| Product SKUs | - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs. | |
| Physical Stats | ||
| Form Factor | ATX | |
| Dimensions | 12" x 10" (30.48cm x 25.4cm) | |
| Processor/Cache | ||
| CPU | Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. | |
| Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s | ||
| Cores / Cache | Up to 22 cores † / Up to 55MB† cache | |
| Note | † BIOS version 2.0 or above is required | |
| ** Motherboard supports this maximum TDP. Please verify your system can thermally support. | ||
| Expansion Slots | ||
| PCI-E | 1 PCI-E 3.0 x16 | |
| 2 PCI-E 3.0 x8, | ||
| PC Health Monitoring | ||
| Voltage | +12V, +3.3V, +5V, +5V standby, 5 Phase-switching voltage regulator, Memory, Memory Voltages, VBAT | |
| FAN | 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, PWM fan speed control, Status monitoring for speed control | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI | |
| LED | CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID | |
| Other Features | Chassis intrusion detection, Chassis intrusion header, RoHS | |
| Operating Environment | ||
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Heat Sink | -- | -- | CPU Heat Sink reference | |||
| TPM security module | AOM-TPM-9655V AOM-TPM-9655H | -- | TPM module with Infineon 9655, RoHS/REACH,PBF; | |||
| TPM security module (optional, not included) | AOM-TPM-9655V-S AOM-TPM-9655H-S | -- | TPM 1.2 module with Infineon 9655, RoHS/REACH, PBF; Vertical or Horiztonal depends on the server, provision for TXT | |||
| TPM security module (optional, not included) | AOM-TPM-9665V AOM-TPM-9665H | -- | TPM 2.0 module with Infineon 9665, RoHS/REACH, PBF; Vertical or Horizontal depends on the server | |||
| TPM security module (optional, not included) | AOM-TPM-9665V-S AOM-TPM-9665H-S | -- | TPM 2.0 module with Infineon 9665, RoHS/REACH, PBF; Vertical or Horizontal depends on the server, provisioned for TXT | |||
| SuperDOM | -- | -- | Supermicro SATA DOM Solutions [Details] | |||
| 1U I/O Shield | MCP-260-00061-0N | $ 20.00 | -- | 1U I/O Shield for X10DRL-CT with EMI Gasket | ||
| SuperCap | BTR-TFM8G-LSICVM02 | $ 278.00 | -- | SuperCap | ||
| SuperCap Bracket | MCP-240-00127-0N | $ 20.50 | -- | SuperCap bracket, include screw, same size as 2.5" HDD |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
