- Supermicro X10DRL-CT Motherboard S-2011 R3 Dual E5-2600 v3-v4

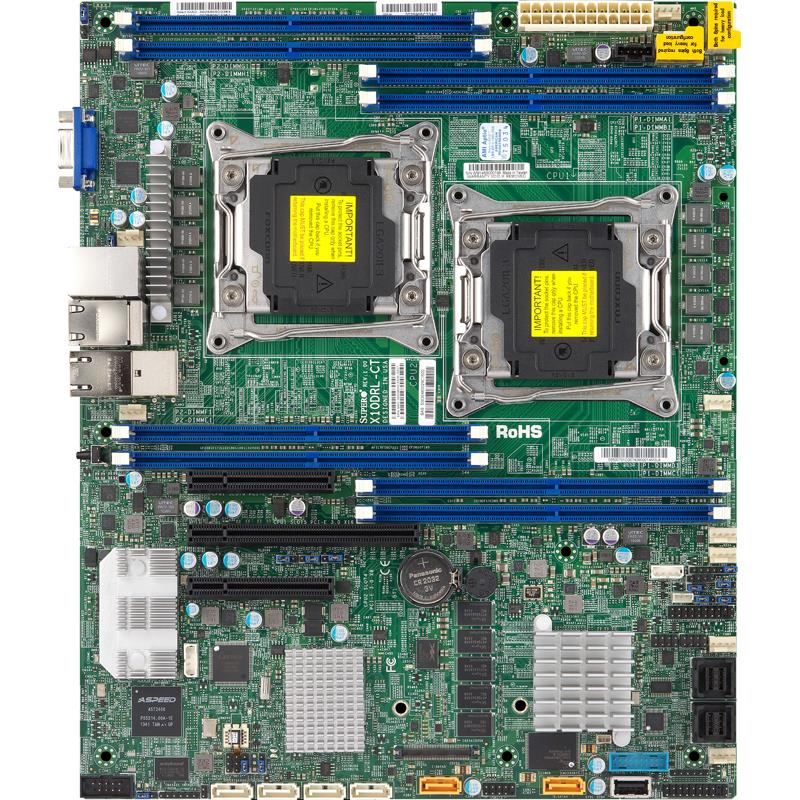

Supermicro X10DRL-CT Motherboard S-2011 R3 Dual E5-2600 v3-v4
Supports dual Intel Xeon E5-2600 v3/v4 processor
Features Broadcom 3108 SAS3 (12Gbps) controller HW RAID
Includes 2 RJ45 10GBase-T ports, 2 RJ45 Gigabit Ethernet LAN ports
Handles up to 512GB Registered RDIMM DDR4 memory across 8 DIMM slots
Motherboard ATX Intel C612 Chipset Dual Socket R3 LGA 2011 for Dual Intel Xeon E5-2600 v3/v4 Family Processors, QPI up to 9.6GT/s - Supports up to 512GB DDR4 ECC LRDIMM (or) up to 256GB DDR4 ECC RDIMM, up to 2133MHz (8x 288-pin DDR4 DIMM sockets) - On-Board : LSI 3108 SAS3 (12Gbps) Controller 2GB cache (HW RAID 0, 1, 5, 6, 10, 50, 60), AHCI SATA SATA3 (6Gbps) (RAID 0, 1, 5, 10), SCU SATA SATA3 (6Gbps) (RAID 0, 1, 5, 10), Integrated IPMI 2.0 and KVM with Dedicated LAN, Intel X540 2x 10GBase-T controller, Intel i210 2x Gigabit Ethernet Controller, ASPEED AST2400 BMC Video - MBD-X10DRL-CT-O (Retail Box)
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4†/ v3 family; UPI up to 9.6GT/s
2. Intel® C612 chipset
3. Up to 1TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 8x DIMM slots
4. 1x PCI-E 3.0 x16, 2x PCI-E 3.0 x8
5. Intel® i210 Dual GbE LAN ports; Intel® X540 Dual 10GBase-T ports
6. Integrated IPMI 2.0 and KVM with Dedicated LAN
7. 8x SAS3 (12Gbps) via Broadcom® 3108; HW RAID 0, 1, 5, 6, 10, 50, 60 SuperCap Option support
8. 6 SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10
9. 4 USB 3.0 (2 rear, 2 via header) 3 USB 2.0 (2 via header, 1 Type A)
Extra Specifications for Supermicro X10DRL-CT Motherboard S-2011 R3 Dual E5-2600 v3-v4
| System Memory | ||
| DIMM Sizes | 3DS LRDIMM: 128GB | |
| LRDIMM: 32GB, 64GB | ||
| RDIMM: 4GB, 8GB, 16GB, 32GB | ||
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | 512GB Registered ECC RDIMM, DDR4-2400MHzUp to 1TB 3DS ECC LRDIMM, DDR4-2400MHz, in 8 DIMM slots | |
| Memory Voltage | 1.2V | |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| On-Board Devices | ||
| Chipset | Intel® C612 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Dual LAN with Intel® Ethernet Controller I210 Dual LAN with Intel® X540 10GBase-T Ethernet Controller Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output Single LAN with Realtek RTL8211E PHY (dedicated IPMI) | |
| SAS | Broadcom 3108 SAS3 (12Gbps) controller; 2GB cache with SuperCap backup option; HW RAID 0, 1, 5, 6, 10, 50, 60 Supports up to 16 devices as default, more HDD devices support is also available as an option * For special SKU, please contact your Supermicro Sales. | |
| SATA | Intel® C612 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Broadcom® 3108 HW with 2G Cache controller for 8 SAS3 (12Gbs) ports; RAID 0,1,5,6,10,50,60 BBU option support, JBOD support (IT Mode) | ||
| AHCI SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Graphics | Aspeed AST2400 BMC | |
| Input / Output | ||
| SATA | 6 SATA3 (6Gbps) ports | |
| 1 I-SATA 4 and I-SATA 5 support SATA DOM | ||
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 2 RJ45 10GBase-T ports | ||
| 1 RJ45 Dedicated IPMI LAN port | ||
| Serial Port / Header | 1 COM Port (1 header) | |
| USB | 4 USB 3.0 ports (2 rear + 2 via headers) | |
| 3 USB 2.0 ports (2 via headers, 1 Type A) | ||
| Video Output | 1 VGA port | |
| TPM | 1 TPM Header | |
| Others | SuperCAP connector | |
| System BIOS | ||
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| ACPI 3.0 / 4.0 | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| Management | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| Software | Intel® Node Manager, IPMI2.0, SPM, SUM, SuperDoctor® 5, Watchdog | |
| Product SKUs | ||
| Product SKUs | - Discontinued SKU (EOL). Please contact sales-rep for replacement SKUs. | |
| Physical Stats | ||
| Form Factor | ATX | |
| Dimensions | 12" x 10" (30.48cm x 25.4cm) | |
| Processor/Cache | ||
| CPU | Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. | |
| Dual Socket LGA-2011-3 (Socket R3) supported, CPU TDP support Up to 145W TDP, 1 QPI up to 9.6GT/s | ||
| Cores / Cache | / Up to 55MB† cache | |
| Note | † BIOS version 2.0 or above is required | |
| ** Motherboard supports this maximum TDP. Please verify your system can thermally support. | ||
| Expansion Slots | ||
| PCI-E | 1 PCI-E 3.0 x16 | |
| 2 PCI-E 3.0 x8, | ||
| PC Health Monitoring | ||
| Voltage | +12V, +3.3V, +5V, +5V standby, 5 Phase-switching voltage regulator, Memory Voltages, Monitors CPU voltages, VBAT | |
| FAN | 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI | |
| LED | CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID | |
| Other Features | Chassis intrusion detection, Chassis intrusion header, Dual Cooling Zones, RoHS | |
| Operating Environment | ||
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Heat Sink (optional, not included) | -- | -- | CPU Heat Sink reference | |||
| TPM security module (optional, not included | AOM-TPM-9655V; AOM-TPM-9655H | -- | TPM 1.2 module with Infineon 9655, RoHS/REACH, PBF; Vertical or Horiztonal depends on the server | |||
| TPM security module (optional, not included | AOM-TPM-9655V-S AOM-TPM-9655H-S | -- | TPM 1.2 module with Infineon 9655, RoHS/REACH, PBF; Vertical or Horiztonal depends on the server, provision for TXT | |||
| TPM security module (optional, not included | AOM-TPM-9665V AOM-TPM-9665H | -- | TPM 2.0 module with Infineon 9665, RoHS/REACH, PBF; Vertical or Horizontal depends on the server | |||
| TPM security module (optional, not included | AOM-TPM-9665V-S AOM-TPM-9665H-S | -- | TPM 2.0 module with Infineon 9665, RoHS/REACH, PBF; Vertical or Horizontal depends on the server, provisioned for TXT | |||
| SuperDOM | -- | -- | Supermicro SATA DOM Solutions [Details] | |||
| 1U I/O Shield | MCP-260-00061-0N | $ 20.00 | -- | 1U I/O Shield for X10DRL-CT with EMI Gasket | ||
| SuperCap | BTR-TFM8G-LSICVM02 | $ 278.00 | -- | SuperCap | ||
| SuperCap Bracket | MCP-240-00127-0N | $ 20.50 | -- | SuperCap bracket, include screw, same size as 2.5" HDD |
