| Main Specifications |

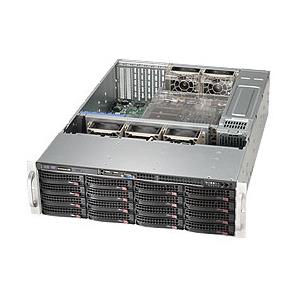

| Device Type | SuperChassis |
| Dimensions (WxDxH) | Height 5.2" (132 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) |
| Color | Black |
| Form Factor | 3U chassis for motherboard support size of 13.68" x 13" |
| Weight | 72 lb (32.66 kg) |
| Processor |
| Compatible Processors | Dual and Single Intel and AMD processors |
| Drive Bays |
| Hot-swap | 16x 3.5" hot-swap SAS/SATA drive bay with SES2 - SAS or enterprise SATA HDD only recommended |
| SAS / SATA Backplane |
| SAS / SATA Backplane | BPN-SAS3-836EL1 (SAS3 12Gb/s Single Expander backplane with 16 SAS3 3.5" drive slots connected through 4 mini-SAS3 HD cable connectors) |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | 2 Network Activity LEDs, HDD activity LED, Power Status LED, Power Fail LED, System Information LED |
| System Cooling |
| Fans | 2x 8cm hot-swap exhaust fans & air shroud |
| 3x 8cm hot-swap redundant PWM cooling fans |
| FAN-0118L4, FAN-0125L4 |
| Operating Environment (System) |
| Operating Temperature Range | Non-Operating Relative Humidity Range 5% - 95% (non-condensing) |
| Operating Temperature Range 5C - 35C (41F - 95F) |
| Non-Operating Temperature Range -40C - 70C (-40F - 158F) |
| Operating Relative Humidity Range 8% - 90% (non-condensing) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 7x full-height & full-length expansion slot(s) |
| Power Supply |
| Certification | 80PLUS Titanium Level |
| Power Supply | 1000W Titanium Level (96%) High-efficiency AC-DC Redundant power supplies with PMBus and I2C |
| PWS-1K03A-1R |
| Regulatory Safety / EMC | USA - UL listed, Canada - CUL listed, Germany - TUV Certified, EN 60950/IEC 60950-Compliant, CB Report, CCC Certification |
| Parts List - (Items Included) |
| Air Shroud | MCP-310-39001-0N |
| Backplane | BPN-SAS3-836EL1 |
| Mounting Rails | MCP-290-00053-0N, MCP-410-00007-0N |
| Parts List |
| Cables | CBL-0071L, CBL-0088L |
| Standard Parts List |
| Chassis | CSE-836BE1C-R1K03B |
| Drive Tray | MCP-220-00075-0B, MCP-220-00007-01, MCP-290-83605-0N |
| Part | ACC836-00-2B, MCP-290-00007-01, MCP-290-83601-0V |
| Power Distributor | PDB-PT826-8824 |
| Rear Window | MCP-240-83605-0N |
