- Supermicro SBI-7428R-T3N Blade Barebone Dual Processor

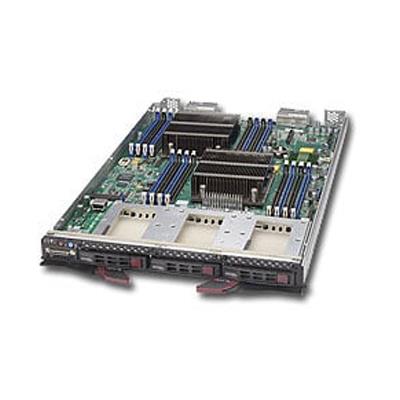

Supermicro SBI-7428R-T3N Blade Barebone Dual Processor
Processor Blade Intel C612 Chipset w/ 2x Socket R3 LGA 2011 for Dual Intel Xeon E5-2600 v3 family processors, QPI up to 9.6GT/s - Supports up to 256GB DDR4 VLP ECC RDIMM (16x 288-pin DDR4 DIMM sockets) - On-Board : Intel C612 PCH SATA Controller (RAID 0, 1), IPMI 2.0, KVM over IP, Virtual Media, Intel i350 2x Gigabit Ethernet, Aspeed AST2400 BMC Graphics - Includes : 3x 2.5in Hot-swap SATA HDD/SSD bays, 3x Hot-plug NVMe and SAS HDD supported via hybrid ports , 1x Front Connector for SMCI KVM Card, 2x SuperDOM (Disk on Module) ports, 1x TPM 1.2 20-pin Header, 1x B10DRI-N Motherboard, 1x CSE-714M-230B Chassis (Black)
This product is no longer available.
1. 168 CPUs per 42U Rack
2. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
3. Intel® C612 Express chipset
4. Up to 512GB ECC VLP RDIMM; 16 DIMM
5. Intel® i350 Dual port Gigabit Ethernet
6. IPMI 2.0, KVM over IP, Virtual Media
7. 3x 2.5" Hot-swap HDD/SSD Bays; 3x Hybrid ports support Hot-plug NVMe/SAS HDD
8. Graphics: Aspeed AST2400 BMC
Extra Specifications for Supermicro SBI-7428R-T3N Blade Barebone Dual Processor
| System Memory | ||
| DIMM Sizes | VLP RDIMM: 32GB, 16GB, 8GB | |
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 512GB VLP ECC RDIMM | ||
| Memory Voltage | 1.2 V | |
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| System Memory | NOTE: 14-Blade can only use VLP (Very Low Profile) memory module. | |
| On-Board Devices | ||
| Chipset | Intel® C612 Express chipset | |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
| Network Controllers | VMDq support for better performance of virtualization | |
| Intel® I/OAT 3 support for fast, scaleable, and reliable networking | ||
| Intel® I350 Dual port Gigabit Ethernet | ||
| SATA | Intel C612 PCH SATA Controller | |
| RAID 0, 1 | ||
| Graphics | Aspeed AST2400 BMC | |
| Input / Output | ||
| DOM | 2x Super DOM (Disk on Module) ports | |
| KVM | 1x Front Connector for SMCI KVM Card | |
| TPM | 1x TPM 1.2 20-pin Header | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| KVM button | ||
| Connector | SUV (Serial/USB/Video) & KVM Connector | |
| LEDs | Power LED | |
| UID / KVM LED | ||
| Network Activity LED | ||
| Fault LED | ||
| System BIOS | ||
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| ACPI up to 3.0 | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI® BIOS | |
| Drive Bays | ||
| Hot-swap | 3x Hot-plug NVMe and SAS HDD supported via hybrid ports | |
| 3x 2.5" Hot-swap SATA HDD/SSD bays | ||
| Electromagnetic Compatibility (EMC) | ||
| Europe | EN55022 - Emissions | |
| EN55024 - Immunity | ||
| EN61000-3-2 - Harmonics | ||
| EN61000-3-3 - Voltage Flicker | ||
| CE - EMC Directive 89/336/EEC | ||
| United States / Canada | FCC- Emissions (US) Verification | |
| Safety Compliance | ||
| Germany | TUV | |
| United States / Canada | UL60950-1 - CSA/CUL 60950-1 | |
| Europe | EN60950-1, CE - Low Voltage Directive 73/23/EEE | |
| Product SKUs | ||
| Product SKUs | ||
| Motherboard | ||
| Motherboard | Super B10DRi-N | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| Dimensions | ||
| Height | 11.32" (288 mm) | |
| Width | 1.19" (30.2 mm) | |
| Depth | 18.9" (480mm) | |
| Weight | 8.6 lbs (3.9 kg) | |
| Available Colors | Black | |
| Operating Environment / Compliance | ||
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Operating Temperature: 10°to 35°C (50°to 95°F) | ||
| Non-operating Temperature: -40°to 70°C (-40°to 158°F) | ||
| Non-operating Relative Humidity: 5 to 95% (non-condensing) | ||
| Thermal Limitation | ||
| Note | SuperBlade full enclosure with four 1620W power supplies will have thermal limitation of 30°C ambient temperature. | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module(optional, not included) | AOM-TPM-9655H | $ 43.00 | 0 | TPM module (Horizontal) with Infineon 9655, RoHS/REACH,PBF | ||
| SuperDOM | - | 0 | Supermicro SATA DOM Solutions [Details] | |||
| Heatsink / Retention | SNK-P1033P | $ 38.50 | 2 | Heatsink for Intel CPU | ||
| Networking | AOC-IBH-X3QD | 1 | Dual Port, Low Latency InfiniBand Adapter Cards For SuperBlade | |||
| Networking | AOC-IBH-X3QS | 1 | Single Port, Low Latency InfiniBand Adapter Cards For SuperBlade | |||
| Networking | AOC-XEH-iN2 | 1 | Dual Port 10G Ethernet AOC for Blade | |||
| Networking | AOC-IBH-XDD | 1 | InfiniBand Dual-Port 4x DDR 20Gbps Mezzanine HCA (Mellanox ConnectX chip) | |||
| Networking | AOC-IBH-XQD | 1 | InfiniBand Dual-Port 4x QDR 40Gbps Mezzanine HCA (Mellanox ConnectX-2 chip) | |||
| Networking | AOC-IBH-XQS | $ 609.50 | 1 | InfiniBand Single port 4x QDR 40Gbps Mezzanine HCA (Mellanox ConnectX chip) | ||
| Networking | AOC-IBH-XDS | $ 495.50 | 1 | InfiniBand Single port 4x DDR 20Gbps Mezzanine HCA (Mellanox ConnectX chip) | ||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
