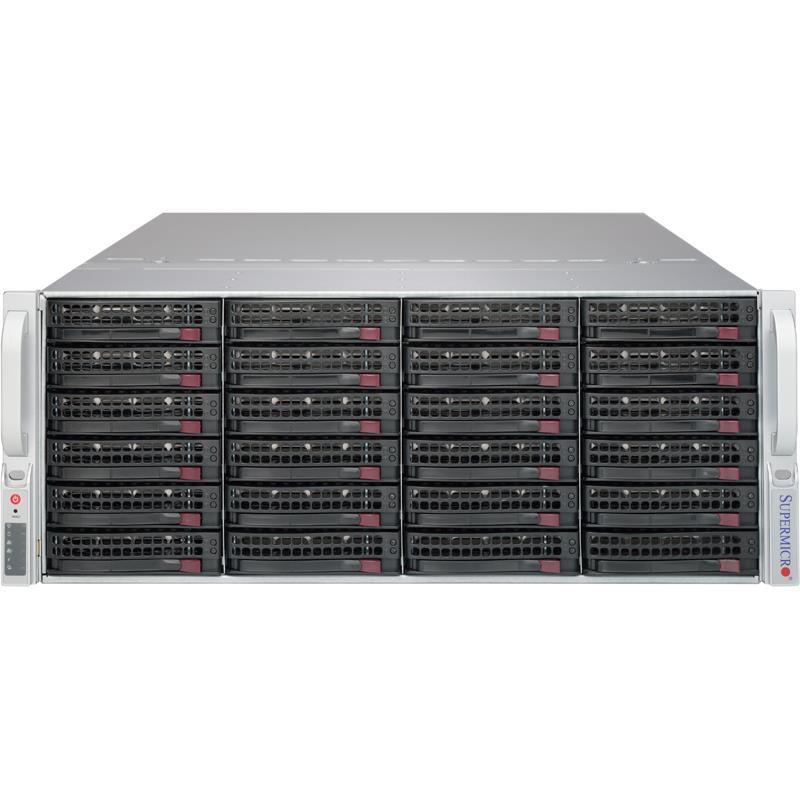

Supermicro SYS-8048B-TRFT 4U Barebone Quad Intel Processor

• Up to 96 CPU cores per system
• Up to 6TB in 96 memory DIMMs
• Independent power and cooling controls
• Up to 24 SAS 2.0 (6Gbps) 3.5” drive bays

Server Barebone 4U for Quad Intel Xeon processor E7-8800/4800 v3/v4 -Supports up to 6TB DDR3 memory (96x 288-pin DIMM slots) - On-Board : SATA2 (3Gb/s), SATA3 (6Gb/s), IPMI 2.0, 2x 10Gbase-T LAN, VGA - Includes : 24x 3.5in Drive Bays, 4x 1620W Redundant Power Supply, 4x Heatsinks, X10QBi Motherboard, CSE-848XA-R3240B 4U Chassis (Black) Price and weight shown are for basic unit; Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact us to receive a quote for this server.


    5,752.00 5,752.00 5752.0 USD

    5,752.00

    Option not available

    FREE SHIPPING

    This combination does not exist.

    Add to Cart


    • Up to 11x PCI-E 3.0 slots (4 x16, 7 x8)
    • 1620W Redundant (2+2) Power Supplies, Platinum Level (95%+)
    • 24x 3.5 Hot-swap SAS2/SATA3 HDD
    • Up to 6TB DDR3 1600MHz ECC RDIMMs and LRDIMMs; 96x DIMM slots
    • 4x 92mm Hot-swap cooling fans, 3x 80mm Hot-swap rear exhaust fans, 2x 80mm rear exhaust fans (option), 1x air shroud (MCP-310-41804-0B)
    • Quad socket R1 (LGA 2011) supports Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)

    Extra Specifications for Supermicro SYS-8048B-TRFT 4U Barebone Quad Intel Processor

    Main Specifications
    Built-in Devices X10QBi
    Dimensions (WxDxH) Height 7.0" (178mm) x Width 17.2" (437mm) x Depth 32.1" (815mm)
    Enclosure Color Black
    Form Factor 4U Rackmountable - Rackmount Kit: Comes with the system
    Type Completely assembled systems
    Weight Net Weight: 74.5 lbs (33.79 kg) - Gross Weight: 115 lbs (52.16 kg)
    Processor
    Cache Up to 60 MB
    Compatible processor Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24 Cores and 165W TDP)
    Compatible Socket Quad Socket R1 (LGA 2011)
    QPI QPI up to 9.6 GT/s
    System Memory
    DIMM Sizes 64GB, 32GB, 16GB, 8GB, 4GB
    Error Detection Corrects single-bit errors, Detects double-bit errors (using ECC memory)
    Memory Capacity 96x 240-pin DDR3 DIMM slots
      Supports up to 6TB DDR3 ECC Registered memory (RDIMM) and LRDIMM in 96 DIMM slots
    Memory Type 1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
    Memory Voltage 1.5 V, 1.35 V
    On-Board Devices
    Chipset Intel® C602J chipset
    Graphics ASPEED 2400
    IPMI Support for Intelligent Platform Management Interface v.2.0
      IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
      ASPEED 2400
    Network Controllers Intel® X540 Dual Port 10GBase-T
      Virtual Machine Device Queues reduce I/O overhead
      Supports 10GBase-T , 100BASE-TX, and 1000BASE-T, RJ45 output
      1x Realtek RTL8201N PHY (dedicated IPMI)
    SATA SATA2 (3Gbps) with RAID 0, 1, 5, 10 - SATA3 (6Gbps) with RAID 0, 1
    Super I/O Nuvoton W83527HG
    Input / Output
    DOM 1 DOM (Disk on Module) power connector
    LAN 2x RJ45 10GBase-T ports on AOM, 1x dedicated LAN port for IPMI on AOM
    SATA 2x SATA3 (6Gbps) ports, 4x SATA2 (3Gbps) ports
    Serial Port / Header 2x Fast UART 16550 ports: 1 rear and 1 header
    USB 2x USB 2.0 ports
    System BIOS
    BIOS Features Plug and Play (PnP), PCI 2.2, ACPI up to 3.0, USB Keyboard support
    BIOS Type 16MB SPI Flash EEPROM with AMI® BIOS
    Expansion / Connectivity
    Expansion Slots Total (Free) 11x PCI-E 3.0 slots - (4x PCI-E 3.0 x16 and 7x PCI-E 3.0 x8)
    Drive Bays
    Hot-swap BPN-SAS-846A direct attached backplane, system supports up to 24 HDDs by using selected RAID/HBA card and default HDD connection is onboard C602J chipset 2 SATA3 + 4 SATA2
      24x 3.5" Hard drive bays
    SAS / SATA Backplane
    SAS / SATA Backplane SAS/SATA HDD Backplane
    System Cooling
    Air Shroud 1x Air Shroud (MCP-310-41804-0B)
    Fans 4x 92mm RPM Hot-Swappable Cooling Fans
      3x 80mm RPM Hot-Swappable Rear Exhaust Fans
      2x 80mm Rear Exhaust Fans (optional)
    Power Supply
    Certification 80PLUS Platinum Certified
    Power Supply 1620W high-efficiency redundant power supply w/ PMBus
    Operating Environment / Compliance
    RoHS RoHS Compliant
    Environmental Parameters
    Operating Temperature Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
      Operating Temperature: 10°C to 35°C (50°F to 95°F)
      Operating Relative Humidity: 8% to 90% (non-condensing)
      Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Parts List - (Items Included)
    Add-on Module (Proprietary) 1x AOM-X10QBI-A
    Air Shroud 1x MCP-310-41804-0B
    Backplane 1x BPN-SAS-846A
    Cable(s) 2x CBL-0294L-01
    Heatsink / Retention 4x SNK-P0048PS
    Label 1x LBL-0108
    Memory Module 8x X10QBi-MEM1
    Motherboard / Chassis 1x X10QBi / 1x CSE-848XA-R3240B
    Power Supply 4x PWS-1K62P-1R
